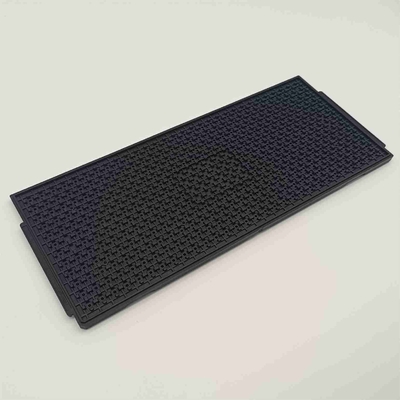

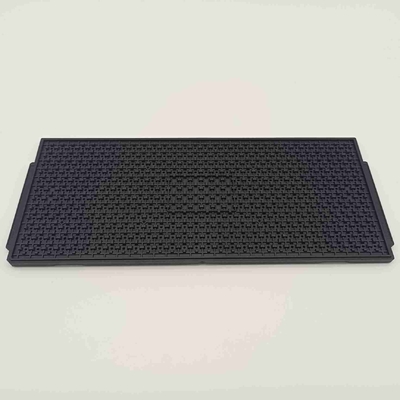

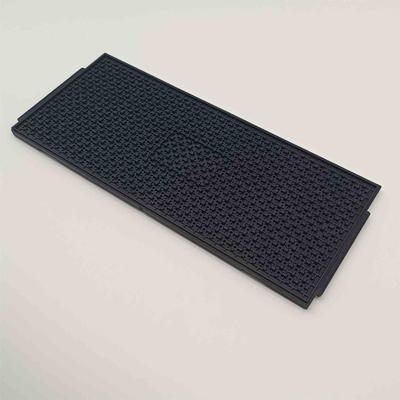

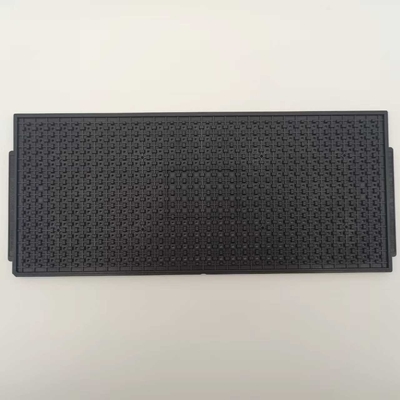

12x30 Matrix Black MPPO JEDEC Trays For Electronic Parts

12x30 Matrix Black MPPO JEDEC Trays For Electronic Parts
12x30 Matrix Black MPPO JEDEC Trays For Electronic Parts 12x30 Matrix Black MPPO JEDEC Trays For Electronic Parts 12x30 Matrix Black MPPO JEDEC Trays For Electronic Parts 12x30 Matrix Black MPPO JEDEC Trays For Electronic Parts

Large Image :  12x30 Matrix Black MPPO JEDEC Trays For Electronic Parts

Product Details:
Place of Origin: Shenzhen China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN21116
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: $1.35~$2.38(Prices are determined according to different incoterms and quantities)
Packaging Details: 80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 2500PCS~3000PCS/per day

12x30 Matrix Black MPPO JEDEC Trays For Electronic Parts

Material: MPPO Color: Black
Temperature: 150°C Property: ESD
Surface Resistance: 1.0x10E4~1.0x10E11Ω Flatness: Less Than 0.76mm
Clean Class: General And Ultrasonic Cleaning Incoterms: EXW,FOB,CIF,DDU,DDP
Customized Service: Support Standard And Non-standard,precision Machining Injection Mold: Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.)
High Light:

Matrix JEDEC Trays


Electronic Parts JEDEC Trays


Jedec Matrix Trays 0.76mm

12*30 Matrix Black MPPO JEDEC Trays for Electronic Parts

The "JEDEC tray" (Joint Electron Device Engineering Council) is a common name for a standardized tray form-factor used to securely hold and transport electronic components. The trays have different matrix designs depending on the size of the loaded product. The matrix is made up of multiple matrix pockets and Spacing between matrix pockets is determined by the component size.


The trays are generally injection-molded to support high-quantity and quick manufacture.Because of the particularity of this kind of plastic products, this kind of tray can not only be reused many times, but also can meet the degradation requirements of waste materials after damage. The product is completely harmless to nature after degradation and has no impact on customer products and the environment.


Details of the HN21116 JEDEC Tray

The main material of HN21106 tray is MPPO, which is a material with good stability and heat resistance. The product not only has good thermal stability to avoid high temperature cracking phenomenon, but also fully comply with ROHS environmental standards. Raw materials can be recycled and easily degrade after waste.


Compared with ordinary products, our trays are small in size and light in weight. The matrix design of 12*30 can hold more products and reduce the transportation cost of customers.At the same time, we can also provide a variety of customized service according to your chip products. The custom trays are not only suitable for storing integrated circuit products, but also better for protecting electronic devices in different environments.

Outline Line Size 322.6*135.9*7.62mm Brand Hiner-pack
Model HN21116 Package Type Die
Cavity Size 5.3*5.3*2.76 Matrix QTY 12*30=360PCS
Material MPPO Flatness MAX 0.76mm
Color Black Place of origin CHINA
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS


Application of the HN21116 Matrix Tray

Test and Measurement Technology                   Mechanical and electrical equipment


Power supply                                                     Sensor

Material Bake Temperature Surface Resistance
PPE Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Powder Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Glass Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
PEI+Carbon Fiber Max 180°C 1.0*10E4Ω~1.0*10E11Ω
IDP Color 85°C 1.0*10E6Ω~1.0*10E10Ω
Color, temperature and other special requirements can be customized




1.Flexible OEM service: we can produce products according to customer’s sample or design.

2.Various Materials: the material can be MPPO.PPE.ABS.PEI.IDP...etc.

3.Complicated workmanship: tooling making, Injection molding,Production

4.Comprehensive customer service: from customer consultation to after sales service.

5.10 years experience of OEM for USA and EU customers.

6.We have our own factory and can control quality in high level and produce products quickly and flexibly.

12x30 Matrix Black MPPO JEDEC Trays For Electronic Parts 0


Q1: Are you a manufacturer?
Ans:Yes, We have ISO 9000 Quality Management System.
Q2: What information should we supply if we want a quotation?
Ans: Drawing of your IC or component, Quantity and size normally.

Q3: How long you could prepare samples?
Ans:Normally 3 days. If customized one, open new mold 25~30days around.
Q4: How about batch order production?
Ans: Normally 5-8 days or so.
Q5:Do you inspect the finished products?
Ans:Yes, We will do inspection according to ISO 9000 standard and ruled by our QC staff.

12x30 Matrix Black MPPO JEDEC Trays For Electronic Parts 1
