Product Details:
|
| Material: | PPE | Color: | Black |
|---|---|---|---|
| Temperature: | 150°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | 0.76mm JEDEC Tray,Electronic Component JEDEC Tray,Water Resistant Jedec Matrix Trays |
||

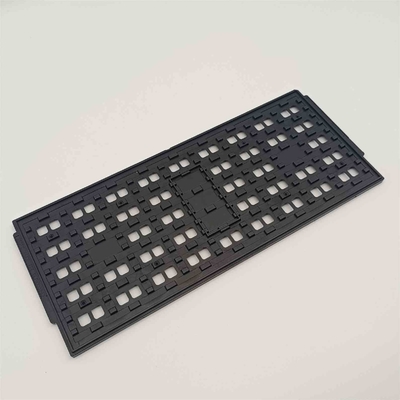

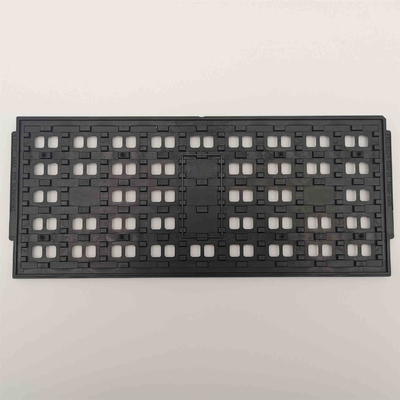

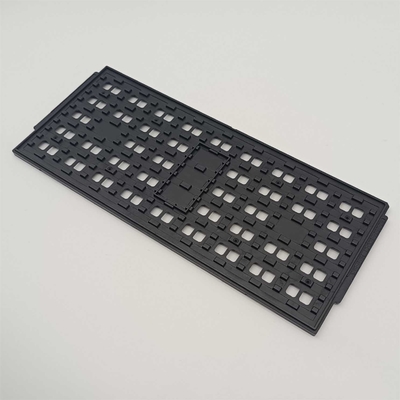

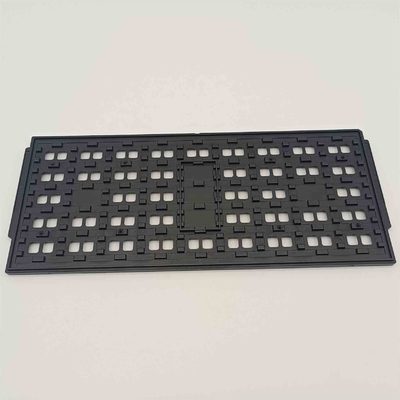

Customized Black ESD PPE JEDEC Tray For Electronic Component
Hiner-pack can provide specialized customization service, which means the specific service corresponding to your products size and specifications. From length, width, and height to tolerance, each step is designed according to the outer dimensions and special part.The designed tray can be fully loaded with the chip or electronic components provided by you to ensure the smooth loading and storage in the process of use.
Details of the HN21119 JEDEC Tray
The main material of HN21119 JEDEC tray is PPE. It is a kind of material with good electrical insulation, excellent water resistance and strong stability. The products made of this material are durable and do not pollute the environment. Customers do not have to worry about environmental pollution after abandonment.
This matrix tray is primarily used to automate testing and assembly processes. It is designed to be 45-degrees chamfer angle which provides an intuitive indication of the IC chip pin orientation. This design prevent error stacking and reduce the possibility of worker error to maximizing chip protection.
| Outline Line Size | 322.6*135.9*7.62mm | Brand | Hiner-pack |
| Model | HN21119 | Package Type | Die |
| Cavity Size | 17.16*26.79*4.03 | Matrix QTY | 5*9=45PCS |
| Material | PPE | Flatness | MAX 0.76mm |
| Color | Black | Place of origin | CHINA |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
Our Service of the HN21116 JEDEC Matrix Tray
1. We have sample stock, also can help the client to choose which type is suitable for them.
2. We will reply you in any time if you have questions.
3. Choose suitable product for clients according to clients' requirement.
4. After mold customization, free samples will be provided until the customer tests OK, so as to remove the mass production quality concerns of customers before quantity.
| Material | Bake Temperature |
| PPE | Bake 125°C~Max 150°C |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C |
| PEI+Carbon Fiber | Max 180°C |
| IDP Color | 85°C |
| Color, temperature and other special requirements can be customized | |
| Material | Bake Temperature |
| PPE | Bake 125°C~Max 150°C |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C |
FAQ
1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whats app, in case of any delays.
2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.
3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
