Product Details:
|
| Material: | ABS | Color: | Black |
|---|---|---|---|
| Matrix QTY: | 10*20=200PCS | Place Of Origin: | CHINA |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Clean Class: | General And Ultrasonic Cleaning |
| Injection Mold: | Lead Time 20~25Days,Mold Life Span: 30~450,000 Times | Molding Method: | Injection Moulding |
| Highlight: | ABS Waffle Pack Chip Tray,2 Inch Waffle Pack Chip Tray,Tiny Waffle Pack Chip Trays |
||
The Waffle pack is an ideal tray for storing and transporting tiny electronic components because of its permanent anti-static properties. At the same time, it also has good mechanical strength and heat resistance, which will not be affected by the environment, time and temperature.
Because the product is prone to friction during storage and transportation, the ABS chip tray can effectively release the static charge accumulated on the surface of the object. If the packaging does not have anti-static properties, the product quality may be affected during transportation and even been damaged.

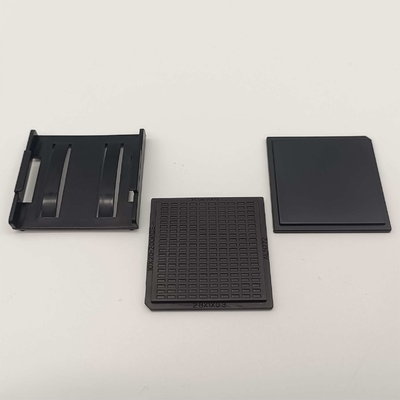

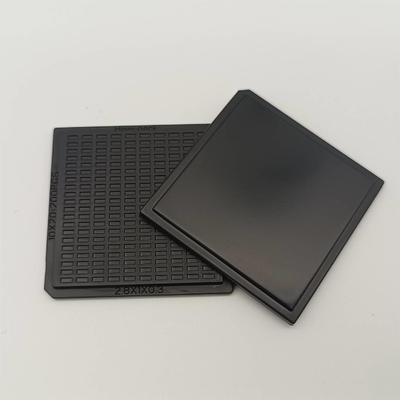

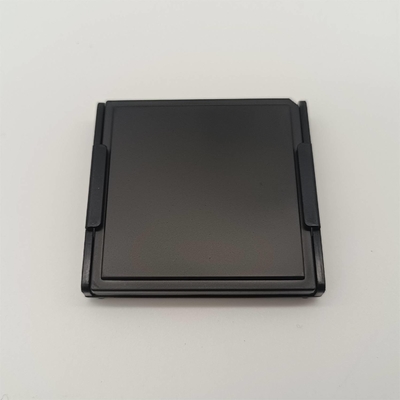

Details about The HN21118 Waffle Pack
The HN21118 waffle pack is tray made of industrial plastic ABS. It has a variety of excellent properties, such as good dimensional stability, heat resistance, low temperature resistance and excellent anti-static electrical properties. In addition, the resistance to chemical corrosion is also very strong, which makes it a very widely used industrial plastics.
The waffle pack is small in size,light in weight, suitable for transferring or loading, samples for testing. The matrix 10*20 can hold more products and saves the transportation cost.It is the best choice for customers to transport and store their products.
| Outline Line Size | 50.7*50.7*4mm | Brand | Hiner-pack |
| Model | HN21118 | Package Type | Die |

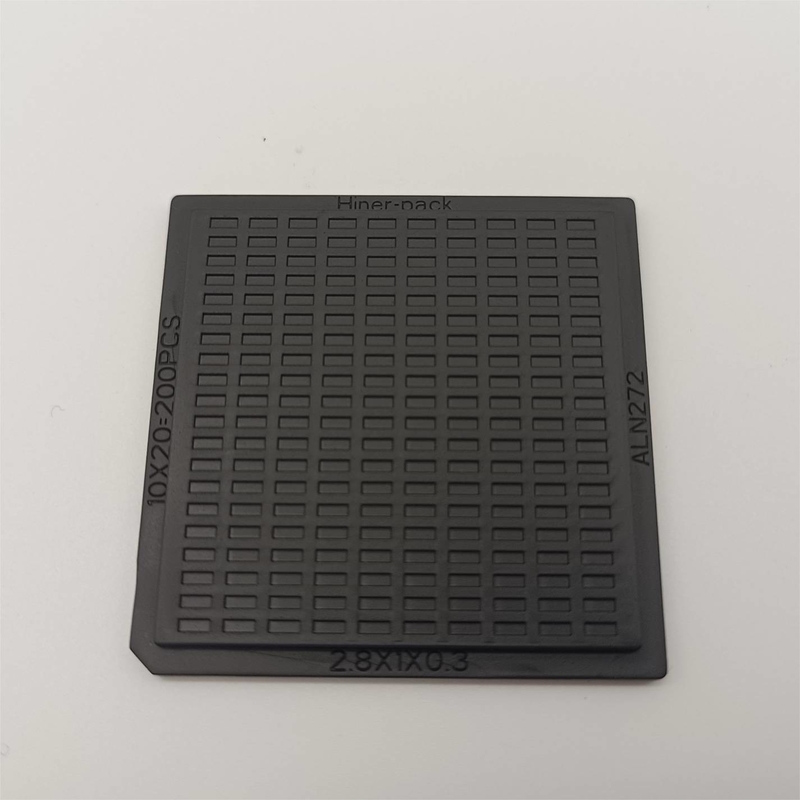

| Cavity Size | 2.8*1.0*0.3 | Matrix QTY | 10*20=200PCS |
| Material | ABS | Flatness | MAX 0.2mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
Application of the HN21118 Black 2 inch Chip Tray
Electronic Components Semiconductor
Embedded System Micro and Anon System
| Outline Size | Material | Surface Resistance | Service | Flatness | Color |
| 2" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.2mm | Customizable |
| 3" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.25mm | Customizable |
| 4" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.3mm | Customizable |
| Custom size | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | TBC | Customizable |
| Provide professional design and packaging for your products | |||||
Advantages
1. Light weight, saving transportation and packaging costs;
2. Size specification, compatible in any 2 ", 3 "or 4" Waffle Pack Feeder Machine;
3. Good anti-static performance, effectively ensure that the product is not damaged by anti-static release;
4. High temperature resistance, suitable for high temperature automation equipment assembly;
5. Corrosion resistance, suitable for all kinds of production conditions of products;
6. Matrix arrangement design, under the premise of protecting the product, the maximum capacity design, cost saving;
7. Edge chamfer design, effectively prevent stacking error, correct the direction of placement.
FAQ
1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whats app, in case of any delays.
2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.
3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
