Black PC Waffle Pack Chip Tray General And Ultrasonic Cleaning

Black PC Waffle Pack Chip Tray General And Ultrasonic Cleaning
Black PC Waffle Pack Chip Tray General And Ultrasonic Cleaning Black PC Waffle Pack Chip Tray General And Ultrasonic Cleaning Black PC Waffle Pack Chip Tray General And Ultrasonic Cleaning

Large Image :  Black PC Waffle Pack Chip Tray General And Ultrasonic Cleaning

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN21120
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: $0.35~$0.85(Prices are determined according to different incoterms and quantities)
Packaging Details: It depends on the QTY of order and size of product
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 4000PCS~5000PCS/per day

Black PC Waffle Pack Chip Tray General And Ultrasonic Cleaning

Material: PC Color: Black
Matrix QTY: 10*8=80PCS Place Of Origin: CHINA
Surface Resistance: 1.0x10E4~1.0x10E11Ω Clean Class: General And Ultrasonic Cleaning
Injection Mold: Lead Time 20~25Days,Mold Life Span: 30~450,000 Times Molding Method: Injection Moulding
High Light:

PC Waffle Pack Chip Tray


General Cleaning Waffle Pack Chip Tray


Ultrasonic Cleaning Waffle Pack Chip Trays

China Manufacturer High quality Black PC Waffle Pack Chip Tray

The chip tray is mainly used for QFA, BGA, TSOP, PGA and other semiconductor packaging inspection, storage and transportation. They can also provide functions such as high temperature resistance, anti-static electricity and so on. We design and manufacture such products to meet the needs of our customers.


Hiner-pack as a specialist manufacturer of industrial products and component trays, we create trays for the transport, packaging, storage and protection of a wide variety of precision components. From optical components to electronic components, we will continue to do our best to create a richer lineup of IC trays and other products.

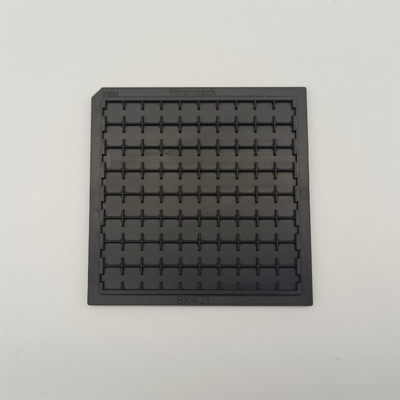

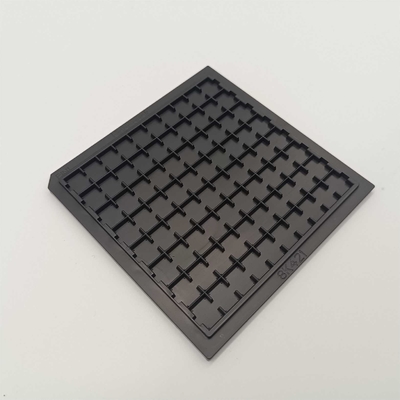

Details of the HN21120 Black Waffle Pack

HN21120 waffle pack is used to provide clean, safe packaging for bare mode and other microelectronic devices. It’s a standard design of a 4-inch square with a 10*8 matrix. The chip tray should be selected for pocket size, with the aim of not allowing the device to rotate or flip over in the pocket.

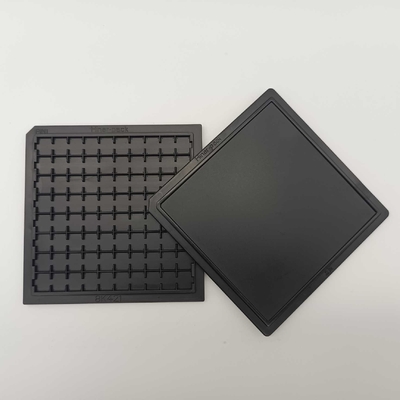

Hiner-pack has a large inventory of industry standard chip trays to meet your packaging needs. At the same time, according to the different needs of customers, there are also lids, clips and Tyvek paper for use with the chip tray base. In addition, we can also provide professional customized service according to the size and drawings provided by customers. With the perfect design to achieve the most reasonable loading.

Outline Line Size 101.57*101.57*5.5mm Brand Hiner-pack
Model HN21120 Package Type Die
Cavity Size 9.58*7.43*2.38 Matrix QTY 10*8=80PCS
Material PC HS Code 3923900000
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS


Application of HN21120 Waffle Pack Chip Tray

Electronic component                       Semiconductor


Micro and Nano systems                  Sensor IC

Outline Size Material Surface Resistance Service Flatness Color
2" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.2mm Customizable
3" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.25mm Customizable
4" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.3mm Customizable
Custom size ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM TBC Customizable
Provide professional design and packaging for your products




1.We made all products with best material had passed certificate.
2.We have our professional designer so that we can not only produce customers own design, but also we can design for customers based on the customers requests.
3.100% manufacturer,competitive price.
4.The samples are free.
5.We will provide best service since we meet the client,and will do our best to solve the entire problem.

Black PC Waffle Pack Chip Tray General And Ultrasonic Cleaning 0


Q1: Are You Manufacturer or Trade Company?

Ans:We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.

Q2: What is the material of your product?


Q3: Can you help with the design?

Ans:Yes, we can accept your customization and do the packaging for you according to your requirement.

Q4: How can I get the quotation of the custom products ?

Ans:Let us know the size of your IC or component thickness,and then we can make a quotation for you.

Q5: Can I get some samples before making a bulk order?

Ans:Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.

Q6: Could you put my logo in our product?
Ans:Yes, we can put your logo in our product, show us your logo firstly please.

Black PC Waffle Pack Chip Tray General And Ultrasonic Cleaning 1
