Customized High Temperature PC Chip Tray For Loading IC Chip

Customized High Temperature PC Chip Tray For Loading IC Chip
Customized High Temperature PC Chip Tray For Loading IC Chip Customized High Temperature PC Chip Tray For Loading IC Chip Customized High Temperature PC Chip Tray For Loading IC Chip

Large Image :  Customized High Temperature PC Chip Tray For Loading IC Chip

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN21111
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: $0.35~$0.85(Prices are determined according to different incoterms and quantities)
Packaging Details: It depends on the QTY of order and size of product
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 4000PCS~5000PCS/per day

Customized High Temperature PC Chip Tray For Loading IC Chip

Material: PC Color: Black
Matrix QTY: 7*7=49PCS Place Of Origin: CHINA
Surface Resistance: 1.0x10E4~1.0x10E11Ω Clean Class: General And Ultrasonic Cleaning
Injection Mold: Lead Time 20~25Days,Mold Life Span: 30~450,000 Times Molding Method: Injection Moulding
High Light:

Injection Moulding PC Chip Tray


Loading PC Chip Tray


Customized Waffle Pack Chip Trays

Customized High Temperature PC Chip Tray for loading IC Chip

The Chip tray is a carrier for semiconductor chip enterprises to package and bake their chips, mainly used for QFA, BGA, TSOP, PGA and other semiconductor packaging inspection, storage and transportation. Compared with other traditional packaging methods, it can not only hold the small parts, but also provide high temperature resistance, anti-static and other function.


From design drawing, mold manufacturing, production to clean packaging. All steps and operations are strict quality controlled. We take customer satisfaction as the ultimate goal. Constantly meet customer requirements to promote our factory to a higher level of progress.

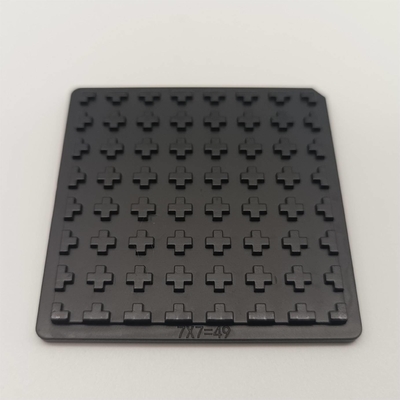

Details of the HN21111 Chip Tray

HN21111 Waffle Pack is used to provide clean, secure packaging for bare die and other electronic chips. It also has many functions such as bending resistance, bearing strength and high temperature resistance. Customers choose chip trays based on pocket size, which is to avoid the device spinning or flipping in the pocket.

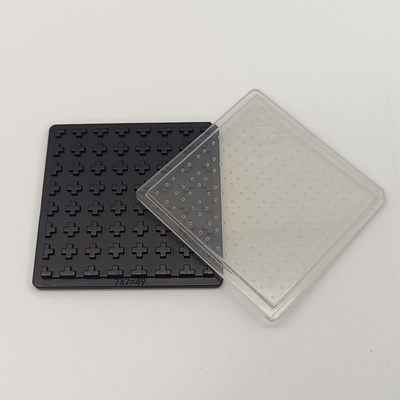

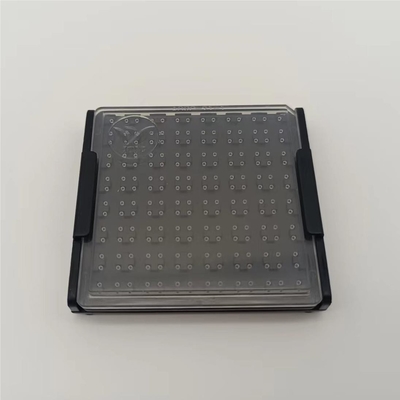

We can customize various specifications and sizes according to customer requirements to achieve the most reasonable loading. In addition, there are matching cover, clip, Tyvek paper for customers to choose. Multiple waffle packs can be stacked on top of each other, increasing storage of electronic components and thus saving production cost.

Outline Line Size 50.75*50.75*3.96mm Brand Hiner-pack
Model HN21111 Package Type Die
Cavity Size 4.6*4.6*1.0 Matrix QTY 7*7=49PCS
Material PC HS Code 3923900000
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS


Application of HN21111 Waffle Pack

Semiconductor                                   Display Technology


Micro and Nano Systems                   Test and Measurement Technology

Outline Size Material Surface Resistance Service Flatness Color
2" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.2mm Customizable
3" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.25mm Customizable
4" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.3mm Customizable
Custom size ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM TBC Customizable
Provide professional design and packaging for your products


Our Service

1. We have sample stock, also can help the client to choose which type is suitable for them.
2. We will reply you in any time if you have questions.
3. Choose suitable product for clients according to clients' requirement.
4. After mold customization, free samples will be provided until the customer tests OK, so as to remove the mass production quality concerns of customers before quantity.

Customized High Temperature PC Chip Tray For Loading IC Chip 0


Q1: Are You Manufacturer or Trade Company?

We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.

Q2: What is the material of your product?


Q3: Can you help with the design?

Yes, we can accept your customization and do the packaging for you according to your requirement.

Q4: How can I get the quotation of the custom products ?

Let us know the size of your IC or component thickness,and then we can make a quotation for you.

Q5: Can I get some samples before making a bulk order?

Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.

Q6: Could you put my logo in our product?
Yes, we can put your logo in our product, show us your logo firstly please.

Q7: When can we get the samples?
We can send you them right now if you are interested in something we have stock, and customize.
