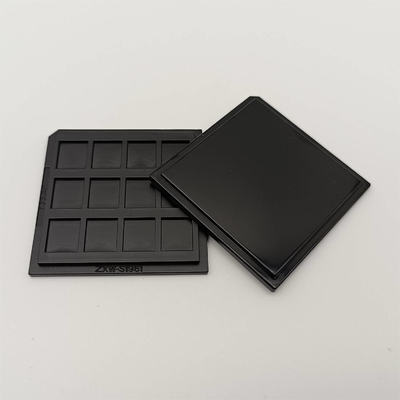

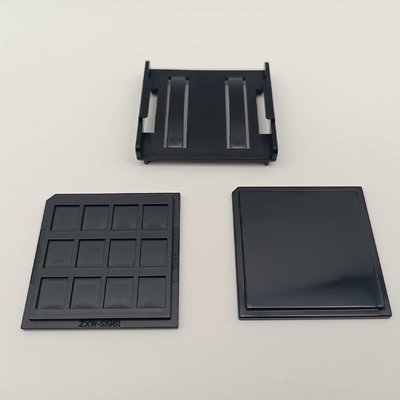

Standard Square Matrix Waffle Pack Chip Tray Match Lid Clip Environmentally Friendly

Standard Square Matrix Waffle Pack Chip Tray Match Lid Clip Environmentally Friendly
Standard Square Matrix Waffle Pack Chip Tray Match Lid Clip Environmentally Friendly Standard Square Matrix Waffle Pack Chip Tray Match Lid Clip Environmentally Friendly Standard Square Matrix Waffle Pack Chip Tray Match Lid Clip Environmentally Friendly Standard Square Matrix Waffle Pack Chip Tray Match Lid Clip Environmentally Friendly

Large Image :  Standard Square Matrix Waffle Pack Chip Tray Match Lid Clip Environmentally Friendly

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN21123
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: $0.35~$0.85(Prices are determined according to different incoterms and quantities)
Packaging Details: It depends on the QTY of order and size of product
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 4000PCS~5000PCS/per day

Standard Square Matrix Waffle Pack Chip Tray Match Lid Clip Environmentally Friendly

Description
Material: PC Color: Black
Matrix QTY: 3*4=12PCS Place Of Origin: CHINA
Surface Resistance: 1.0x10E4~1.0x10E11Ω Clean Class: General And Ultrasonic Cleaning
Injection Mold: Lead Time 20~25Days,Mold Life Span: 30~450,000 Times Molding Method: Injection Moulding
High Light:

Matrix Waffle Pack Chip Tray

,

Square Waffle Pack Tray

,

Environmentally Friendly Waffle Pack Tray

Standrad Square Matrix Waffle Pack Chip Tray Match Lid Clip



Hiner-pack has many years of design and manufacturing experience in the field of injection molding products. We produce a wide range of waffle pack to meet the automation equipment requirements of many semiconductor customers.



Our products are available in a variety of sizes and materials to meet customer requirements such as high temperature baking,impact resistance ,ect.To provide products with a full range of electrostatic protection, as well as safe and convenient transportation.

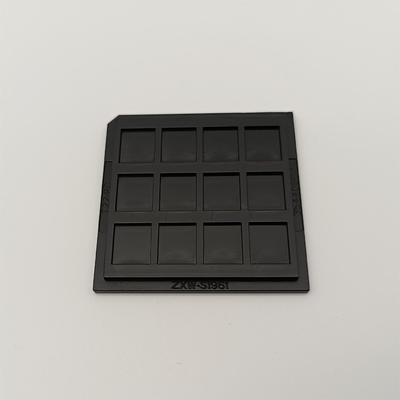

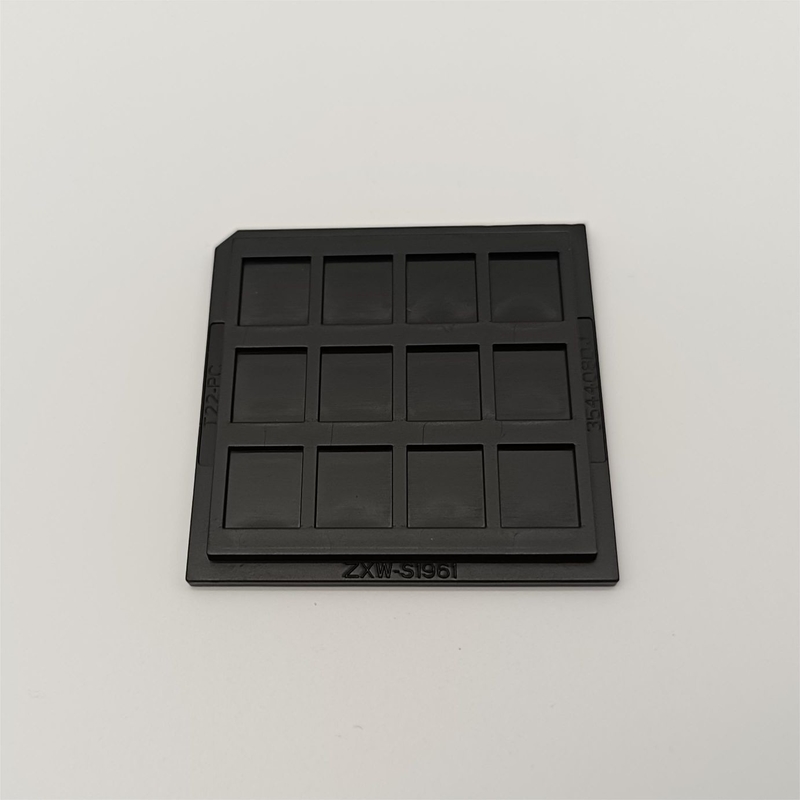

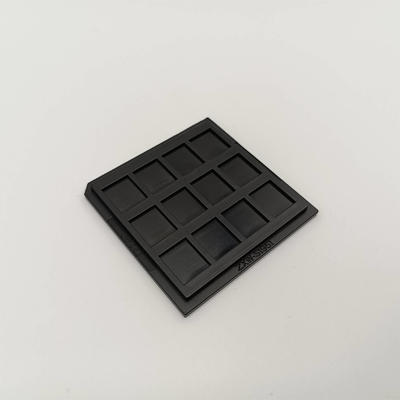

Details of the HN21123 Chip Tray



The HN21123 Waffle pack is designed for small-scale production and storage of small series of components. Like the JEDEC trays, the waffle pack have a chamfer corner to indicate orientation. The step sizes (from pocket to pocket) in the horizontal and vertical direction are also copied from JEDEC trays.



The chip tray is mainly made of PC. The material has good consolidation and can protect customers' electronic products well.In addition, multiple trays can overlap, increasing the storage of electronic components, PCB board and dust-free workshop parts, thus saving transportation costs.



Outline Line Size 50.72*50.72*3.96mm Brand Hiner-pack
Model HN21123 Package Type Devices
Cavity Size 8.99*10.36*1.98 Matrix QTY 3*4=12PCS
Material PC HS Code 3923900000
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS



Application of HN21120 Chip Tray



Semiconductor                                        Display Technology

Electronic Component Packaging           Optical Device Packaging



Outline Size Material Surface Resistance Service Flatness Color

2"

ABS.PC.PPE...etc

1.0x10e4-1.0x10e11Ω

OEM,ODM

Max 0.2mm

Customizable

3"

ABS.PC.PPE...etc

1.0x10e4-1.0x10e11Ω

OEM,ODM

Max 0.25mm

Customizable

4"

ABS.PC.PPE...etc

1.0x10e4-1.0x10e11Ω

OEM,ODM

Max 0.3mm

Customizable

Custom size

ABS.PC.PPE...etc

1.0x10e4-1.0x10e11Ω

OEM,ODM

TBC

Customizable

Provide professional design and packaging for your products



Service of IC Tray Manufacturer



1. We have sample stock, also can help the client to choose which type is suitable for them.

2. We will reply you in any time if you have questions.

3. Choose suitable product for clients according to clients' requirement.

4. After mold customization, free samples will be provided until the customer tests OK, so as to remove the mass production quality concerns of customers before quantity.

Standard Square Matrix Waffle Pack Chip Tray Match Lid Clip Environmentally Friendly 0

FAQ



Q1: Are You Manufacturer or Trade Company?

We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.

Q2: What is the material of your product?

ABS.PC.PPE.MPPO.PEI.HIPS...etc

Q3: Can you help with the design?

Yes, we can accept your customization and do the packaging for you according to your requirement.

Q4: How can I get the quotation of the custom products ?

Let us know the size of your IC or component thickness,and then we can make a quotation for you.

Q5: How about batch order production?
Ans: Normally 5-8 days or so.
Q6:Do you inspect the finished products?
Ans:Yes, We will do inspection according to ISO 9000 standard and ruled by our QC staff.
