Product Details:
|
| Material: | MPPO | Color: | Black |
|---|---|---|---|
| Temperature: | 150°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | MPPO IC Chip Tray,Matrix IC Chip Tray,ISO 9001 Jedec Matrix Trays |
||
Custom Non-Standard Height MPPO Matrix IC Tray Meet ISO 9001
The JEDEC tray is a generic name for a standardized tray,which is used primarily to store and transport various electronic components. The tray has different matrix designs depending on the size of the loaded product. It consists of multiple matrix pockets, and the spacing between the matrix pockets is determined by the size of the components.
Matrix Trays are used primarily in automated test & assembly processes and conform to JEDEC standards. Integrated circuits and components are picked from trays for testing or assembly into printed circuit boards.

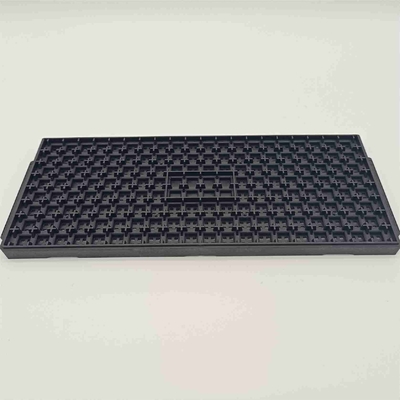

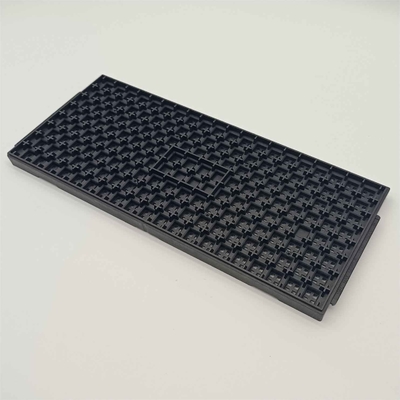

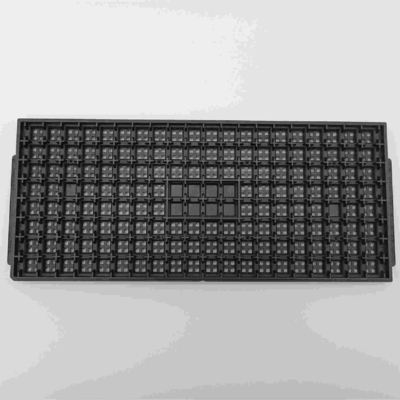

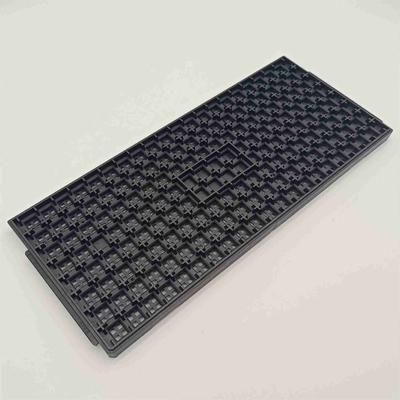

Details of HN21124 JEDEC Tray
The main material of HN21124 tray is MPPO, which is a kind of material with good stability and heat resistance. This makes the product not only avoid the phenomenon of high temperature cracking, but also fully comply with ROHS international environmental protection standards.
Compared with ordinary products, our trays are small in size and light in weight. The matrix design of 8*20 can hold more products and reduce the transportation cost of customers. The raw materials can be recycled and easily degraded after waste, thus reducing the manufacturing cost and shortening the material delivery time.
| Outline Line Size | 322.6*135.9*14.19mm | Brand | Hiner-pack |
| Model | HN21124 | Package Type | Devices |
| Cavity Size | 9.3*10.4*10.12 | Matrix QTY | 8*20=160PCS |
| Material | MPPO | Flatness | MAX 0.76mm |
| Color | Black | Place of origin | CHINA |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
Application of Jedec Matrixs Tray
Optical Industry Military Industry
Micro and Nano Systems Embedded System
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
Service of Matrix Tray Manufacturer
1. We offer ESD total Solution to Customer, Many other related product available if needed.
2. OEM is welcomed or design as customer request.
3. The best & professional sale services.
4. Honest but competitive price and Quality assured quotation.
5. 100% QC inspection before shipment.
FAQ
Q1. Are you a manufacturer ?
Ans: Yes, we are a manufacturer. We have ISO 9000 Quality Management System.Your inquiry would be responded quickly with our favorable quotation.
Q2. Do you provide free samples ?
Ans: Yes, the samples of our existing models are free cost.
Q3. How long can you get ready samples ?
Ans: Normally 3 days. If customized one, open new mold 25~30days around.
Q4: How about batch order production?
Ans: Normally 5-8 days or so.
Q5. Can you design products according to our particular requirements ?
Ans: Yes, we can. We have R&D team.
Q6. How do you control the quality ?
Ans: At first, we filter raw material and incoming material and only allow fine material to go to production lines.
Secondly, our own QC staff conduct on-line inspection and make amendments if there is a
quality problem.
Thirdly, our QC staff inspect the finished products including checking surface resistance index to ensure anti-static function.
Finally we check the ready-to -ship products before shipment to ensure all are packed in a
appropriate and safe way.
