Product Details:
|
| Material: | MPPO | Color: | Black |
|---|---|---|---|
| Temperature: | 150°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | Stable Jedec Matrix Tray,IC Jedec Matrix Tray,BGA Jedec Matrix Tray |
||

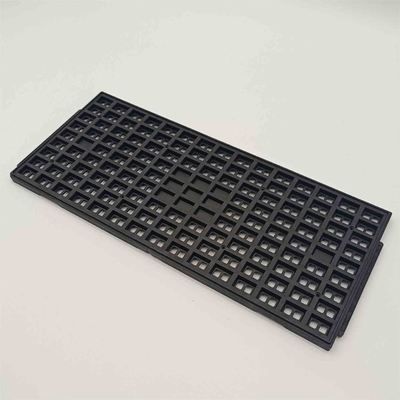

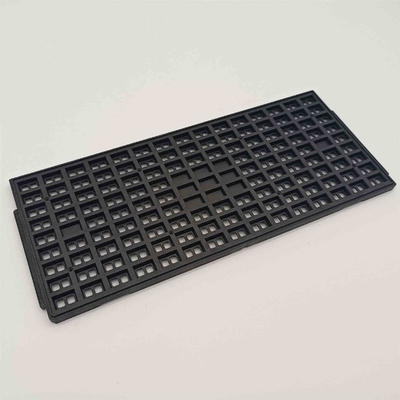

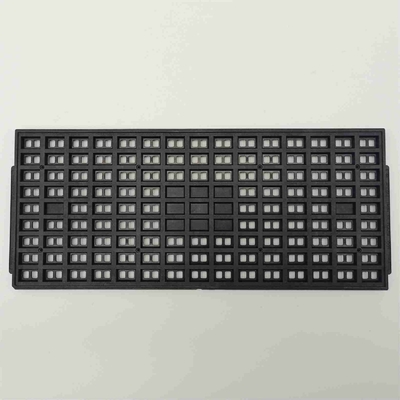

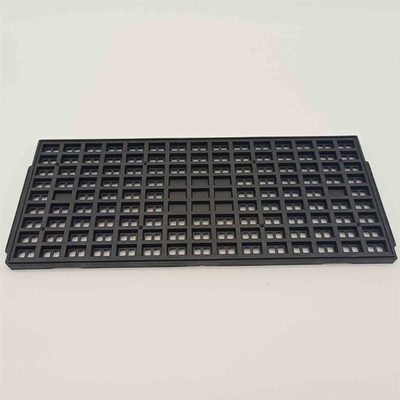

Stable High Temperature Resistant BGA Jedec Matrix Tray For IC
Our matrix trays are strictly made according to the JEDEC standards. Each tray is molded into a rectangular JEDEC standard profile containing a matrix of evenly spaced pockets. The product has the same overall dimensions of 12.7 inches by 5.35 inches (322.6 mm by 135.89mm). the same size as "X" and "Y" are easy to stack for storage and manufacturing. Not only reduce manual handling and loading processes, but also provide complete automation services for efficient production.
Details of HN21126 Jedec Tray
HN21113 Jedec matrix tray is mainly made of material MPPO and contains a 9*15 pocket matrix. All pockets in the matrix are 14.31*8.31*6mm in size, which can not only perfectly hold customers' products but also avoid unnecessary damage to products in various environments.
At the same time, our company has a professional R & D team. We can provide special customized services according to the needs of customers. Ten years of production experience for customers to bring perfect customized solutions, better to solve the customer needs for high quality products.
| Outline Line Size | 322.6*135.9*10mm | Brand | Hiner-pack |
| Model | HN21126 | Package Type | BGA |
| Cavity Size | 14.31*8.31*6 | Matrix QTY | 15*9=135PCS |
| Material | MPPO | Flatness | MAX 0.76mm |
| Color | Black | Place of origin | CHINA |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
Application of HN21126 Jedec Tray
Electronic Components Optical Electronic Components
Embedded System Micro and Nano System
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
Our Service(Jedec Tray Manufacturer)
1. We have sample stock, also can help the client to choose which type is suitable for them.
2. We will reply you in any time if you have questions.
3. Choose suitable product for clients according to clients' requirement
4.Comprehensive customer service: from customer consultation to after sales service.
5.10 years experience of OEM for USA and EU customers.
6.We have our own factory and can control quality in high level and produce products quickly and flexibly.
FAQ
Q1: Are You Manufacturer or Trade Company?
We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.
Q2: What is the material of your product?
ABS.PC.PPE.MPPO.PEI.HIPS...etc
Q3: Can you help with the design?
Yes, we can accept your customization and do the packaging for you according to your requirement.
Q4: How can I get the quotation of the custom products ?
Let us know the size of your IC or component thickness,and then we can make a quotation for you.
Q5: Can I get some samples before making a bulk order?
Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.
Q6: Could you put my logo in our product?
Yes, we can put your logo in our product, show us your logo firstly please.
