Product Details:
|
| Material: | ABS | Color: | Black |
|---|---|---|---|
| Matrix QTY: | 9*9=81PCS | Place Of Origin: | CHINA |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Clean Class: | General And Ultrasonic Cleaning |
| Injection Mold: | Lead Time 20~25Days,Mold Life Span: 30~450,000 Times | Molding Method: | Injection Moulding |
| High Light: | Flatness 0.3mm Chip Tray,Loading Filter Chip Tray,Injection Moulding Electronic Components Tray |
||
Flatness 0.3mm Loading Filter Chip Tray Professional Manufacturers
Chip tray is a form of packaging designed for very small or unusually shaped parts. It is widely used in the semiconductor industry, photoelectric industry and other industries, where customers have high requirements for cleanliness and size of products.
The chip tray contains a matrix pocket in which each pocket contains a piece or assembly. Once installed, the pieces are covered with anti-static paper, then holds the pieces in place, and a clip holds the lid and tray together.

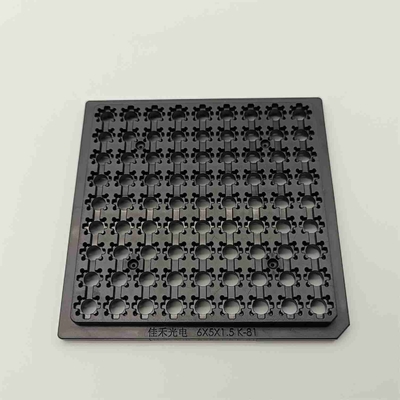

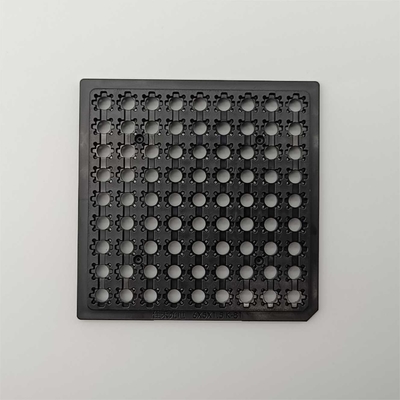

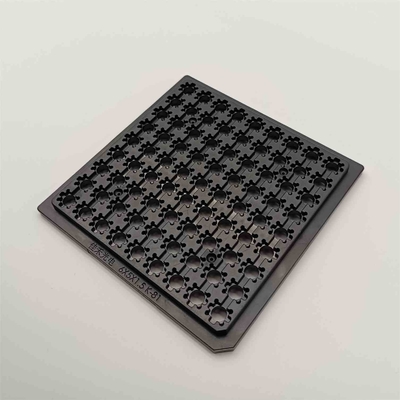

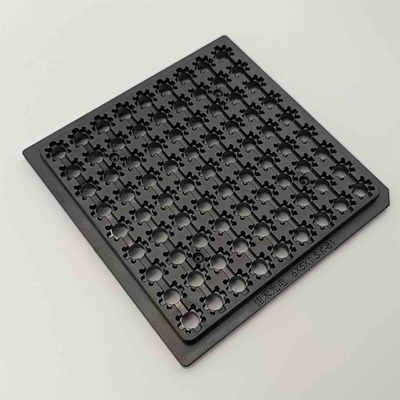

Details of HN21128 Waffle Pack
The HN21128 Waffle pack is mainly made of ABS, which has good electrical conductivity and can protect customers' electronic products well. The 9*9 matrix design can also load customers' products to a greater extent, thus saving transportation costs. According to customers' actual usage requirements, we can also provide matching covers and clamps to meet customers' different requirements for sample and mass production loading respectively.
Our company has nearly ten years of experience in the production of injection molding industry. Our chip trays are exported to well-known customers at home and abroad, and we can provide the most suitable packaging service for customers. Achieve the most reasonable loading according to the size and manufacturing requirements provided by the customer.
| Outline Line Size | 101.6*101.6*7.9mm | Brand | Hiner-pack |
| Model | HN21128 | Package Type | Die |
| Cavity Size | 5.2*6.2*2.5 | Matrix QTY | 9*9=81PCS |
| Material | ABS | Flatness | MAX 0.3mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
Application Of HN21128 Chip Tray
IC Packaging Delivery System Electronic Component
Embedded System Micro and Anon System
| Outline Size | Material | Surface Resistance | Service | Flatness | Color |
| 2" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.2mm | Customizable |
| 3" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.25mm | Customizable |
| 4" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.3mm | Customizable |
| Custom size | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | TBC | Customizable |
| Provide professional design and packaging for your products | |||||
Advantage
1. Have exported for more than 10 years.
2. Have professional engineer and efficient management.
3. Delivery time is short, normally in stock.
4. Small quantity is allowed.
5. The best & professional sale services, 24hours Response.
6. Our products have been exported to USA, Germany, UK, Europe, Korea, Japan...etc, Win many big famous customer reputation.
7. Factory have ISO certificate, Product comply to ROHS standard.
FAQ
Q1: Are You Manufacturer or Trade Company?
We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.
Q2: What is the material of your product?
ABS.PC.PPE.MPPO.PEI.HIPS...etc
Q3: Can you help with the design?
Yes, we can accept your customization and do the packaging for you according to your requirement.
Q4. Do you arrange shipment for the products?
It’s depends on our incoterms,If FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.
Q5. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, including Commercial Invoice, Packing List, B/L and other certificates as required by clients.
