Product Details:
|
| Material: | PC | Color: | Black |
|---|---|---|---|
| Temperature: | 110°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | 0.76mm Jedec Matrix Trays,Electronic Component Jedec Matrix Trays,PC Jedec Standard Matrix Tray |
||
Black PC Jedec Matrix Trays for Electronic Component Storage
Jedec matrix trays are an industry standard for the safe handling, transport, and storage of electronics. Depending on your product size and specifications, Hiner-pack can also provide customized services. From length, width and height to tolerances, each step is designed according to the overall dimensions and special parts. The designed tray can perfectly carry customers' chips or electronic components without worrying about product safety.

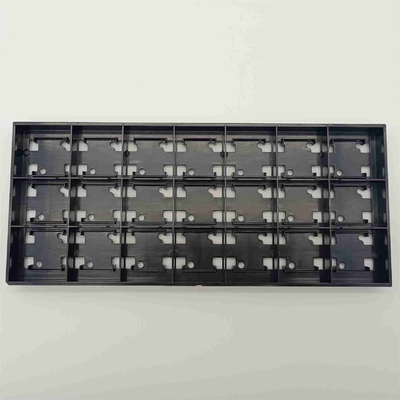

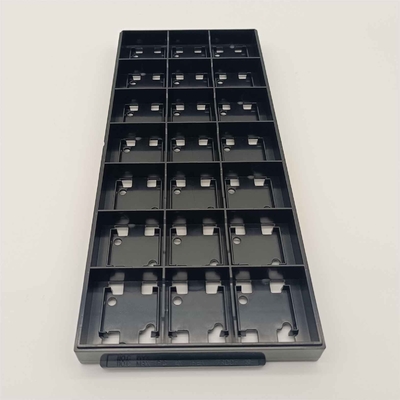

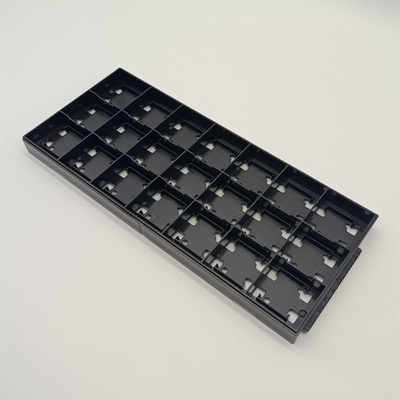

Details Of HN21132 Jedec Tray
Jedec tray of PN. HN21132 is mainly made of PC material, with good dimensional stability and high temperature resistance, which makes it a very widely used industrial plastic. Matrix trays made of this material are not only light and durable, but also fully comply with ROHS international environmental standards. Customers do not have to worry about environmental protection after waste.
It can be used for both turnover and finished product delivery packaging. The design of a 45 degree chamfer provides an intuitive indication of the direction of the IC chip pins. This can prevents errors from piling up, reduces the possibility of worker errors and maximizes chip protection.
| Outline Line Size | 322.6*135.9*21mm | Brand | Hiner-pack |
| Model | HN21132 | Package Type | Die |
| Cavity Size | 25.4*31.2*16.97 | Matrix QTY | 3*7=21PCS |
| Material | PC | Flatness | MAX 0.76mm |
| Color | Black | Place of origin | CHINA |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
Application Of HN21132 Jedec Tray
Semiconductor Sensor
Optical Industry Military Industry
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
Advantage
1. Have exported for more than 10 years.
2. Have professional engineer and efficient management.
3. Delivery time is short, normally in stock.
4. Small quantity is allowed.
5. The best & professional sale services, 24hours Response.
6. Our products have been exported to USA, Germany, UK, Europe, Korea, Japan...etc, Win many big famous customer reputation.
FAQ
1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whats app, in case of any delays.
2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.
3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
