Product Details:
|
| Material: | MPPO | Color: | Black |
|---|---|---|---|
| Temperature: | 125°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | Standard JEDEC Matrix Trays,Precision Machining JEDEC Matrix Trays,IC Components JEDEC Matrix Tray |
||

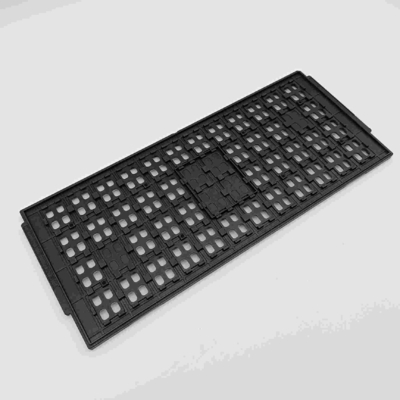

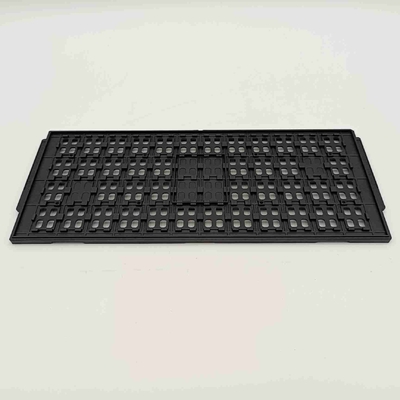

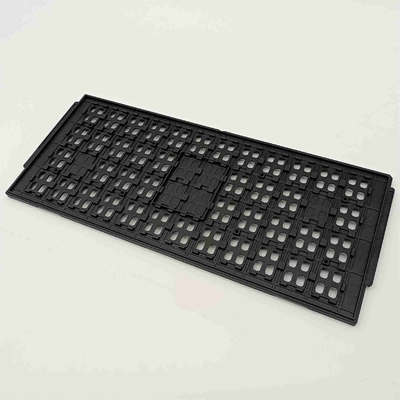

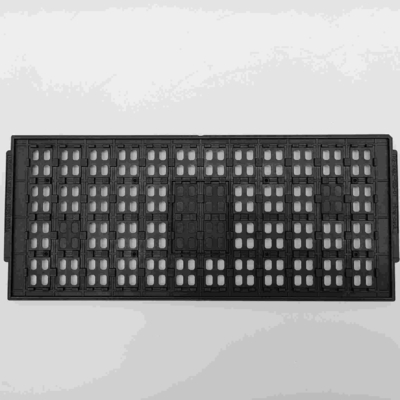

MPPO JEDEC Matrix Tray for Transport Load IC Components
JEDEC tray is an industry standard for the safe handling, transport, and storage of small electronic parts, circuit board, pcb, pcba and electronic components. It is made of conductive plastics through injection molding, baking, washing, inspection, packaging and other processes. At the same time, this JEDEC tray can also be customized according to customer requirements of various specifications.It is the best packaging that can provide a lighter, less expensive transportation.
The Details of the HN22002 JEDEC Tray
The HN22002 JEDEC tray is mainly made of MPPO material with good dimensional stability and high temperature resistance.This material can be reused and recycled, which not only avoids environmental pollution, but also can saves loss. In addition to material requirements, the production has also passed a variety of tests including full mechanical testing, ESD testing, reliability testing and baking/freezing capability. After production is complete, all trays are also cleaned and reinspected to meet the JEDEC standard.
The JEDEC tray is a plastic product used for the chip packaging testing. It can effectively prevent electrostatic contact to protect the chip from damage, but also easy to automate detection and installation. Hiner-pack has nearly ten years of tray production experience, with a professional technical R&D team. From product design to the delivery, we can provide a complete set of high quality service of customer products.
| Outline Line Size | 322.6*135.9*7.62mm | Brand | Hiner-pack |
| Model | HN22002 | Package Type | Die |
| Cavity Size | 24.3*18.3*3.05 | Matrix QTY | 12*4=48PCS |
| Material | MPPO | Flatness | MAX 0.76mm |
| Color | Black | Place of origin | CHINA |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
Application of the HN22002 Matrix Tray
Electronics Industry Semiconductor
Optical Industry Military Industry
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
FAQ
1. Are you a manufacturer ?
Ans:Yes, we are a manufacturer. Our factory direct sale price is extremely competitive.
You are welcome to visit our factory.Your inquiry would be responded quickly with our favorable quotation.
2. Do you provide free samples ?
Ans:Yes, the samples of our existing models are free cost, but the shipping cost should be borne by customers. For customized design, we need to charge 3D sampling Mould cost and it can be negotiated.
3. How long can you get ready samples ?
Ans:3 days for our available models and 7 days around for customized design.
4. How long can you complete bulk production ?
Ans:10 days around.
5. Can you design products according to our particular requirements ?
Ans:Yes, we can. We have R&D team.
6. How do you control the quality ?
Ans:At first, we filter raw material and incoming material and only allow fine material to go to production lines.
Secondly, our own QC staff conduct on-line inspection and make amendments if there is a quality problem.
Thirdly, our QC staff inspect the finished products including checking surface resistance index to ensure anti-static function.
Finally we check the ready-to -ship products before shipment to ensure all are packed in a appropriate and safe way.
