|Matrix QTY:||12*6=72PCS||Place Of Origin:||CHINA|
|Surface Resistance:||1.0x10E4~1.0x10E11Ω||Clean Class:||General And Ultrasonic Cleaning|
|Injection Mold:||Lead Time 20~25Days,Mold Life Span: 30~450,000 Times||Molding Method:||Injection Moulding|
SGS 4 Inch Waffle Pack,
Black 4 Inch Waffle Pack,
Electronic Parts Waffle Pack Chip Trays

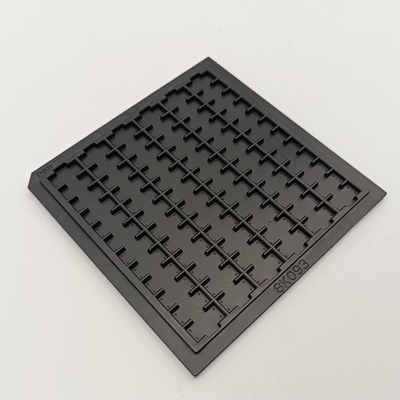

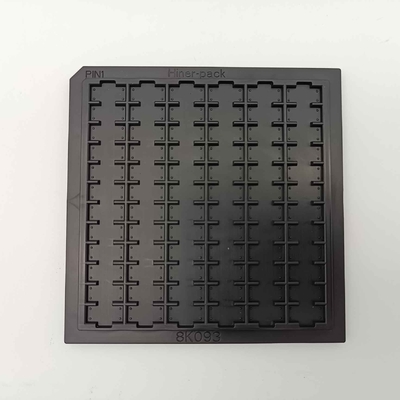

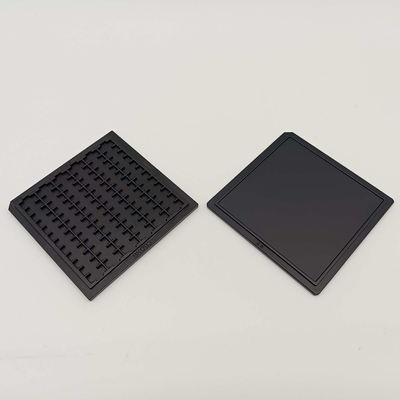

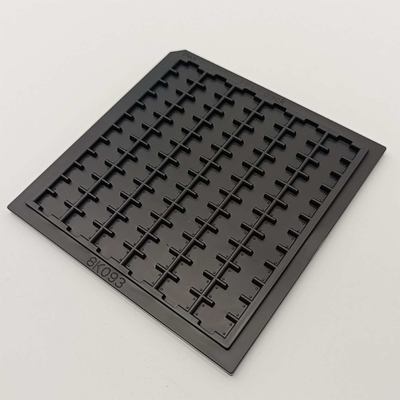

SGS Black 4 Inch Waffle Pack For Electronic Parts
The Waffle pack is an ideal tray specially designed for the loading, transportation and storage of electronic components. It is a plastic tray with good structural stability and heat resistance, the pocket matrix in the tray can be good for storing customer products. Considering that the product is easy to produce friction discharge in storage, we also have anti-static waffle pack for customers to choose, which can effectively release the static electricity on the surface of the product. This anti-static tray can provide more comprehensive protection for products in different environments, reduce product losses and improve the quality of product.
The Details Of HN22005 Waffle Pack
HN22005 waffle pack is mainly made of industrial plastic PC, which is a kind of raw material with good structure. It is small and lightweight, making it ideal for carrying and transporting tiny electronic components. At the same time, the 12*6 matrix design can accommodate the customer's products to the maximum extent, and multiple trays can overlap, greatly reducing the customer's transportation costs.
With more than 10 years of experience in tray injection molding, Hiner-pack provides customers with the most perfect packaging solutions. We can customize various specifications and sizes according to customers' requirements. At the same time, there are matching lids, clips, Tyvek paper for customers to choose. We sincerely provide customers with a comprehensive service.
|Outline Line Size||101.6*101.6*5.5mm||Brand||Hiner-pack|
|Cavity Size||12.7*5.5*1.53||Matrix QTY||12*6=72PCS|
Application of Waffle Pack Chip Tray
Wafer Die / Bar / Chip PCBA Module Component
Electronic Component Packaging Optical Device Packaging
|Provide professional design and packaging for your products|
1.Have exported for more than 10 years.
2.Have professional engineer and efficient management.
3.Delivery time is short, normally in stock.
4.Small quantity is allowed.
5.The best & professional sale services, 24 hours Response.
6.Our products have been exported to USA, Germany, UK,Europe,Korea,Japan...etc, Win
many big famous customer reputation.
7.Factory have ISO certificate, Product comply to Rohs standard.
Q1: Are You Manufacturer or Trade Company?
Ans:We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.
Q2: What is the material of your product?
Q3: Can you help with the design?
Ans:Yes, we can accept your customization and do the packaging for you according to your requirement.
Q4: How can I get the quotation of the custom products ?
Ans:Let us know the size of your IC or component thickness,and then we can make a quotation for you.
Q5: Can I get some samples before making a bulk order?
Ans:Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.
Q6: Could you put my logo in our product?
Ans:Yes, we can put your logo in our product, show us your logo firstly please.
Q7: When can we get the samples?
Ans:We can send you them right now if you are interested in something we have stock.
