Product Details:
|
| Material: | MPPO | Color: | Black |
|---|---|---|---|
| Temperature: | 125°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | 4x12 Matrix JEDEC Tray,Electronic Parts JEDEC Tray,MPPO Material Jedec Matrix Trays |
||

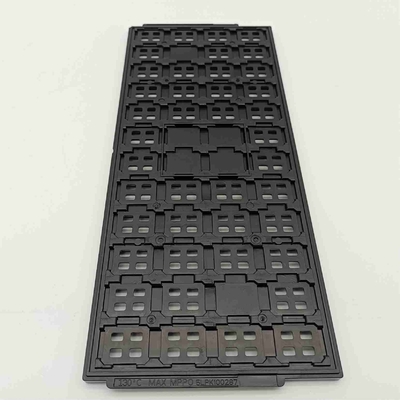

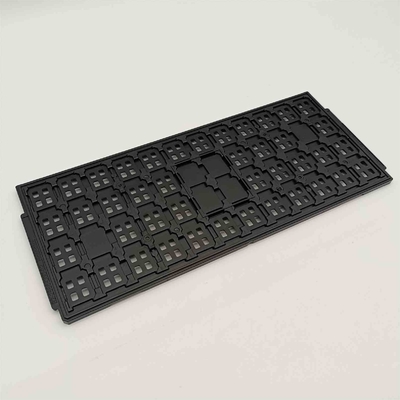

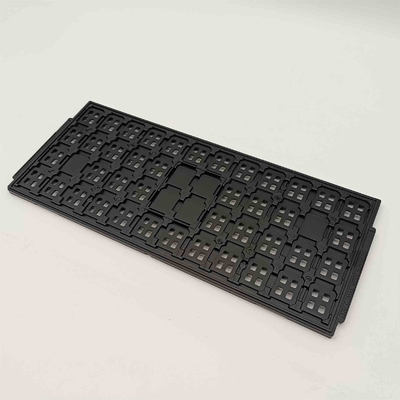

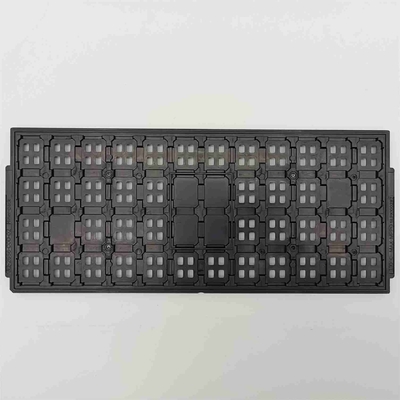

4 *12 Matrix MPPO Black JEDEC Tray For Electronic Parts
The JEDEC standard is a specification for semiconductor devices issued by the Semiconductor Trade and the Joint Electron Device Engineering Council (JEDEC). JEDEC standards are designed to eliminate misunderstandings between manufacturers and purchasers, promote product interchangeability and help purchasers select and obtain the suitable JEDEC products. Packaging, testing, quality, and reliability are all considered when setting the standards. This general standards also help the technology providers maximize their R&D investments.
The Details Of The HN22008 JEDEC Matrix Tray
The main material of HN22008 JEDEC tray is MPPO, which is a material with good stability and electrical insulation. The tray made from this material are durable and fully ROHS environmental protection standards. Raw materials also can be recycled, customers do not have to worry about environmental pollution after waste.
This tray is mainly used in automated testing and assembly process. It is made of special high temperature resistant plastic by injection molding process. The surface resistance of the material is 1.0x10e4-1.0x10e11Ω. The tray is not only small but also light in weight. At the same time, the 45 degree chamfer design prevents the accumulation of errors and minimizes the possibility of manual error. In addition, we can also provide professional customized services according to your products. Customized trays not only perfectly fit your product size, but also provide comprehensive protection in different environments.
| Outline Line Size | 322.6*135.9*7.62mm | Brand | Hiner-pack |
| Model | HN22008 | Package Type | Die |
| Cavity Size | 20.31*25.39*1.3 | Matrix QTY | 4*12=48PCS |
| Material | MPPO | Flatness | MAX 0.76mm |
| Color | Black | Place of origin | CHINA |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
Application Of The HN22008 Matrix Tray
Test and Measurement Technology Mechanical and Electrical Equipment
Power Supply Sensor
|
Material |
Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
FAQ
Q1: When can I get the quotation?
Ans: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us your mail so that we will regard your inquiry priority.
Q2: What information should we supply if we want a quotation?
Ans: Drawing of your IC or component, Quantity and size normally.
Q3: What is the delivery time?
Ans: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 15-20days after receiving the payment.
Q4:Can I get Free Samples?
Ans:Yes, If samples we have in stock would be provided for testing, but shipment should at your side.
Q5: Can we use our own logo or do OEM?
Ans: Yes, OEM is acceptable. Please send email to us for more details.
Q6: What is your terms of delivery?
Ans: We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
Q7:Do you inspect the finished products?
Ans:Yes, We will do inspection according to ISO 9000 standard and ruled by our QC staff.
