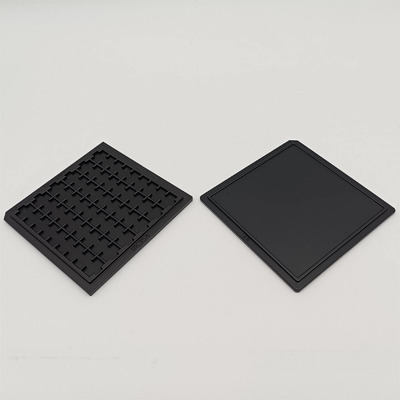

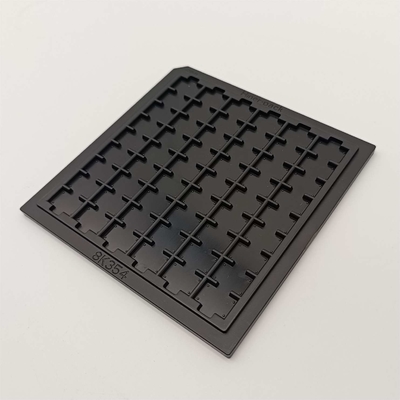

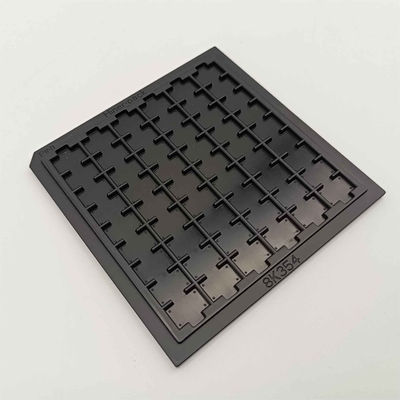

Customized 4 Inch PC Waffle Pack Trays For Chip Storage 54PCS

Customized 4 Inch PC Waffle Pack Trays For Chip Storage 54PCS
Customized 4 Inch PC Waffle Pack Trays For Chip Storage 54PCS Customized 4 Inch PC Waffle Pack Trays For Chip Storage 54PCS Customized 4 Inch PC Waffle Pack Trays For Chip Storage 54PCS Customized 4 Inch PC Waffle Pack Trays For Chip Storage 54PCS

Large Image :  Customized 4 Inch PC Waffle Pack Trays For Chip Storage 54PCS

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN22013
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: $0.35~$0.85(Prices are determined according to different incoterms and quantities)
Packaging Details: It depends on the QTY of order and size of product
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 4000PCS~5000PCS/per day

Customized 4 Inch PC Waffle Pack Trays For Chip Storage 54PCS

Material: PC Color: Black
Matrix QTY: 9*6=54PCS Place Of Origin: CHINA
Surface Resistance: 1.0x10E4~1.0x10E11Ω Clean Class: General And Ultrasonic Cleaning
Injection Mold: Lead Time 20~25Days,Mold Life Span: 30~450,000 Times Molding Method: Injection Moulding
High Light:

Chip Storage Waffle Pack Trays


4 Inch Waffle Pack Trays


54PCS Waffle Pack Chip Trays

Customized 4 Inch PC Waffle Pack Chip Tray For Chip Storage 54 PCS


The waffle pack is the carrier of semiconductor chip packaging, mainly used for the inspection, storage and transportation. Compared with other packaging methods, it can not only accommodate smaller products, but also have high temperature resistance, anti-static and other functions. The small size makes it very suitable for small-scale transportation, which is a modern production management of the necessary products.


At the same time, the service life of this waffle pack is 5-7 times longer than that of traditional packaging. In addition, it can also be recycled and there is no need for customer to worry about environmental pollution. Hiner-pack is a professional tray manufacturer. From design drawing, mold manufacturing, production to packaging, all steps and operations have strict quality control. We sincerely hope to bring you the quality service.

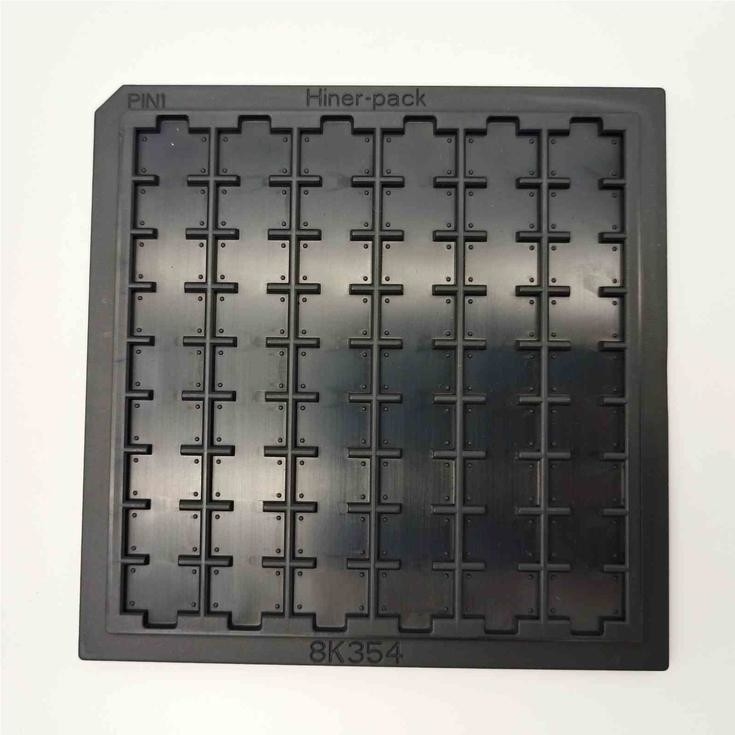

The Details Of The HN22013 Waffle Pack


HN22013 Waffle pack is mainly made of PC material, which is a widely used industrial material. The waffle pack made of this material has good structural stability, heat resistance and other properties. The tray is evenly distributed with matrix pockets, the professional matrix design to achieve the most reasonable loading. Customers can choose the right waffle pack according to their product size. At the same time, the 45 degrees chamfer design can effectively prevent stacking errors and correct the placement direction of products. This waffle pack is not only light in weight but also small in size, which greatly reduces shipping and packaging costs for customers.

Outline Line Size 101.6*101.6*5.5mm Brand Hiner-pack
Model HN22013 Package Type Die
Cavity Size 12.65*7.65*1.43 Matrix QTY 9*6=54PCS
Material PC Flatness MAX 0.3mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS


Application Of The HN22013 Chip Tray


IC Packaging Delivery Systems              Embedded System

Micro and Anon System                          Semiconductor

Outline Size Material Surface Resistance Service Flatness Color
2" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.2mm Customizable
3" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.25mm Customizable
4" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.3mm Customizable
Custom size ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM TBC Customizable
Provide professional design and packaging for your products




1.Light weight, saving transportation and packaging costs.
2.Size specification, compatible in any 2 ", 3 "or 4" Waffle Pack Feeder Machine.
3.Good anti-static performance, effectively ensure that the product is not damaged by anti-static release.
4.High temperature resistance, suitable for high temperature automation equipment assembly.
5.Corrosion resistance, suitable for all kinds of production conditions of products.
6.Matrix arrangement design, under the premise of protecting the product, the maximum capacity design, cost saving.
7.Edge chamfer design, effectively prevent stacking error, correct the direction of placement.

Customized 4 Inch PC Waffle Pack Trays For Chip Storage 54PCS 0



Q1: Are You Manufacturer or Trade Company?

Ans:We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.

Q2: What is the material of your product?


Q3: Can you help with the design?

Ans:Yes, we can accept your customization and do the packaging for you according to your requirement.

Q4: How can I get the quotation of the custom products ?

Ans:Let us know the size of your IC or component thickness,and then we can make a quotation for you.

Q5: Can I get some samples before making a bulk order?

Ans:Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.

Q6: Could you put my logo in our product?
Ans:Yes, we can put your logo in our product, show us your logo firstly please.

Q7: When can we get the samples?
Ans:We can send you them right now if you are interested in something we have stock.
