Product Details:
|
| Material: | MPPO | Color: | Black |
|---|---|---|---|
| Temperature: | 125°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | Electronic Parts JEDEC Matrix Trays,Consolidation JEDEC IC Trays,0.76mm JEDEC IC Trays |
||

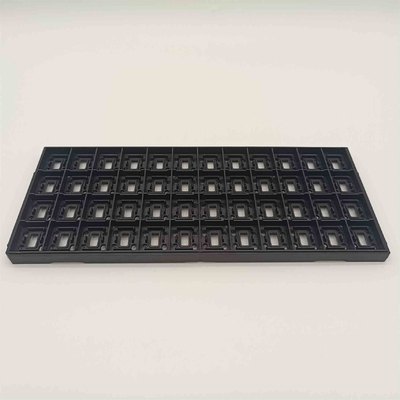

Consolidation Black MPPO JEDEC Matrix IC Trays For Electronic Parts
The JEDEC tray is also called the matrix tray and combined with the matrix pockets.The space between the pocket is defined with the JEDEC standard. The tray is not only suitable for the electronic industry,but also popular in the semiconductor,solar power and other industry. It are used primarily in automated test & assembly processes and conform to JEDEC standards. Integrated circuits and components are picked from trays for testing or assembly into printed circuit boards.
The Details of the HN22021 JEDEC Tray
HN22002 JEDEC tray is mainly made of MPPO material with excellent dimensional stability and high temperature resistance. The JEDEC tray is printed with the maximum baking temperature. Exceeding the specified maximum baking temperature will result in a change in tray size , therefore,it may damage the contents. The type of molding plastic used in the manufacturing process determines the maximum temperature rating of the tray.

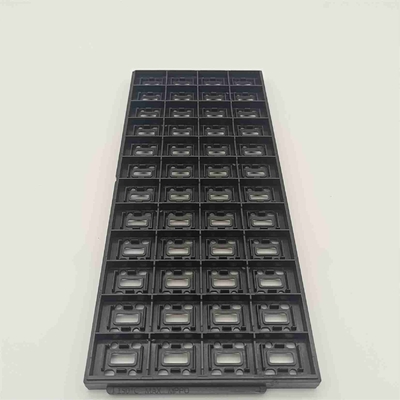

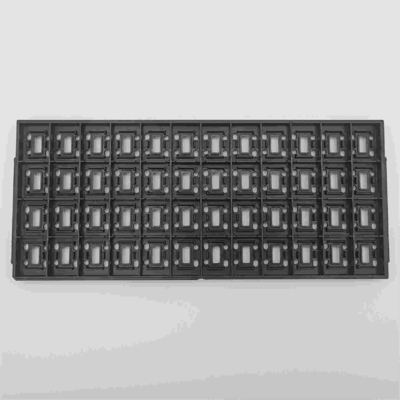

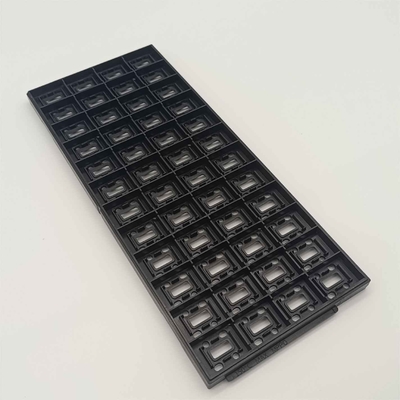

At the same time, there are 12*4 matrix pockets distributed inside the tray. The spacing between the pockets also allows the automation equipment to position the product more accurately. According to customers' product requirements, we can also provide exclusive customized services. Such as color, ESD characteristics, dimensional stability, and maximum temperature rating.
| Outline Line Size | 322.6*135.9*13.47mm | Brand | Hiner-pack |
| Model | HN22021 | Package Type | Die |
| Cavity Size | 12.35*20.35*9.2 | Matrix QTY | 12*4=48PCS |
| Material | MPPO | Flatness | MAX 0.76mm |
| Color | Black | Place of origin | CHINA |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
Application of the HN22021 Matrix Tray
Electronics Industry Semiconductor
Optical Industry Military Industry
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
Service
1.We offer ESD total Solution to Customer, Many other related product available if needed.
2.OEM is welcomed or design as customer request.
3.The best & professional sale services.
4.Honest but competitive price and Quality assured quotation.
5.100% QC inspection before shipment.
FAQ
Q1: Are You Manufacturer or Trade Company?
We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.
Q2: What is the material of your product?
ABS.PC.PPE.MPPO.PEI.HIPS...etc
Q3: Can you help with the design?
Yes, we can accept your customization and do the packaging for you according to your requirement.
Q4:Can I order if quantity less than MOQ?
Yes and it would be taken as sample order to production. We take more serious on sample order.
Q5. Can I get Free Samples?
Yes, If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.
Q6. Do you arrange shipment for the products?
It’s depends on our incoterms,If FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.
