Product Details:
|
| Material: | PC | Color: | Black |
|---|---|---|---|
| Matrix QTY: | 20*22=440PCS | Place Of Origin: | CHINA |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Clean Class: | General And Ultrasonic Cleaning |
| Injection Mold: | Lead Time 20~25Days,Mold Life Span: 30~450,000 Times | Molding Method: | Injection Moulding |
| High Light: | 20x22 Waffle Pack Chip Trays,440PCS Waffle Pack Chip Trays,PC IC Chip Tray |
||

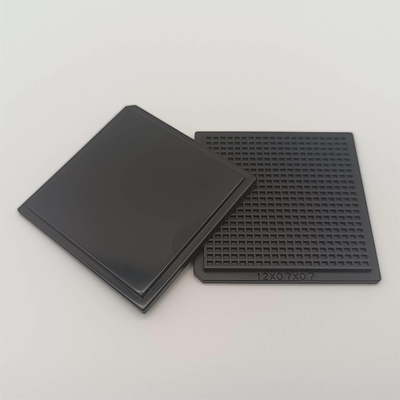

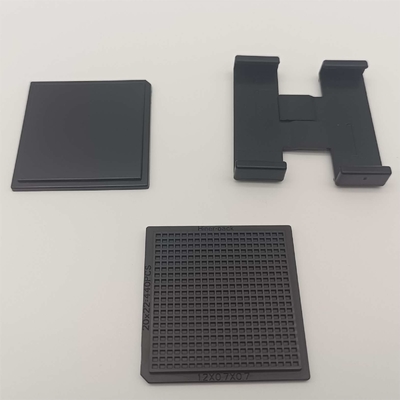

20*22 Square PC Waffle Pack Chip Tray For Photoelectric Devices
The waffle pack chip tray is an ideal tool for storing electronic components.It is suitable for the storage of silicon wafers, ICs, glass,crystals and photoelectric devices. Its unique fine and compact square structure effectively prevents the damage caused by shaking and vibration to the devices. In addition, the products have no pollution, corrosion resistance, anti-fall, anti-static and other properties, which can perfectly protect customers in a variety of environments.

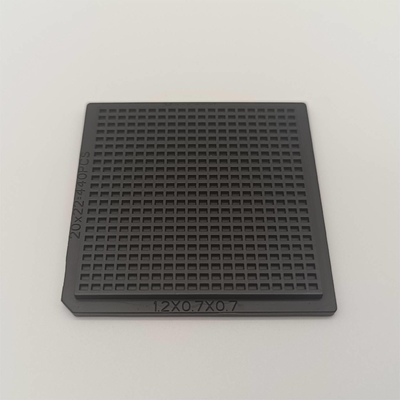

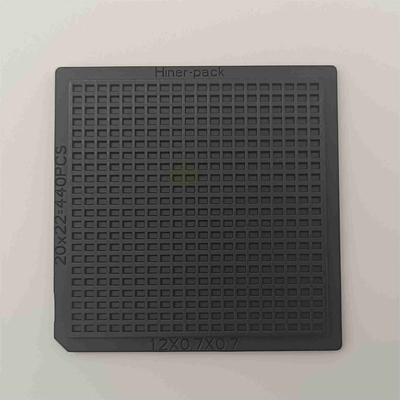

The Details of the HN22016 Waffle Pack
HN22016 waffle pack is mainly made of PC material, which is a widely used industrial material.This waffle pack made of this material is not only light in weight ,but also stable in structure.The 20*22 matrix design can accommodate customers' products to the maximum extent, thus saving packaging costs.
The waffle pack from Hiner-pack is clean and free from dust, chipping, residue and other pollution. The appearance of the product is matte with flatness<0.2mm. Each product have past through ISO 9001 quality certification. Our perfect quality management system, advanced testing instruments, testing departments ensure 100% qualified products.
| Outline Line Size | 50.7*50.7*4mm | Brand | Hiner-pack |
| Model | HN22016 | Package Type | Die |
| Cavity Size | 1.4*0.9*0.8 | Matrix QTY | 20*22=440PCS |
| Material | PC | Flatness | MAX 0.2mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
The Application of the HN22016 Waffle Pack Chip Tray
Semiconductor Chip Gem Screw
Spring Medical Part Watch Part
| Outline Size | Material | Surface Resistance | Service | Flatness | Color |
| 2" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.2mm | Customizable |
| 3" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.25mm | Customizable |
| 4" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.3mm | Customizable |
| Custom size | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | TBC | Customizable |
| Provide professional design and packaging for your products | |||||
Advantages
1. Light weight, saving transportation and packaging costs.
2. Size specification, compatible in any 2 ", 3 "or 4" Waffle Pack Feeder Machine.
3. Good anti-static performance, effectively ensure that the product is not damaged by anti-static release.
4. High temperature resistance, suitable for high temperature automation equipment assembly.
5. Corrosion resistance, suitable for all kinds of production conditions of products.
6. Matrix arrangement design, under the premise of protecting the product, the maximum capacity design, cost saving.
FAQ
Q1: Are You Manufacturer or Trade Company?
We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.
Q2: What is the material of your product?
ABS.PC.PPE.MPPO.PEI.HIPS...etc
Q3: Can you help with the design?
Yes, we can accept your customization and do the packaging for you according to your requirement.
Q4: How can I get the quotation of the custom products ?
Let us know the size of your IC or component thickness,and then we can make a quotation for you.
Q5: Can I get some samples before making a bulk order?
Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.
Q6: Could you put my logo in our product?
Yes, we can put your logo in our product, show us your logo firstly please.
