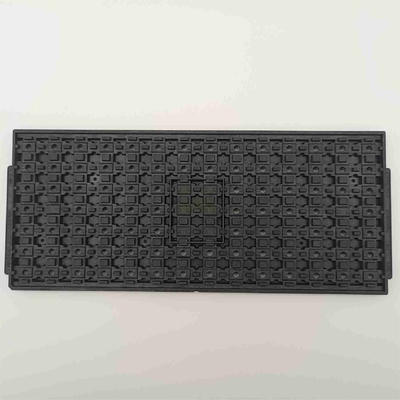

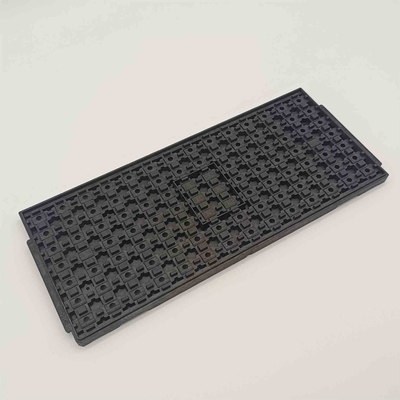

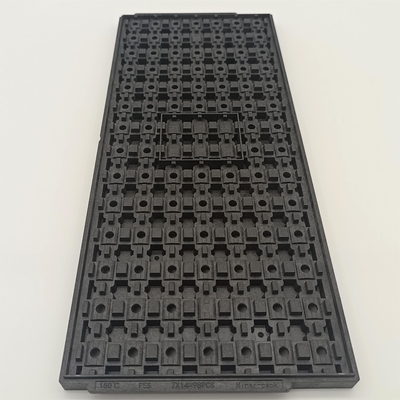

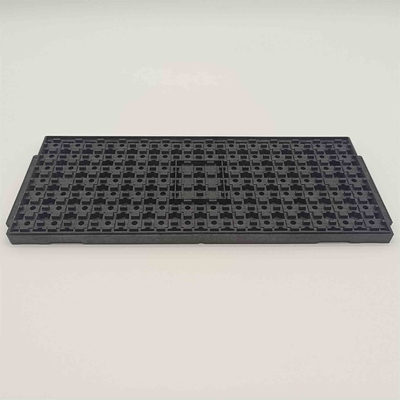

PES Rectangle Black JEDEC Matrix Tray With ISO 9001 Standard

PES Rectangle Black JEDEC Matrix Tray With ISO 9001 Standard
PES Rectangle Black JEDEC Matrix Tray With ISO 9001 Standard PES Rectangle Black JEDEC Matrix Tray With ISO 9001 Standard PES Rectangle Black JEDEC Matrix Tray With ISO 9001 Standard PES Rectangle Black JEDEC Matrix Tray With ISO 9001 Standard

Large Image :  PES Rectangle Black JEDEC Matrix Tray With ISO 9001 Standard

Product Details:
Place of Origin: Shenzhen China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN22024
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: $1.35~$2.38(Prices are determined according to different incoterms and quantities)
Packaging Details: 80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 2500PCS~3000PCS/per day

PES Rectangle Black JEDEC Matrix Tray With ISO 9001 Standard

Material: PES Color: Black
Temperature: 125°C Property: ESD
Surface Resistance: 1.0x10E4~1.0x10E11Ω Flatness: Less Than 0.76mm
Clean Class: General And Ultrasonic Cleaning Incoterms: EXW,FOB,CIF,DDU,DDP
Customized Service: Support Standard And Non-standard,precision Machining Injection Mold: Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.)
High Light:

PES JEDEC Matrix Tray


Rectangle JEDEC Matrix Tray


Jedec Matrix Trays ISO 9001

PES Rectangle Black JEDEC Matrix Tray ISO 9001 Standard

The JEDEC tray is also known as a "matrix" tray and is available in a variety of colors. In general, black is the most popular color for microelectronics and IC devices industry. There are also many other color for customer to choose from. The Anti-static and non-baking trays are mainly made of ABS in a variety of colors, such as blue, red, green, and so on. Typical temperature ratings for baked JEDEC trays are 140°C, 150°C, and 180°C. The higher the temperature, the higher the tray cost will become.


The Details of the HN22024 JEDEC Matrix Tray

HN22024 tray is made of the industrial raw materials PPE injection molding. It has its own matrix pocket design, with a unique cavity corresponding to the size and specifications of the customer's chip or electronic component. The adsorption position will be designed in the middle of the cavity, which is convenient for the automatic equipment to pick up the installed products.


At the same time, the tray has a surface resistance of 1.0x10e4-1.0x10e11Ω and is distributed with 14 x 7 matrix pockets. The proper pocket size ensure the smooth loading. It not only fits the product size perfectly, but also provides comprehensive protection in different environments. In addition, the 45 degree chamfer design is also easier to be identified and positioned by the equipment, so as to achieve the effect of automatic use and reduce labor costs.


Outline Line Size 322.6*135.9*12.19mm Brand Hiner-pack
Model HN22024 Package Type N/A
Cavity Size 16.3*11.9*3.55mm Matrix QTY 14*7=98PCS
Material PES Flatness MAX 0.76mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS


The Application of the HN22024 JEDEC Tray


Electronic Component              Power Supply
Optical Industry                        Military Industry


Material Bake Temperature Surface Resistance
PPE Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Powder Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Glass Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
PEI+Carbon Fiber Max 180°C 1.0*10E4Ω~1.0*10E11Ω
IDP Color 85°C 1.0*10E6Ω~1.0*10E10Ω
Color, temperature and other special requirements can be customized



1.Flexible OEM service: we can produce products according to customer’s sample or design.

2.Various Materials: the material can be MPPO.PPE.ABS.PEI.IDP...etc.

3.Complicated workmanship: tooling making, Injection molding,Production

4.Comprehensive customer service: from customer consultation to after sales service.

5.10 years experience of OEM for USA and EU customers.

6.We have our own factory and can control quality in high level and produce products quickly and flexibly.

PES Rectangle Black JEDEC Matrix Tray With ISO 9001 Standard 0


Q1: Are You Manufacturer or Trade Company?

Ans:We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.

Q2.Can you do the design for us?
Yes. We have a professional team having rich experience in designing and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect fact. It does not matter if you do not have some one to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.


Q3. How long is the delivery time?
For standard machine, it would be 5-7Working days. For non-standard/customized machines according to clients' specific requirements, It would be 20~25 working days.

Q4. Do you arrange shipment for the products?

It’s depends on our incoterms,If FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.

Q5. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, including Commercial Invoice, Packing List, B/L and other certificates as required by clients.

PES Rectangle Black JEDEC Matrix Tray With ISO 9001 Standard 1
