Product Details:
|
| Material: | PC | Color: | Black |
|---|---|---|---|
| Matrix QTY: | 7*8=56PCS | Place Of Origin: | CHINA |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Clean Class: | General And Ultrasonic Cleaning |
| Injection Mold: | Lead Time 20~25Days,Mold Life Span: 30~450,000 Times | Molding Method: | Injection Moulding |
| High Light: | 56PCS 2 Inch Waffle Pack,Matching Lid 2 Inch Waffle Pack,Waffle Pack Chip Trays 2 Inch |
||

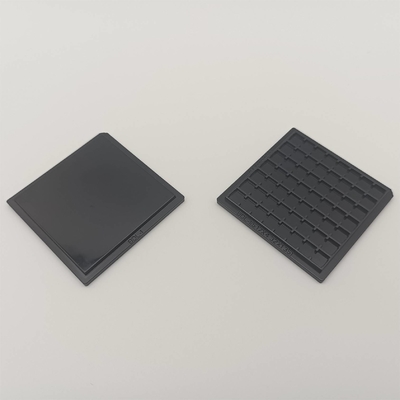

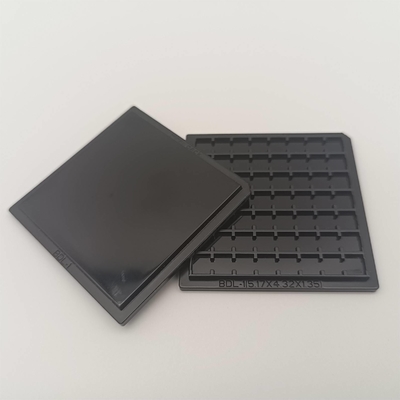

Customized Black 2 inch Waffle Pack With Matching Lid
The waffle pack is widely used in semiconductor and electronics industry customers. It protects chips from damage during product storage and transportation. From design, mold manufacturing, product manufacturing to cleaning and so on, all the steps have gone through strict quality control.
Because of its special requirements for the use of environment, the materials for making trays need to have many conditions, such as high temperature resistance and high wear resistance.The Non-metallic material PC with good temperature resistance is undoubtedly an excellent choice. At the same time, we can customize various types of trays according to customers' different packaging requirements for products.

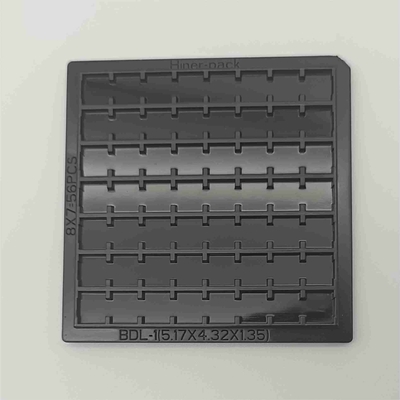

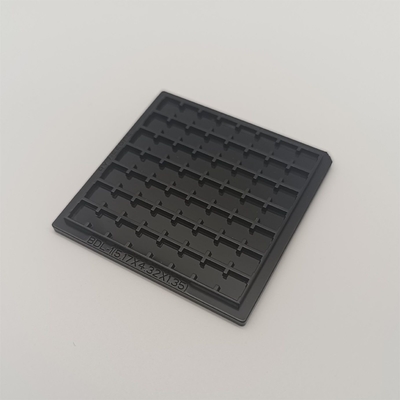

The Details of the HN22026 Waffle Pack
HN22026 waffle pack is made of industrial plastic PC. The raw materials can be reused and easily degraded after waste. It also has its own tray cover to use together. Single tray are not only small in size, but light in weight. At the same time, multiple trays can also be stacked, greatly saving the transportation cost.
The waffle pack has distinct advantages over regular tape, especially for small parts. It allows automatic loading of electronic parts to provide the safe and secure professional packaging for the parts. In addition, according to customers' different temperature, color, anti-static performance,cleanliness and other requirements, we can also customize exclusive trays for customers.
| Outline Line Size | 50.8*50.8*3.96mm | Brand | Hiner-pack |
| Model | HN22026 | Package Type | Die |
| Cavity Size | 0.95*1.25*0.46 | Matrix QTY | 7*8=56PCS |
| Material | PC | Flatness | MAX 0.2mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
The Application of HN22026 Chip Tray
IC Electronic Component
Semiconductor Micro and Nano Systems
| Outline Size | Material | Surface Resistance | Service | Flatness | Color |
| 2" | ABS.PC...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.2mm | Customizable |
| 3" | ABS.PC...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.25mm | Customizable |
| 4" | ABS.PC...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.3mm | Customizable |
| Custom size | ABS.PC...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | TBC | Customizable |
| Provide professional design and packaging for your products | |||||
Our Service
1. We have sample stock, also can help the client to choose which type is suitable for them.
2. We will reply you in any time if you have questions.
3. Choose suitable product for clients according to clients' requirement.
4. After mold customization, free samples will be provided until the customer tests OK, so as to remove the mass production quality concerns of customers before quantity.
FAQ
1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone, in case of any delays.
2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.
3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
