Product Details:
|
| Material: | PC | Color: | Black |
|---|---|---|---|
| Temperature: | 125°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | MPPO JEDEC Standard Tray,0.76mm Flatness JEDEC Standard Tray,Circuit Elements Jedec Matrix Trays |
||
MPPO Black JEDEC Standard Tray For Circuit Elements
In the electronics industry, there are professional standard for the loading, transportation and storage of various components. It is usually referred to as a Jedec matrix tray. The Jedec tray is made of a common industrial plastic by injection molding. It is suitable for all kinds of packaging. Our Hiner-pack is dedicated to the development and design of the most advanced Jedec tray. We has advanced mold processing, injection molding and testing equipment. To deliver customer satisfaction tray for our ultimate mission.

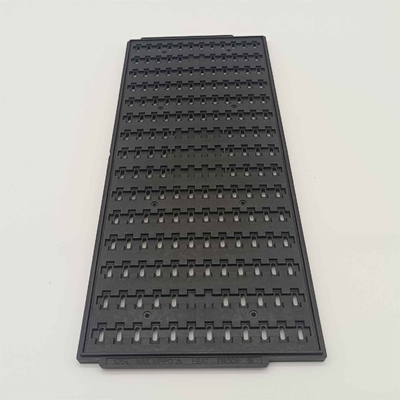

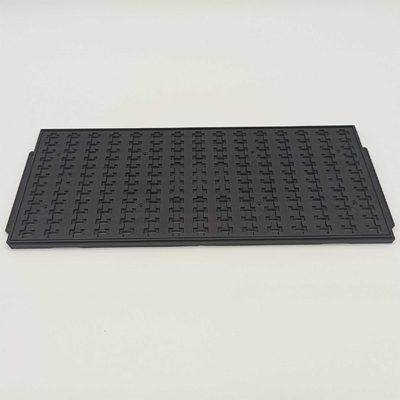

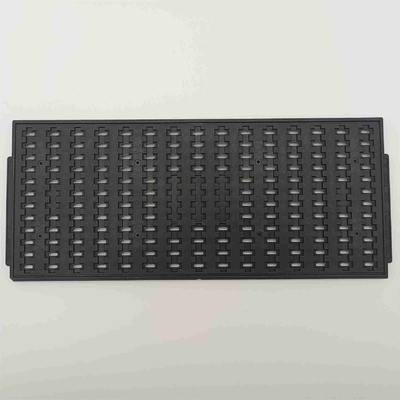

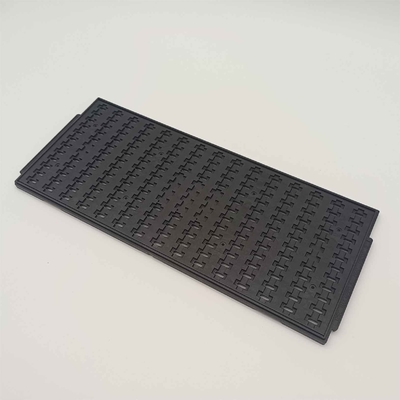

The Details of the HN22032 JEDEC Tray
The HN22032 tray is made strictly according to Jedec standard. The outer size is 12.7 *5.35 inch(322.6*135.9mm) and pocket size 11.6*4.4*1.4mm exclusively corresponds to customers' product. At the same time, the matrix design of 15*12 can accommodate customer products to the greatest extent. Our tray is beautiful and smooth, and its warpage is strictly controlled below 0.76mm.
In addition,it's main raw material is MPPO, which has wear resistance, temperature resistance, non-toxic and other characteristics. Trays made from this material are virtually unaffected by temperature and humidity.The product color is black. We can also customize various colors of trays according to customer needs, so as to facilitate the pickup of automatic equipment.
| Outline Line Size | 322.6*135.9*7.62mm | Brand | Hiner-pack |
| Model | HN22032 | Package Type | Devices |
| Cavity Size | 11.6*4.4*1.4mm | Matrix QTY | 15*12=180PCS |
| Material | PC | Flatness | MAX 0.76mm |
| Color | Black | Temperature | 125°C |
| Resistance | 1.0x10e4-1.0x10e11Ω | Original | China |
The Application of the HN22032 Matrix Tray
Optical Industry Military Industry
Micro and Nano System Embedded System
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
Advantages
1. Suitable for components or devices daily turnover or long-distance freight.
2. Can be stacked more layers;
3. Can be washed at high temperature;
4. Plastic waterproof, moisture-proof, improve the storage time of components;
5. No extrusion and breakage, Better protection components；
6. Reusable, quality assurance.
FAQ
1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whats app, in case of any delays.
2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.
3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
