Product Details:
|
| Material: | PC | Color: | Black |
|---|---|---|---|
| Temperature: | 125°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | Rohs JEDEC Matrix Tray,PC JEDEC Matrix Tray,Electronic Module Jedec Matrix Trays |
||

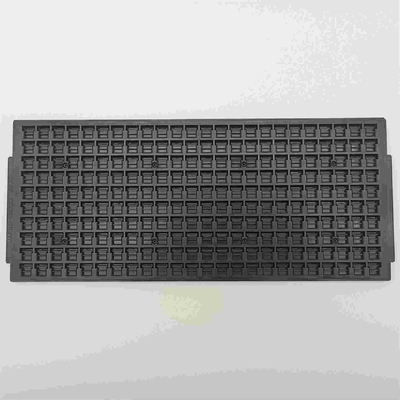

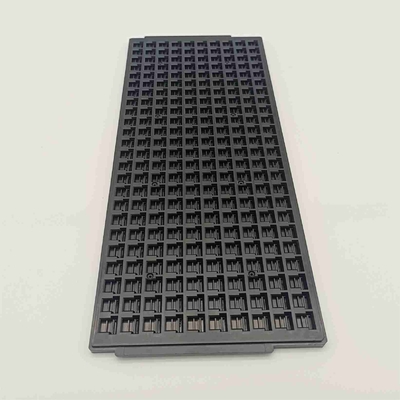

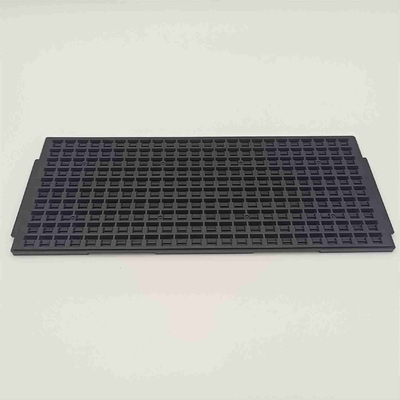

Rohs Black PC 8Pin Slot JEDEC Matrix Tray For Electronic Module
With the attention of the international community, environmental protection has become a key issue that all industries need to pay attention to. All products are required to meet the environmental protection and ROHS and other related standards. The raw materials of our tray will be sent to the third party for certification and testing. Meanwhile, the complete SGS report can also be provided for customers to check.
Because of the particularity of plastic products, product trays can also be reused. After damage, the product itself meets the degradation requirements. Customers don't have to worry about task contamination at all. At the same time, the 45 degree chamfer design allows the trays to be stacked against each other, greatly reducing the transportation space and cost.
The Details of the HN22031 JEDEC Tray
HN22031 JEDEC tray is made of PC, with strong impact resistance and enthusiasm resistance. At the same time, this kind of raw material has a high degree of transparency, which can be changed into various colors according to the need.The dimensions and flatness of the tray are in strict compliance with JEDEC international standards. The uniform matrix pockets in the tray correspond to the size and specifications of the customer's products, which can perfectly protect the customer's products.
In addition to the tray, we can also provide matching tray covers and clamps to meet the different needs of customers.Our professional cleaning, inspection and other departments, perfect guarantee the qualified rate of products. Our company has more than 10 years of experience in the production of this kind of products, can fully respond to the diversified needs of customers, to provide a set of design. Integrated production of one-stop packaging scheme.
| Outline Line Size | 322.32*135.9*7mm | Brand | Hiner-pack |
| Model | HN22031 | Package Type | Devices |
| Cavity Size | 8PIN | Matrix QTY | 24*10=240PCS |
| Material | PC | Flatness | MAX 0.76mm |
| Color | Black | Temperature | 110°C |
| Resistance | 1.0x10e4-1.0x10e11Ω | Original | China |
The Application of the HN22031 Matrix Tray
Semiconductor Electronic Component Factories
SMT Surfacing Factories Optical Industry
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
Our Service
1. We have sample stock, also can help the client to choose which type is suitable for them.
2. We will reply you in any time if you have questions.
3. Choose suitable product for clients according to clients' requirement.
4. After mold customization, free samples will be provided until the customer tests OK, so as to remove the mass production quality concerns of customers before quantity.
FAQ
Q1: Are you a manufacturer?
Ans:Yes, We have ISO 9000 Quality Management System.
Q2: What information should we supply if we want a quotation?
Ans: Drawing of your IC or component, Quantity and size normally.
Q3: How long you could prepare samples?
Ans:Normally 3 days. If customized one, open new mold 25~30days around.
Q4: How about batch order production?
Ans: Normally 5-8 days or so.
Q5:Do you inspect the finished products?
Ans:Yes, We will do inspection according to ISO 9000 standard and ruled by our QC staff
