|Matrix QTY:||8*13=104PCS||Place Of Origin:||CHINA|
|Surface Resistance:||1.0x10E4~1.0x10E11Ω||Clean Class:||General And Ultrasonic Cleaning|
|Injection Mold:||Lead Time 20~25Days,Mold Life Span: 30~450,000 Times||Molding Method:||Injection Moulding|
0.2mm Flatness 2 Inch Waffle Pack,
Anti Static 2 Inch Waffle Pack,
Permanent Waffle Pack Chip Trays
Permanent Anti-static 2 Inch Waffle Pack For Electronic Parts 0.2mm Flatness
The waffle pack is a common carrier of components, mainly used for transporting and handling tiny parts. If static electricity stays on electronic products, it will easily cause short circuit, which will cause damage to these sophisticated electronic products. so the anti-static tray is designed to avoid this situation.
By adding special polymer chains to the material, this gives it permanent electrostatic dissipative properties. At the same time, the product also has good mechanical strength and heat resistance. It will not change its anti-static performance due to the environment, time and temperature. This can greatly reduce the damage rate of electronic products in the production process.

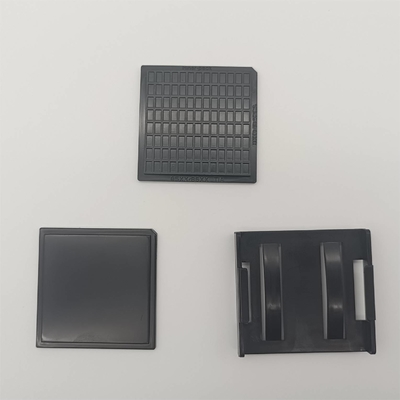

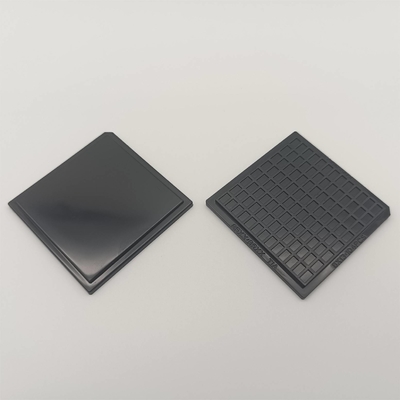

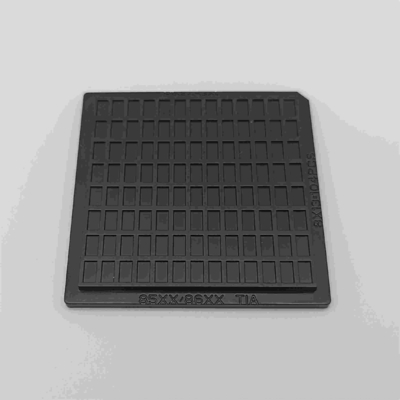

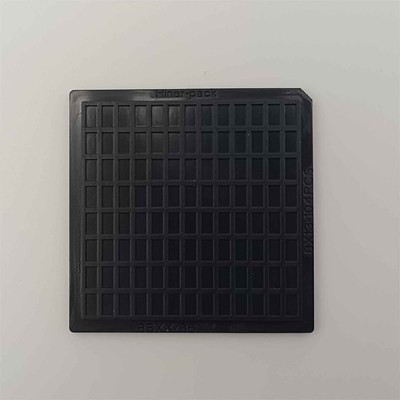

The Details of the HN22030 Waffle Pack Chip Tray
The HN22030 waffle pack is manufactured using PC material through injection molding. Its surface resistance value ranges from 1.0*10E4Ω to 1.0*10E11Ω, effectively dissipating electrostatic charges accumulated on product surfaces. The 8*13 matrix design is employed for optimal loading based on its compact pocket size of 2.3*4.3*0.5mm, while the chamfered edges at a 45-degree angle significantly reduce storage space requirements.
Additionally, it also supports ultrasonic cleaning with pure water. Our company is equipped with an independent purification room for this purpose, which can meet the increasing demand of customers for high cleanliness trays. With the gradual maturation of technology, waffle packs have become essential products for modern enterprises.
|Outline Line Size||50.8*50.8*4mm||Brand||Hiner-pack|
|Cavity Size||2.3*4.3*0.5||Matrix QTY||8*13=104PCS|
The Application of HN22030 Chip Tray
Electronics Industry Semiconductor
Optical Industry Military Industry
|Outline Size||Material||Surface Resistance||Service||Flatness||Color|
|Provide professional design and packaging for your products|
1.Light weight, saving transportation and packaging costs. Light weight,.
2.Size specification, compatible in any 2 ", 3 "or 4" Waffle Pack Feeder Machine.
3.Good anti-static performance, effectively ensure that the product is not damaged by anti-static release.
4.High temperature resistance, suitable for high temperature automation equipment assembly.
5.Corrosion resistance, suitable for all kinds of production conditions of products.
Q1: When Can I get the quotation?
Ans: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us your mail so that we will regard your inquiry priority.
Q2: What information should we supply if we want a quotation?
Ans: Drawing of your IC or component, Quantity and size normally.
Q3: What is the delivery time?
Ans: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 15-20 days after receiving the payment.
Q4:Can I get Free Samples?
Ans:Yes, If samples we have in stock would be provided for testing, but shipment should at your side.
Q5: Can we use our own logo or do OEM?
Ans: Yes, OEM is acceptable. Please send email to us for more details.
Q6: What is your terms of delivery?
Ans: We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
