Product Details:
|
| Material: | PC | Color: | Black |
|---|---|---|---|
| Warpage: | Less Than 0.3mm | Place Of Origin: | CHINA |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Clean Class: | General And Ultrasonic Cleaning |
| Injection Mold: | Lead Time 20~25Days,Mold Life Span: 30~450,000 Times | Molding Method: | Injection Moulding |
| High Light: | 0.3mm Waffle Pack Chip Trays,PC 4 Inch Waffle Pack,Stable 4 Inch Waffle Pack |
||

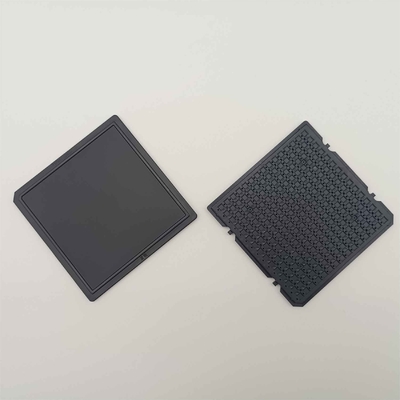

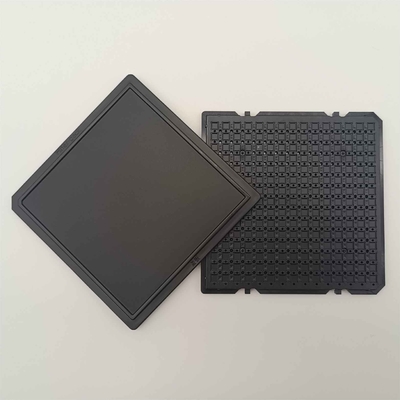

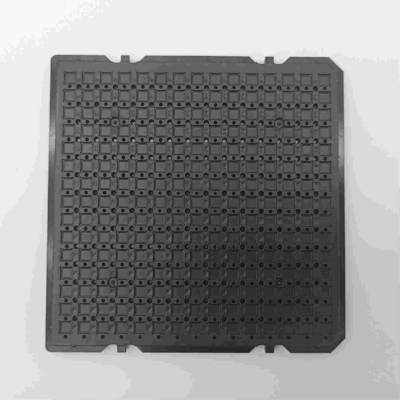

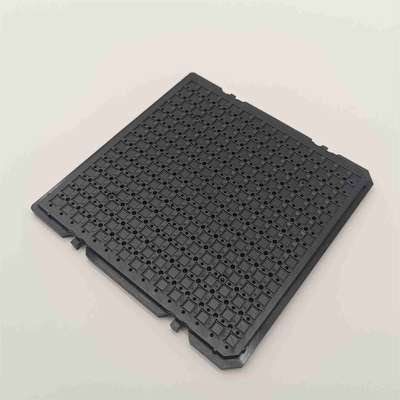

Customized 4 Inch PC Stable Waffle Pack Chip Tray 0.3 Flatness
The waffle pack serves as a carrier for semiconductor chip packaging, primarily utilized for safeguarding, storing and transporting. In comparison to conventional packaging, it is capable of accommodating smaller products while also providing anti-impact and anti-static functionalities. This makes it highly suitable for modern production and transportation needs. Additionally, the tray can be reused multiple times and the product can be fully degraded in case of damage. All products are compliant with ROHS international environmental standards.
The Details of the HN22028 Waffle Pack
The HN22028 waffle pack is specifically designed to provide customers with clean and secure packaging for their products during transportation. Made primarily of PC, this material offers excellent stability and protection for electronic items. Additionally, customers can select the appropriate tray size to prevent product movement or displacement within the package.
To further meet storage needs, we offer a range of matching lids, clamps, and Tyvek paper options. The waffle packs are loaded utilizing pick and place equipment to ensure that each pocket's interior accommodates a part or component. Once loaded, the parts are shielded with tyvek paper before being secured in place by a lid, and finally matching clamps hold them firmly together.
Product Application
Aerospace Industry Electronic Component
Embedded System Micro and Anon System
| Outline Size | Material | Surface Resistance | Service | Flatness | Color |
| 2" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.2mm | Customizable |
| 3" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.25mm | Customizable |
| 4" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.3mm | Customizable |
| Custom size | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | TBC | Customizable |
| Provide professional design and packaging for your products | |||||
Advantages
1. Light weight, saving transportation and packaging costs.
2. Size specification, compatible in any 2 ", 3 "or 4" Waffle Pack Feeder Machine.
3. Good anti-static performance, effectively ensure that the product is not damaged by anti-static release.
4. High temperature resistance, suitable for high temperature automation equipment assembly.
5. Corrosion resistance, suitable for all kinds of production conditions of products.
6. Matrix arrangement design, under the premise of protecting the product, the maximum capacity design, cost saving.
7. Edge chamfer design, effectively prevent stacking error, correct the direction of placement.
FAQ
Q1: Are you a manufacturer or a trading company?
Ans: We are a 100% specialized manufacturer in packaging for over 10 years, with a workshop area of 1500 square meters located in Shenzhen, China.
Q2: What materials do your products use?
ABS.PC.PPE.MPPO.PEI.HIPS...etc
Q3: Can you assist with design?
Yes, we can accept customization and package according to your requirements.
Q4: May I request some samples prior to placing a bulk order? Yes, we can provide free samples from our stock, however, the shipping fee will be at your expense.
Q5: Would it be possible for you to incorporate my logo into the product? Certainly, we are able to customize the product with your logo. Kindly show us your logo first.
Q6: When can we expect to receive the samples? If you express interest in any of our stocked items, we can send them out immediately.
