14*5 Pes Black Matrix Tray Jedec For Electronic Modules

14*5 Pes Black Matrix Tray Jedec For Electronic Modules
14*5 Pes Black Matrix Tray Jedec For Electronic Modules  14*5 Pes Black Matrix Tray Jedec For Electronic Modules  14*5 Pes Black Matrix Tray Jedec For Electronic Modules  14*5 Pes Black Matrix Tray Jedec For Electronic Modules

Large Image :  14*5 Pes Black Matrix Tray Jedec For Electronic Modules

Product Details:
Place of Origin: Shenzhen China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN22038
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: $1.35~$2.38(Prices are determined according to different incoterms and quantities)
Packaging Details: 80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 2500PCS~3000PCS/per day

14*5 Pes Black Matrix Tray Jedec For Electronic Modules

Material: PES Color: Black
Temperature: 135°C Property: ESD
Surface Resistance: 1.0x10E4~1.0x10E11Ω Flatness: Less Than 0.76mm
Clean Class: General And Ultrasonic Cleaning Incoterms: EXW,FOB,CIF,DDU,DDP
Customized Service: Support Standard And Non-standard,precision Machining Injection Mold: Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.)
High Light:

14*5 tray jedec


pes tray jedec


electronic modules jedec standard matrix tray

14*5 PES Black Matrix Tray For Electronic Modules


In the electronics industry, various modules have professional trays for transportation and storage. One of the most common is the Jedec matrix tray,it is generally made of industrial plastic injection molding to achieve efficient and fast production. Our Hiner-pack is dedicated to the development and design of various Jedec tray, with a professional technical team and advanced tooling, injection molding, testing equipment. All steps and operations are subject to strict quality control, so as to deliver customer satisfaction product.


The Details of the HN22038 JEDEC Tray

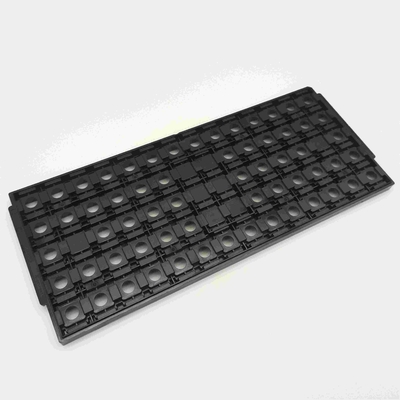

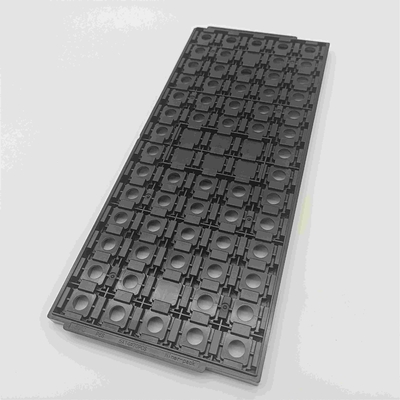

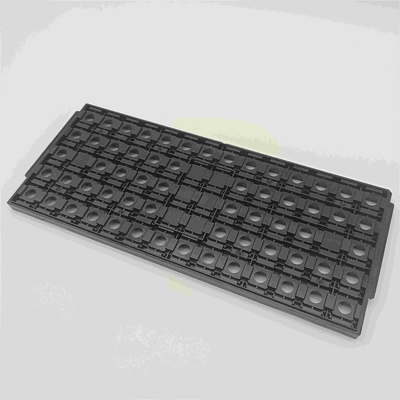

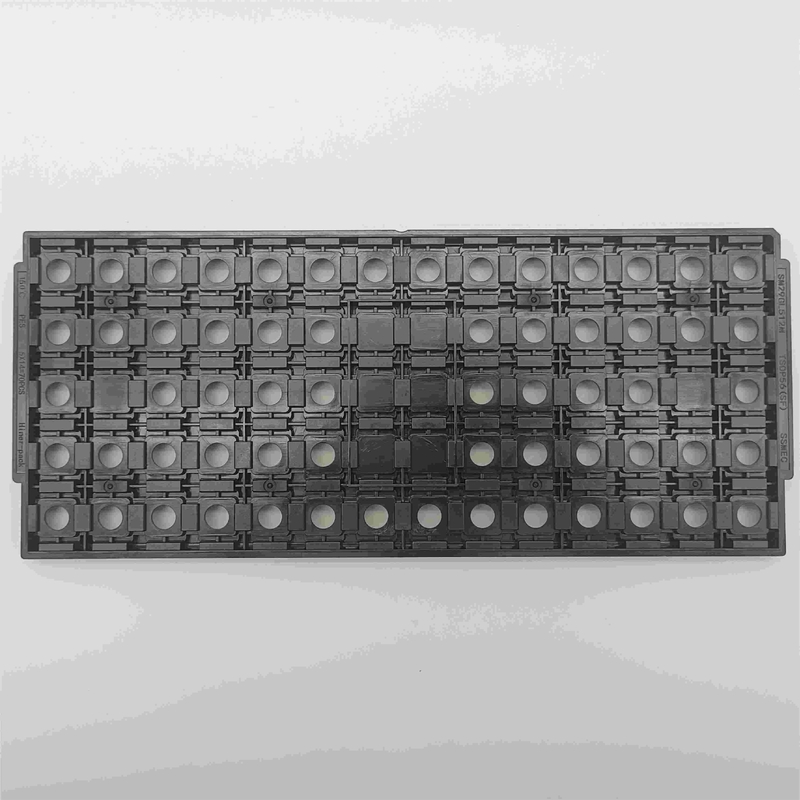

The HN22038 JEDEC tray is mainly made of PES material by injection molding, which makes it not only sturdy and durable, but also has good high temperature resistance. The overall dimension is 322.6*135.9*12.19mm and the pocket size is 14.15*18.55*1.15mm. According to the fixed pocket size, we design the most reasonable 14 x 5 matrix arrangement. While ensuring product safety, it can accommodate customers' products to the greatest extent, thus saving the transportation costs.


The matrix tray are not only beautiful and smooth, the warpage is strictly controlled below 0.76mm. In addition, we can also customize various colors of tray according to customer requirements, so as to facilitate the identification of automatic equipment. Moreover, the Jedec tray can be recycled and easily degradable after waste, so the customers have no environmental concerns.

Outline Line Size 322.6*135.9*12.19mm Brand Hiner-pack
Model HN22038 Package Type N/A
Cavity Size 14.15*18.55*1.15mm Matrix QTY 14*5=70PCS
Material PES Flatness MAX 0.76mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS


Application of the HN22038 Matrix Tray


Optical Industry                          Embedded System

Micro and Anon System             Semiconductor

Material Bake Temperature Surface Resistance
PPE Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Powder Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Glass Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
PEI+Carbon Fiber Max 180°C 1.0*10E4Ω~1.0*10E11Ω
IDP Color 85°C 1.0*10E6Ω~1.0*10E10Ω
Color, temperature and other special requirements can be customized



1.Flexible OEM service: we can produce products according to customer’s sample or design.

2.Various Materials: the material can be MPPO.PPE.ABS.PEI.IDP...etc.

3.Complicated workmanship: tooling making, Injection molding,Production

4.Comprehensive customer service: from customer consultation to after sales service.

6.Honest but competitive price and Quality assured quotation.

7.10 years experience of OEM for USA and EU customers.

8.We have our own factory and can control quality in high level and produce products quickly and flexibly.

14*5 Pes Black Matrix Tray Jedec For Electronic Modules  0


Q1: Are you a manufacturer?

Ans:Yes, We have ISO 9000 Quality Management System.


Q2: What information should we supply if we want a quotation?

Ans: Drawing of your IC or component, Quantity and size normally.


Q3: How long you could prepare samples?

Ans:Normally 3 days. If customized one, open new mold 25~30days around.


Q4: How about batch order production?

Ans: Normally 5-8 days or so.


Q5:Do you inspect the finished products?

Ans:Yes, We will do inspection according to ISO 9000 standard and ruled by our QC staff.


Q6. Do you arrange shipment for the products?

It’s depends on our incoterms,If FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.
