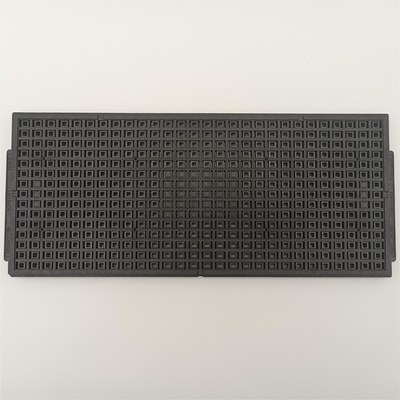

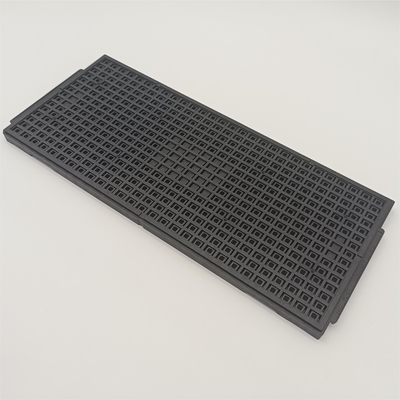

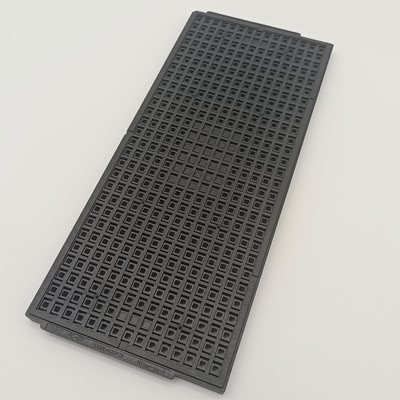

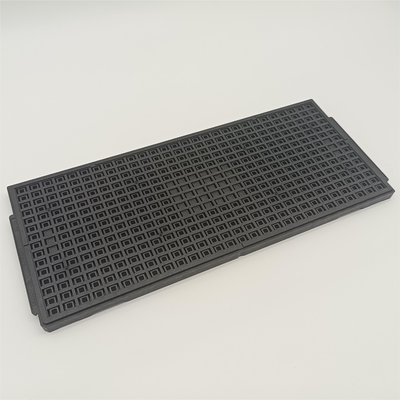

Matrix PES Black JEDEC Tray for Electronic Parts 0.76mm Flatness
This tray is a kind of good high-temperature resistant tray, mainly used for storing and transporting chips, wafers, semiconductor devices and other high-precision, high-sensitivity electronic components. Trays are generally made of materials with good high temperature resistance, and the material PES is a good choice. Chip tray can perfectly withstand high temperature baking, effectively protect chips and other high-sensitivity electronic components, reduce damage and failure caused by vibration, temperature change and other factors, improve product quality and production efficiency.
The Advantage of the HN22040 JEDEC Tray
HN22040 Jedec tray is made by injection molding process and customized production according to the chip size, ensuring accurate storage and transportation for customers. This kind of tray has high strength and durability, can be used repeatedly, reduce costs, improve production efficiency. At the same time, its shape specification is fixed, and easy to store and manage. The adsorption position will be designed in the middle of the cavity to facilitate the automatic equipment to pick up the installed product.
At the same time, the surface resistance of the tray is 1.0x10e4-1.0x10e11Ω, and there are 15 × 28 pockets distributed inside. Reasonable matrix design maximizes packaging of customers' products to ensure smooth loading. Not only does it fit perfectly to the product size, but it also provides comprehensive protection in different environments. In addition, the 45-degree chamfering design is easier to identify and locate by the device, thus achieving the effect of automatic use and reducing labor costs.
| Outline Line Size | 322.6*135.9*12.19mm | Brand | Hiner-pack |
| Model | HN22040 | Package Type | N/A |
| Cavity Size | 5.43*8.2*1.6mm | Matrix QTY | 15*28=420PCS |
| Material | PES | Flatness | MAX 0.76mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
The Application of HN22040 Matrix Tray
Electronic Component Factory SMT Surfacing Factory
Optical Industry Military Industry
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
Advantage
1. Have exported for more than 10 years
2. Have professional engineer and efficient management
3. Delivery time is short, normally in stock
4. Small quantity is allowed.
5. The best & professional sale services, 24hours Response.
6. Our products have been exported to USA, Germany, UK, Europe, Korea,Japan...etc, Win many big famous customer reputation.
FAQ
Q1: Are you a manufacturer?
Ans:Yes, We have ISO 9000 Quality Management System.
Q2: What information should we supply if we want a quotation?
Ans: Drawing of your IC or component, Quantity and size normally.
Q3: How long you could prepare samples?
Ans:Normally 3 days. If customized one, open new mold 25~30days around.
Q4: How about batch order production?
Ans: Normally 5-8 days or so.
Q5:Do you inspect the finished products?
Ans:Yes, We will do inspection according to ISO 9000 standard and ruled by our QC staff.
