Product Details:
|
| Material: | PES | Color: | Black |
|---|---|---|---|
| Temperature: | 135°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | customized jedec matrix trays,iso standard jedec matrix trays,iso 9001 jedec standard matrix tray |
||
Black Customized JEDEC Matrix Trays for Electronic Component Meet ISO 9001
The ISO 9001 was first published by the International Organization for Standardization (ISO) in 1987. It is defined as an international standard that specifies the requirements for a quality management system (QMS). This standard is used by an organization or plant to demonstrate its ability to consistently provide products and services that meet customer and regulatory requirements. It is the most popular standard in the ISO 9000 series, and the only one in the series that an organization can certify the standard. Any business must follow the guidelines of ISO 9001 standards to meet customer requirements and regulatory requirements.

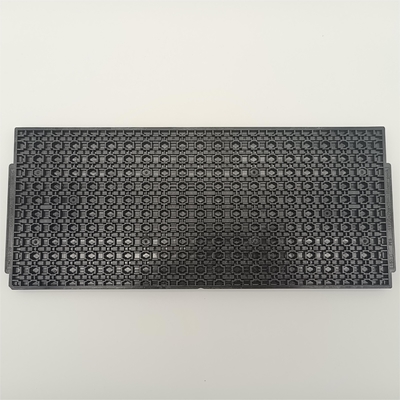

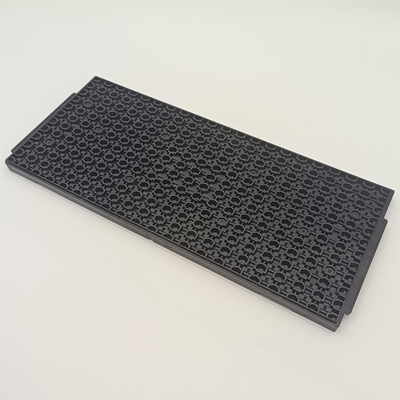

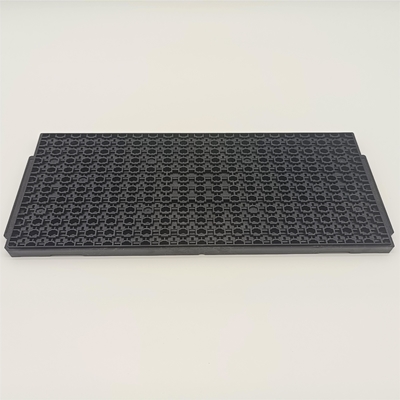

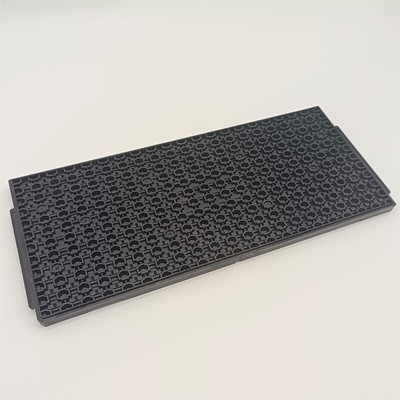

The Details of the HN22041 Jedec Tray
The HN22041 tray has good thermal stability to avoid cracking phenomenon at high temperature. And it fully complies with ROHS international environmental standards, raw materials can be recycled. The recovered raw materials are still perfectly functional and can be reused for production. This can reduce the customer's production costs and shorten the delivery time.
Compared with traditional common packaging, our tray is small and light in weight. The 11*20 matrix design can accommodate more products, greatly reducing the customer's transportation costs. In addition, if the tray does not meet customer needs, we can also provide professional customized services according to the products and requirements. Before the formal production of customized trays, we will also send the customized tray samples to customers for testing and confirmation.
| Outline Line Size | 322.6*135.9*12.19mm | Brand | Hiner-pack |
| Model | HN22041 | Package Type | N/A |
| Cavity Size | 4.59*8.82*1.95mm | Matrix QTY | 11*20=220PCS |
| Material | PES | Flatness | MAX 0.76mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
Application of the HN22041 Matrix Tray
Electronics industry Semiconductor
Optical Industry Military Industry
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
Advantages
1.Flexible OEM service: we can produce products according to customer’s sample or design.
2.Various Materials: the material can be MPPO.PPE.ABS.PEI.IDP...etc.
3.Complicated workmanship: tooling making, Injection molding,Production
4.Comprehensive customer service: from customer consultation to after sales service.
5.10 years experience of OEM for USA and EU customers.
6.We have our own factory and can control quality in high level and produce products quickly and flexibly.
FAQ
Q1: Are You Manufacturer or Trade Company?
We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.
Q2: What is the material of your product?
ABS.PC.PPE.MPPO.PEI.HIPS...etc
Q3: Can you help with the design?
Yes, we can accept your customization and do the packaging for you according to your requirement.
Q4:Can I order if quantity less than MOQ?
Yes and it would be taken as sample order to production. We take more serious on sample order.
Q5. Can I get Free Samples?
Yes, If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.
Q6. Do you arrange shipment for the products?
It’s depends on our incoterms,If FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.
