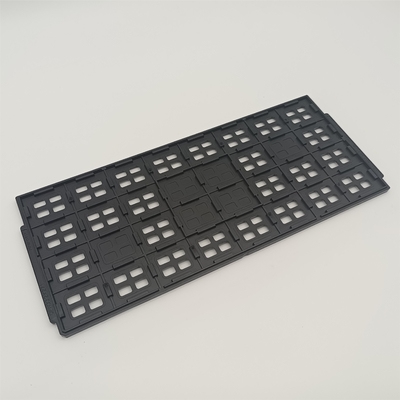

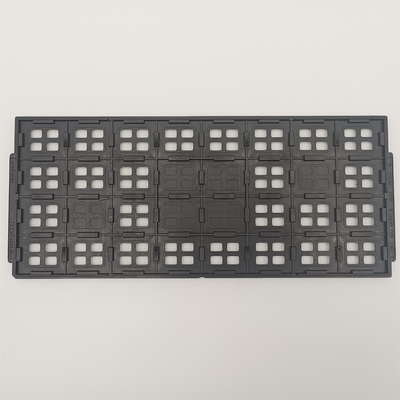

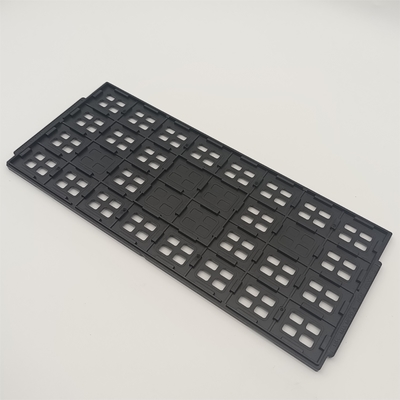

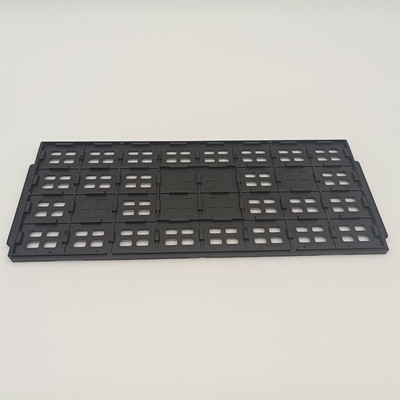

Black Esd Jedec Matrix Trays For Integrated Circuit

Black Esd Jedec Matrix Trays For Integrated Circuit
Black Esd Jedec Matrix Trays For Integrated Circuit Black Esd Jedec Matrix Trays For Integrated Circuit Black Esd Jedec Matrix Trays For Integrated Circuit Black Esd Jedec Matrix Trays For Integrated Circuit

Large Image :  Black Esd Jedec Matrix Trays For Integrated Circuit

Product Details:
Place of Origin: Shenzhen China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN22045
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: $1.35~$2.38(Prices are determined according to different incoterms and quantities)
Packaging Details: 80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 2500PCS~3000PCS/per day

Black Esd Jedec Matrix Trays For Integrated Circuit

Material: PES Color: Black
Temperature: 135°C Property: ESD
Surface Resistance: 1.0x10E4~1.0x10E11Ω Flatness: Less Than 0.76mm
Clean Class: General And Ultrasonic Cleaning Incoterms: EXW,FOB,CIF,DDU,DDP
Customized Service: Support Standard And Non-standard,precision Machining Injection Mold: Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.)
High Light:

integrated circuit jedec matrix trays


black jedec matrix trays


integrated circuit jedec standard matrix tray

Black ESD JEDEC Matrix Trays for Integrated Circuit


The Semiconductor product are usually electrostatic discharge sensitive devices (ESDS), which requires specific precautions in terms of transport and storage. On integrated circuits, the discharge of charged objects caused by human touch or processing tools may generate high current, which can damage or even destroy sensitive semiconductor structures. Therefore, anti-static protection measures must be taken to prevent contact with live parts and prevent static electricity from damaging the product. The ESD JEDEC tray is therefore designed to avoid this phenomenon.


The Details of the HN22045 JEDEC Matrix Tray


The HN22045 JEDEC tray is mainly made of a common industrial material MPPO,which has excellent anti-static and high temperature resistance.The maximum baking temperature of the tray is 135 °C, and when the temperature is exceeded, the tray size will change. Different raw materials determine the high temperature resistance of the tray, and customers can choose according to their own requirements. Such as color, anti-static properties, dimensional stability and maximum temperature rating.


The JEDEC tray is designed as a 4 × 8 matrix and the spacing between the pockets is 38.2*32.1mm, which allows the automation equipment to position the product more accurately. Regarding the production of tray, our company is equipped with advanced mold processing and injection molding equipment, as well as a variety of testing equipment to ensure product quality. Our designed trays comply with JEDEC international standards and have strong versatility. It can provide protection for a variety of packaged products while reducing transportation costs.

Outline Line Size 322.6*135.9*7.62mm Brand Hiner-pack
Model HN22045 Package Type Die
Cavity Size 33.53*27.37*3.4 Matrix QTY 4*8=32PCS
Material MPPO Flatness MAX 0.76mm
Color Black Place of origin CHINA
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS


Application of the HN22045 Matrix Tray


Semiconductor Industry                     Electronics Industry

Solar Photovoltaic Industry                Medical Industry

Material Bake Temperature Surface Resistance
PPE Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Powder Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Glass Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
PEI+Carbon Fiber Max 180°C 1.0*10E4Ω~1.0*10E11Ω
IDP Color 85°C 1.0*10E6Ω~1.0*10E10Ω
Color, temperature and other special requirements can be customized



1.We offer ESD total Solution to Customer, Many other related product available if needed.

2.OEM is welcomed or design as customer request.

3.The best & professional sale services.

4.Honest but competitive price and Quality assured quotation.

5.100% QC inspection before shipment.

Black Esd Jedec Matrix Trays For Integrated Circuit 0



Q1: Are You Manufacturer or Trade Company?

We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.

Q2: What is the material of your product?


Q3: Can you help with the design?

Yes, we can accept your customization and do the packaging for you according to your requirement.

Q4: How can I get the quotation of the custom products ?

Let us know the size of your IC or component thickness,and then we can make a quotation for you.

Q5: Can I get some samples before making a bulk order?

Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.

Q6: Could you put my logo in our product?

Yes, we can put your logo in our product, show us your logo firstly please.
