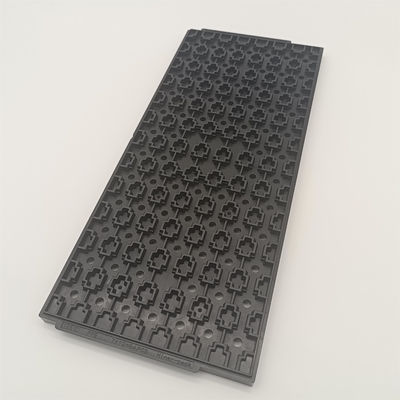

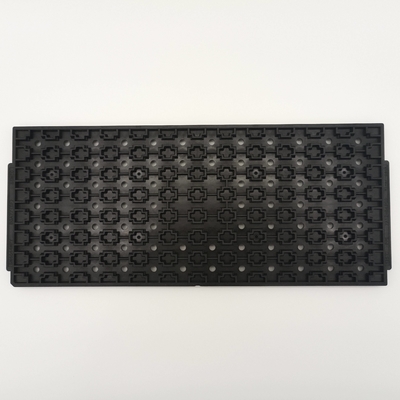

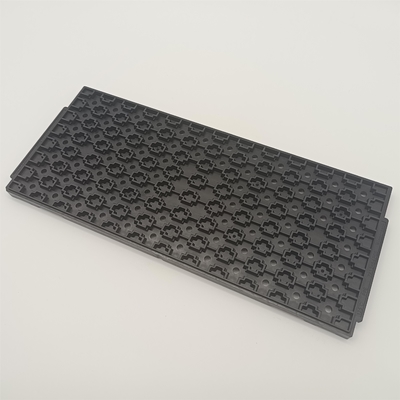

PES Material ESD JEDEC Matrix Tray Warpage Less Than 0.76mm

PES Material ESD JEDEC Matrix Tray Warpage Less Than 0.76mm

Brand Name: Hiner-pack
Model Number: HN22049
MOQ: 1000 pcs
Price: $1.35~$2.38(Prices are determined according to different incoterms and quantities)
Payment Terms: T/T
Supply Ability: The capacity is between 2500PCS~3000PCS/per day
Detail Information
Place of Origin:
Shenzhen China
Certification:
ISO 9001 ROHS SGS
Material:
PES
Color:
Black
Temperature:
135°C
Property:
ESD
Surface Resistance:
1.0x10E4~1.0x10E11Ω
Flatness:
Less Than 0.76mm
Clean Class:
General And Ultrasonic Cleaning
Incoterms:
EXW, FOB, CIF, DDU, DDP
Customized Service:
Support Standard And Non-standard,precision Machining
Injection Mold:
Customized Case Need (Lead Time 25~30Days, Mold Life Span: 300,000 Times.)
Packaging Details:
80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm
Supply Ability:
The capacity is between 2500PCS~3000PCS/per day
Highlight:

esd jedec matrix trays

,

esd jedec standard matrix tray

,

0.76mm jedec standard matrix tray

Product Description

PES Material ESD JEDEC Matrix Tray Warpage Less Than 0.76mm

Our JEDEC trays combine standard compliance with flexible customization for chip and module compatibility.


The Electrostatic discharge (ESD) is the transfer of electric charge between two objects. Due to the increasing use of the plastic coating materials, problems may arise after repeated use of these insulating materials. So electrostatic discharge (ESD) can occur between a charged surface and a nearby grounded object. This can lead to unintentional interference or damage to sensitive electronics in devices and sensors. Therefore, for different customer needs, it is particularly important to choose different tray materials.


The Details of the HN22049 JEDEC Tray


The HN22049 JEDEC tray is primarily made from PES material, which is a reusable industrial raw material. Reusing excess materials in the manufacturing process can reduce manufacturing costs and shorten lead times. These materials both follow the concept of circular economy and still have a perfect material function.


Structurally, according to the fixed pocket size, our professional team designed the most reasonable 7*12 matrix. Under the premise of protecting customer products, it can accommodate customer products to the maximum extent. At the same time, strict flatness control and 45-degree chamfer design also make the tray easy to stack and identify. From product design to delivery, we can provide a complete set of high-quality packaging services to perfectly protect customers' products.

Advantage:

1. Have exported for more than 12 years.
2. Have a professional engineer and efficient management.
3. Delivery time is short, normally in stock.
4. A small quantity is allowed.
5. The best & professional sales services, 24-hour Response.
6. Our products have been exported to the USA, Germany, the UK, Europe, Korea, Japan, etc.

7. The factory has an ISO certificate. The product complies with the RoHS standard.

Application:

Electronics Industry, Semiconductor, Optical Industry, Military Industry

Technical Parameters:

BrandHiner-packOutline Line Size322.6*135.9*12.19mm
ModelHN22049Cavity Size9.5*15.5*6.52mm
Package TypeDieMatrix QTY7*12=84PCS
MaterialPESFlatnessMAX 0.76mm
ColorBlackServiceAccept OEM, ODM
Resistance1.0x10e4-1.0x10e11ΩCertificateRoHS, SGS

Reference to the temperature resistance of different materials with the JEDEC Tray:

MaterialBake TemperatureSurface Resistance
PPEBake 125°C~Max 150°C1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon FiberBake 125°C~Max 150°C1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon PowderBake 125°C~Max 150°C1.0*10E4Ω~1.0*10E11Ω
MPPO+Glass FiberBake 125°C~Max 150°C1.0*10E4Ω~1.0*10E11Ω
PEI+Carbon FiberMax 180°C1.0*10E4Ω~1.0*10E11Ω
IDP Color85°C1.0*10E6Ω~1.0*10E10Ω
Color, temperature, and other special requirements can be customized

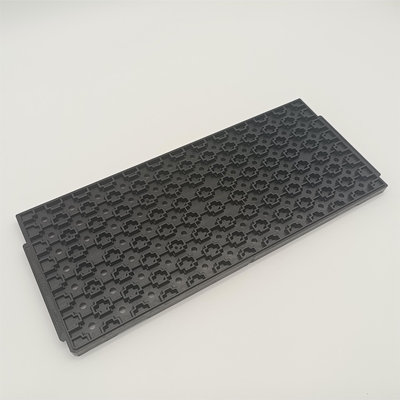

PES Material ESD JEDEC Matrix Tray Warpage Less Than 0.76mm 0
FAQ:

Q1: Are You a Manufacturer or a Trade Company?

Ans: We are a 100% Manufacturer specializing in packaging for over 12 years with a 1500 square meter workshop area, located in Shenzhen, China.

Q2: What is the material of your product?

Ans: ABS, PC, PPE, MPPO, PEI, HIPS, etc.

Q3: Can you help with the design?

Ans: Yes, we can accept your customization and do the packaging for you according to your requirements.

Q4: How can I get the quotation for the custom products?

Ans:Let us know the size of your IC or component thickness,and then we can make a quotation for you.

Q5: Can I get some samples before making a bulk order?

Ans:Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.

Q6: When can we get the samples?

Ans: We can send them right now if you are interested in something we have in stock.

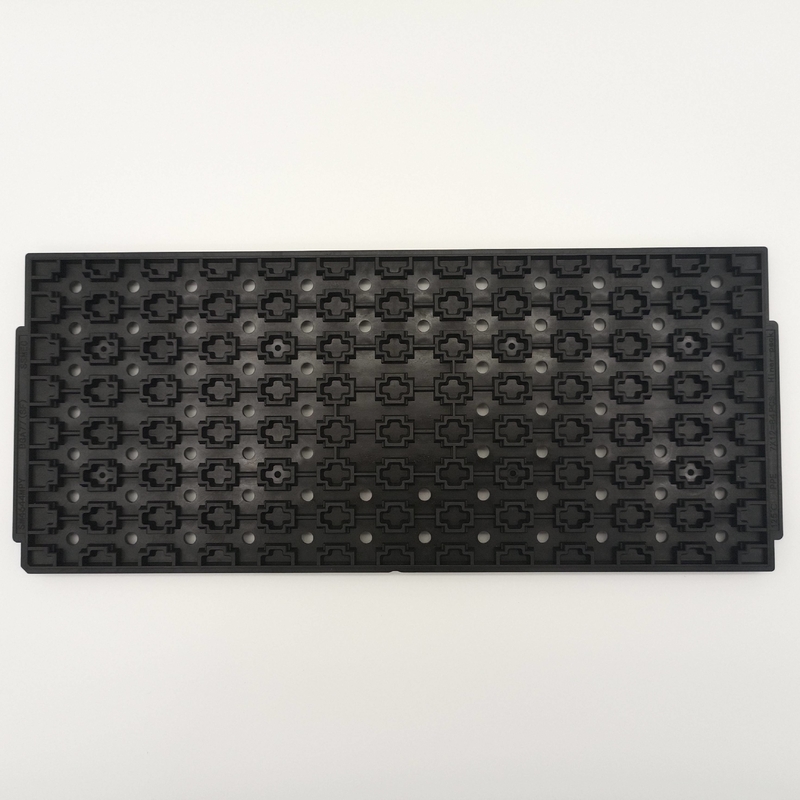

PES Material ESD JEDEC Matrix Tray Warpage Less Than 0.76mm 1
