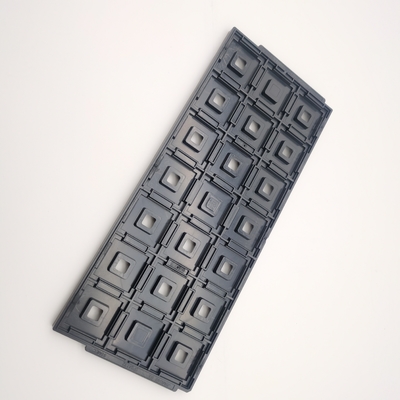

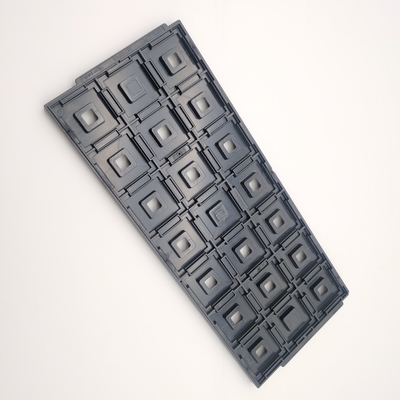

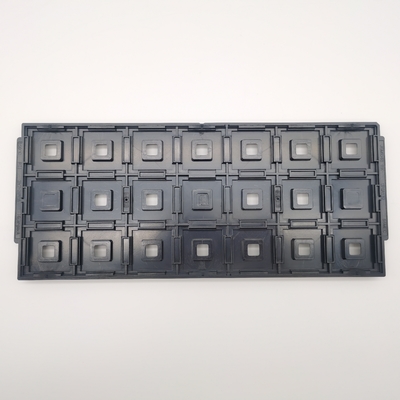

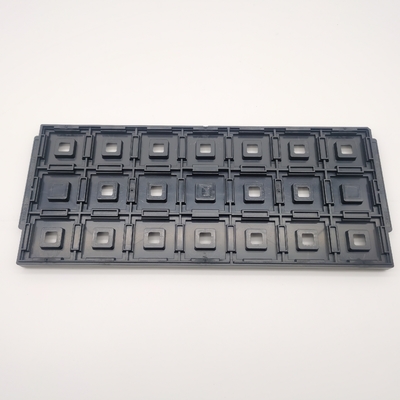

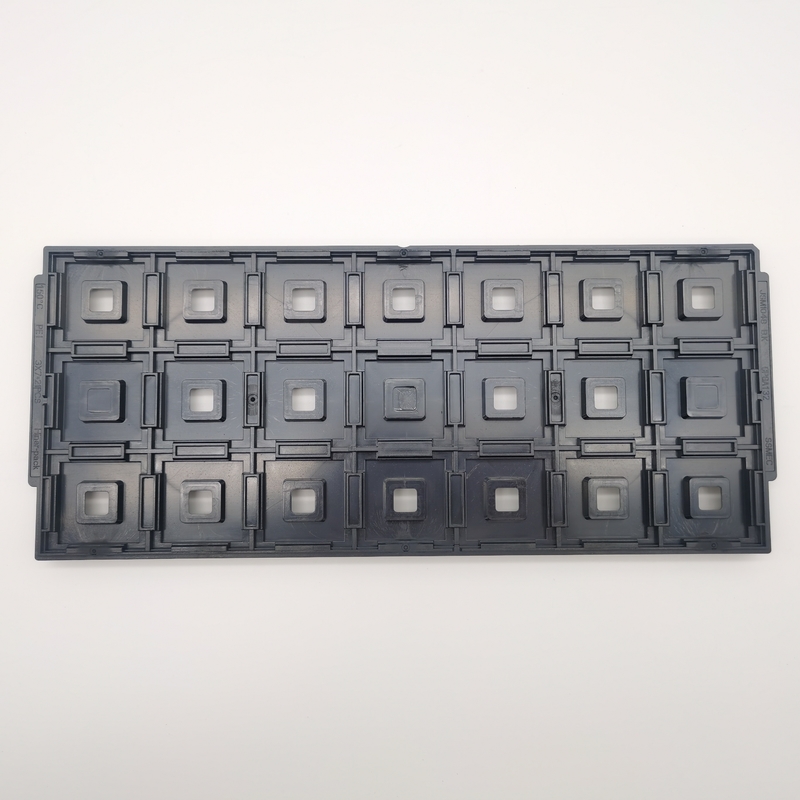

QFP Jedec IC Trays With Rectangular Shape And Strong Versatility

Brand Name:	Hiner-pack
Model Number:	JEDEC TRAY SERIES
MOQ:	1000 pcs
Price:	TBC
Payment Terms:	100% Prepayment
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO 9001 SGS ROHS

IC Type:

BGA,QFP,QFN,LGA,PGA

Color:

Black

Application:

IC Packaging

Surface Resistance:

1.0*10e4-1.0*10e11Ω

Tray Shape:

Rectangular

Tray Features:

Stackable

Tray Weight:

120~200g

Material:

MPPO.PPE.ABS.PEI.IDP

Packaging Details:

80~100pcs/carton

Supply Ability:

2000PCS/Day

Highlight:

QFP Jedec IC Trays

Rectangular Shape Jedec IC Trays

JEDEC IC matrix trays

Product Description

QFP Jedec IC Trays With Rectangular Shape And Strong Versatility

Protect your chips during transit and storage with custom cavity JEDEC trays designed for your exact product form factor.

The JEDEC matrix trays are all of the same size: 12.7 x 5.35 inches (322.6 x 136mm). They are considered low-profile trays, having a thickness of 0.25-inch (6.35mm). These trays can hold the majority of standard components, including but not limited to: BGA, CSP, QFP, TQFP, QFN, TSOP, and SOIC

Features:

• Standardization -- JEDEC IC matrix trays have become the industry standard for most semiconductor manufacturing equipment. Their widespread availability and global acceptance have made them the go-to choice for a variety of production needs.

• Packaging -- From the outside, these trays may look like any other containers. However, the JEDEC matrix tray outline has been specifically designed with plenty of room for stacking. Each tray can also be used as a cover for the tray below it.

• Transportation & Storage -- Being able to stack and store these trays makes them ideal for both short and long-distance transportation. In addition, when loaded with parts, the JEDEC matrix trays easily move through various processes and equipment.

• Protection -- Constructed out of materials that are strong and sturdy, JEDEC matrix trays provide physical safeguards to their contents. Furthermore, the materials used are often designed to provide electrical protection from static electricity, ensuring their parts stay safe throughout the entire assembly process.

Technical Parameters:

Usage	Packaging of Electronic Components, Optical device,
Feature	ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly
Material	MPPO.PPE.ABS.PEI.IDP...etc
Color	Black.Red.Yellow.Green.White and custom color
Size	Customized size, rectangle, circle shape
Mold type	Injection Mold
Design	Original sample, or we can create the designs
Packing	By Carton
Sample	Sample time: after the draft is confirmed and payment is arranged
Sample	Sample charge: 1. Free for stock samples 2. Custom tray negotiated
Lead Time	5-7 Working days
Lead Time	The exact time should be according to the ordered quantity

Applications:

JEDEC Matrix Trays are tailor-made to serve in a precise manner, and at the same time, protect parts in an automated environment. It simplifies many programming tasks because of its well-defined array. JEDEC Matrix Trays are popularly used for semiconductors as well as other electronic components, optical and photonic products, and even just mechanic parts. Companies choose to use JEDEC Matrix Trays due to their great benefits, such as having pick and place automation, and standardized process equipment. What's more, the trays are mainly crafted of ESD-safe engineering plastic.

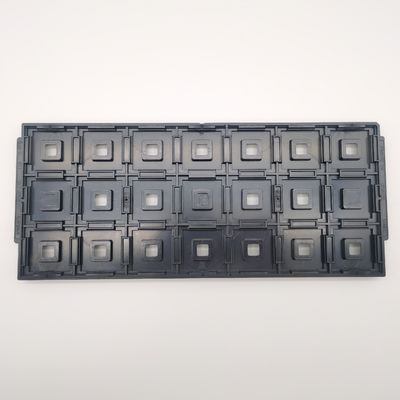

jedec tray QFP - 2
