Product Details:
|
| Material: | MPPO.PPE.ABS.PEI.IDP | Tray Shape: | Rectangular |
|---|---|---|---|
| Tray Weight: | 120~200g | Tray Features: | Stackable |
| Surface Resistance: | 1.0*10e4-1.0*10e11Ω | Size: | 322.6*135.9mm |
| IC Type: | BGA,QFP,QFN,LGA,PGA | Application: | IC Packaging |
| High Light: | IC Matrix Trays,Rectangular IC Matrix Trays,Low Profile JEDEC Matrix Trays |
||

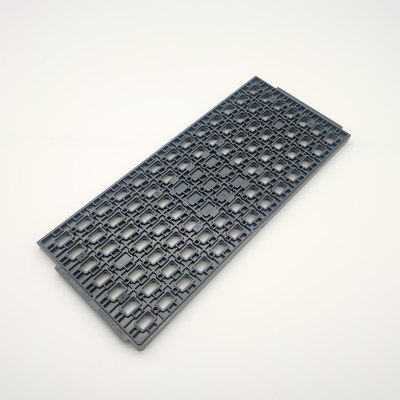

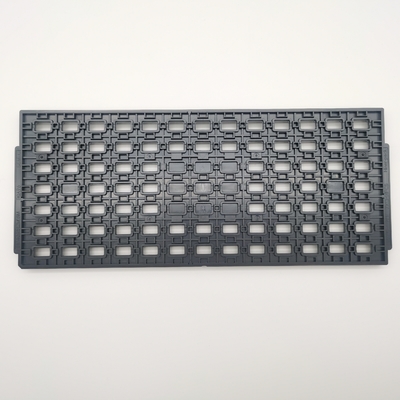

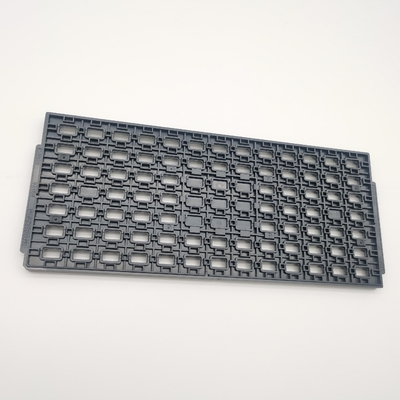

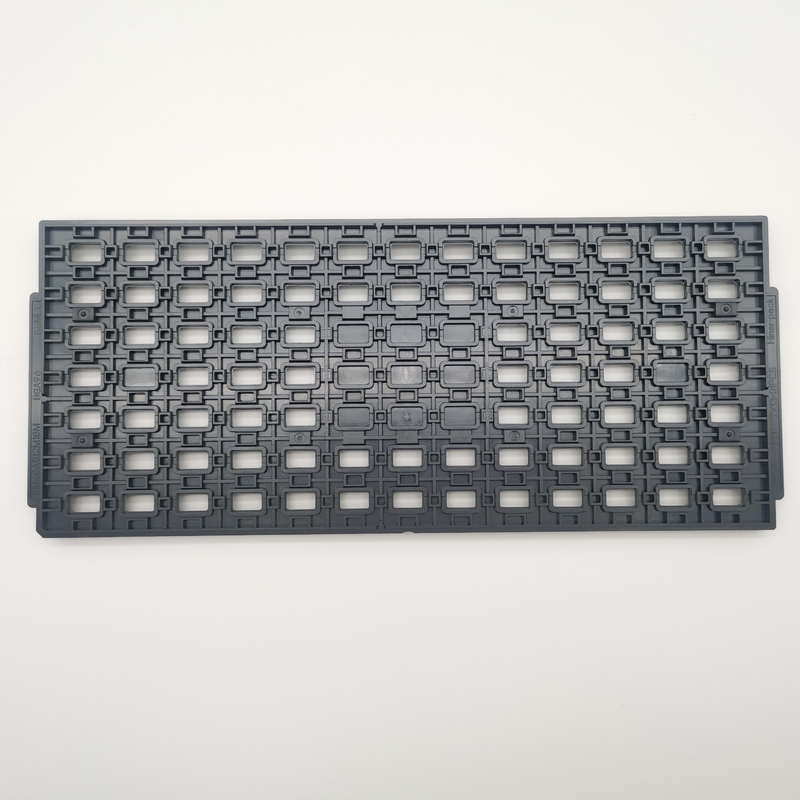

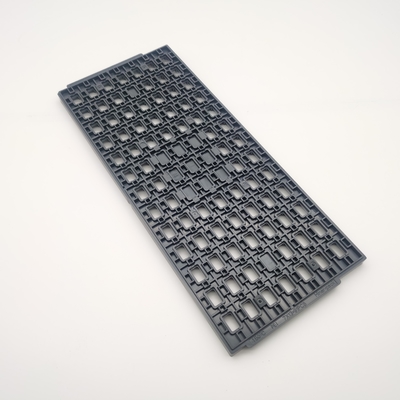

JEDEC matrix trays come in a uniform size; measuring 12.7 x 5.35 inches (322.6 x 136mm). In addition, they feature a low profile design which consists of a 0.25-inch (6.35mm) thick material. This design is suited to held the majority of electronic components, including BGA, CSP, QFP, TQFP, QFN, TSOP and SOIC.
These trays are ideal for electronic manufacturing production and testing process, as their universal dimensions allow them to fit into most existing equipment.
Standardization – JEDEC IC matrix trays offer compatibility with most semiconductor manufacturing equipment. With decades of history and familiarity, support products for JEDEC matrix trays are widespread and global.
Packaging – At their core, trays are simply containers. The JEDEC matrix tray outline includes features for stacking, whereby each successive tray becomes the cover for the tray below.
Transportation & Storage – Parts loaded into stacked JEDEC matrix trays are easy to store or transport, across the room or around the world. JEDEC matrix trays also function as process “boats”, transporting their contents through a variety of process tools and equipment.
Protection – JEDEC matrix trays protect the parts they hold from mechanical damage. Most JEDEC matrix trays are manufactured using materials that also provide electrical protection from electrostatic discharge (ESD) damage.
JEDEC Matrix Trays are the best choice for precision handling and protection of parts in an automated environment. With the components arranged in a systematical pattern, they ease programming and expidite the automation process.
JEDEC Matrix Trays are widely applied in semiconductors and other electronic components, optical and photonic products, and mechanical parts. Companies widely utilize Pick and place automation and standardized process equipment so as to greatly enhance the use of JEDEC Matrix Trays.
Most JEDEC Matrix Trays are manufactured with ESD-safe engineering plastic, making them safe and reliable.
Hiner-pack JEDEC TRAY SERIES are the perfect solution for the storage and transport of electronic components IC chips. Certified with ISO 9001, SGS ROHS, these grid cable trays are stackable, rectangular-shaped, and black-colored. With a minimum order quantity of 500, these trays come in a variety of sizes and weights, ranging from 120~200g and 322.6*135.9mm, respectively. Moreover, these trays are designed for core tray racking and provide excellent ESD protection. With a supply ability of 2000PCS/day, and delivery time of 1~2 weeks, these trays are competitively priced and come with a 100% prepayment policy.
