Product Details:
|
| Material: | MPPO.PPE.ABS.PEI.IDP | Application: | IC Packaging |
|---|---|---|---|
| Tray Weight: | 120~200g | Surface Resistance: | 1.0*10e4-1.0*10e11Ω |
| Tray Features: | Stackable | Color: | Black |
| Tray Shape: | Rectangular | IC Type: | BGA,QFP,QFN,LGA,PGA |
| High Light: | Rectangular JEDEC Tray,JEDEC Tray For ICs,Jedec IC Trays For Shipping |
||
JEDEC matrix trays feature consistent outline dimensions of 12.7 x 5.35 inches (322.6 x 136 mm). Low profile trays with a thickness of only 0.25 inches (6.35 mm) are suitable for the majority of standard components like BGA, CSP, QFP, TQFP, QFN, TSOP, and SOIC.
Standardization – JEDEC IC matrix trays offer compatibility with most semiconductor manufacturing equipment. With decades of history and familiarity, support products for JEDEC matrix trays are widespread and global.
Packaging – at their core, trays are simply containers. The JEDEC matrix tray outline includes features for stacking, whereby each successive tray becomes the cover for the tray below.
Transportation & Storage – parts loaded into stacked JEDEC matrix trays are easy to store or transport, across the room or around the world. JEDEC matrix trays also function as process “boats”, transporting their contents through a variety of process tools and equipment.
Protection – JEDEC matrix trays protect the parts they hold from mechanical damage. Most JEDEC matrix trays are manufactured using materials that also provide electrical protection from electrostatic discharge (ESD) damage.
JEDEC Matrix Trays are an ideal tool for automation as they provide precision handling and protection for your parts. With specific patterns, it becomes simpler to program the machines in the automation process.
These trays are extensively used in different industries like electronics, optics, photonics, and even for purely mechanical parts. Companies opt for these trays for pick and place automation as well as for standardizing the process equipment.
These trays are mostly made of ESD-safe engineering plastic to guarantee safety.

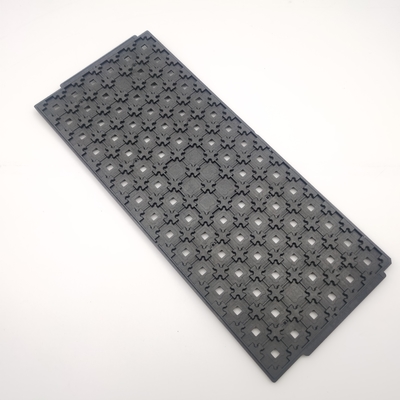

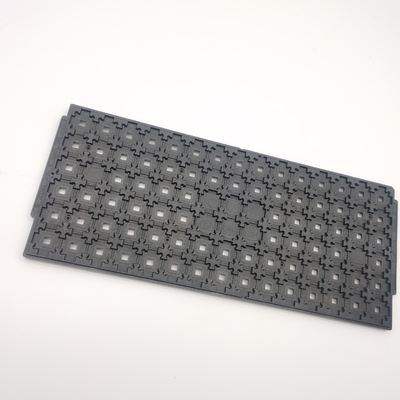

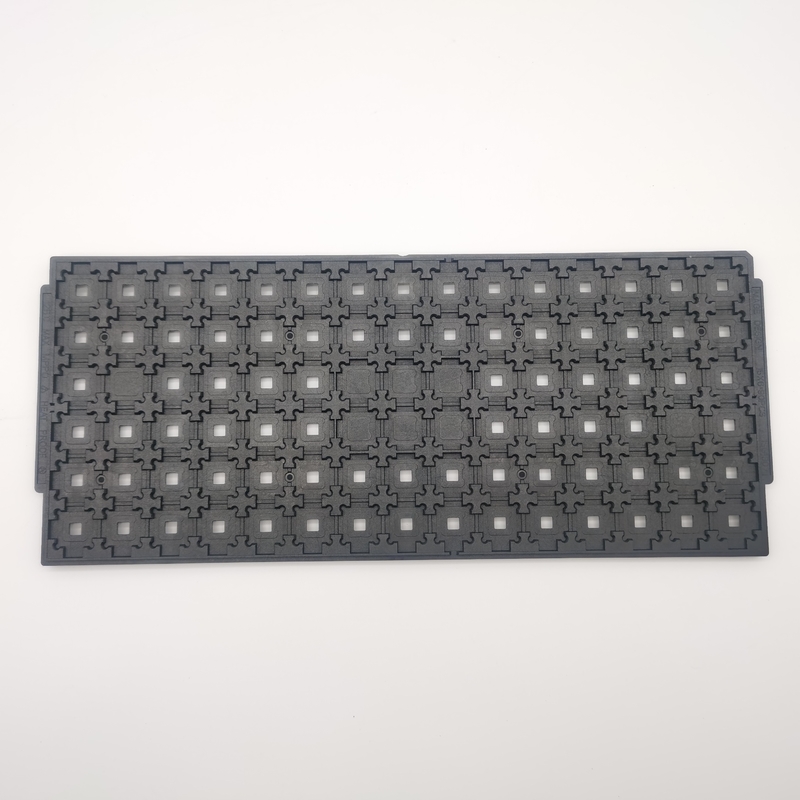

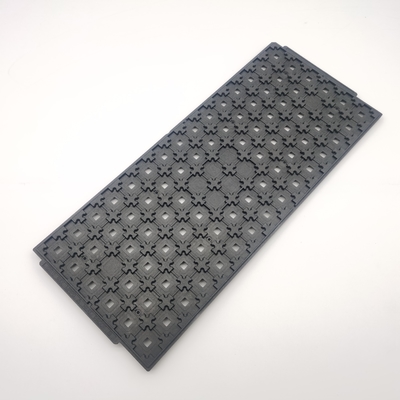

Jedec IC Trays by Hiner-pack are the perfect solution for safely and efficiently storing and shipping electronic components ICs. The JEDEC Tray Series is available in a rectangular shape, measuring 322.6*135.9mm and a height of 7.62mm. The tray is black in color and features a surface resistance of 1.0*10e4-1.0*10e11Ω. It can be used in combination with a cardboard box or a grid cable tray for added protection. The tray is designed with quality and safety in mind, having met the stringent ISO 9001 SGS ROHS certification requirements.
Hiner-pack offers the JEDEC Tray Series at a competitive price, with a minimum order quantity of 500. Bulk orders are delivered within 1-2 weeks, and payment is accepted via 100% prepayment. Hiner-pack can provide up to 2000 pieces per day, with each tray being packaged in 80-100 pieces per carton.
If you’re looking for an efficient and reliable way to store and ship electronic components ICs, then the JEDEC Tray Series from Hiner-pack is the perfect choice. Its sturdy construction and high quality materials offer superior protection and reliability, and its competitive price makes it an affordable option. Get in touch with Hiner-pack today to find out more about the JEDEC Tray Series of trays.
JEDEC IC Trays are the perfect solution for storing and transporting your electronic components ICs. Our trays are designed to be used in Apple Tray Making Machines and Core Tray Racking Systems, and are made of durable MPPO.PPE.ABS.PEI.IDP materials. These trays are stackable and have a height of 7.62mm, and a surface resistance of 1.0*10e4-1.0*10e11Ω. We offer the trays in black color and minimum order quantity of 500 pieces. Our trays are certified by ISO 9001 SGS ROHS and are available for delivery within 1~2 weeks.
