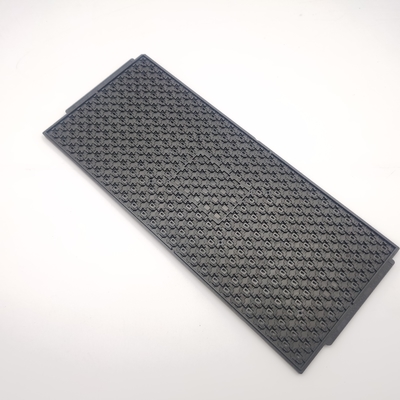

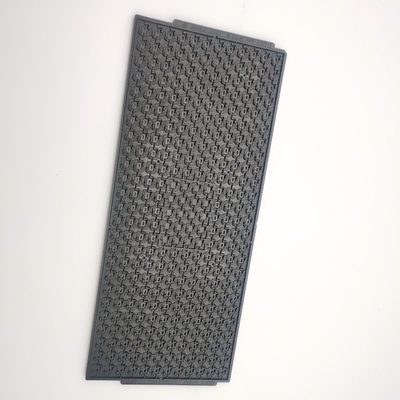

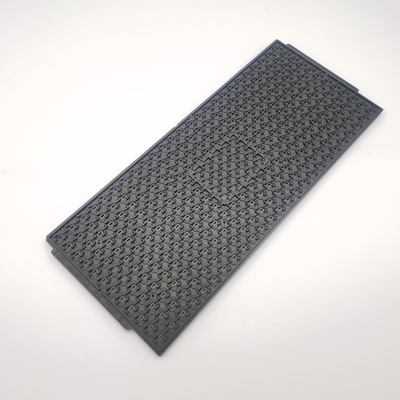

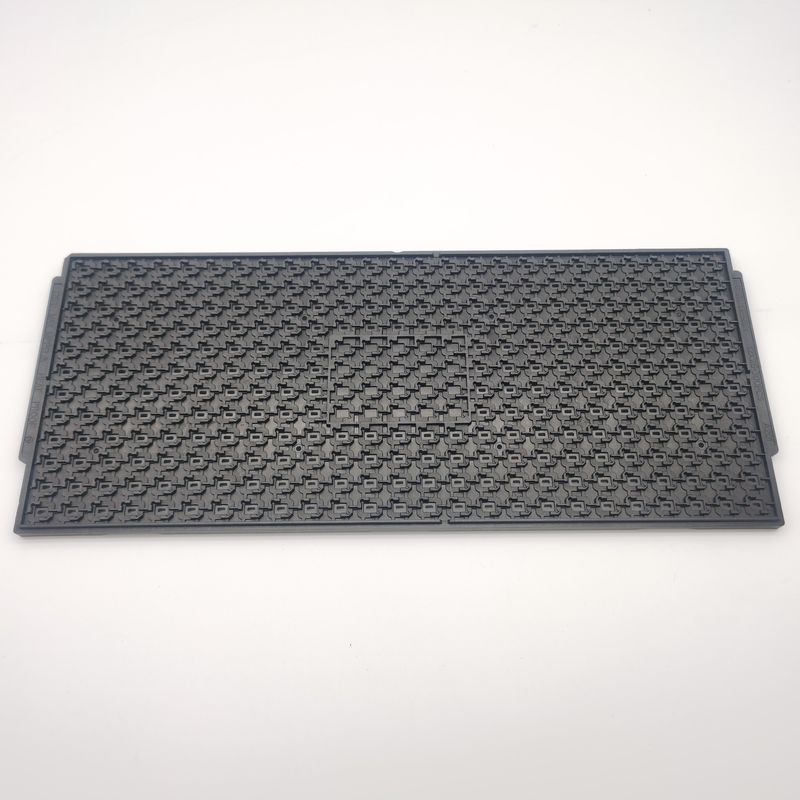

IC Packaging Jedec IC Trays Surface Resistant Black Color 7.62mm Height

Product Description:

Outlining all JEDEC matrix trays dimensions, twelve point seven by five point thirty five inches (322.6 x 136mm) is a standard measure. Furthermore, component pieces such as BGA, CSP, QFP, TQFP, QFN, TSOP, and SOIC are able to fit in low profile trays with a thickness of 0.25-inch (6.35mm). This thickness is adequate for ninety percent of the standard sizes.



Features:

Standardization
JEDEC IC matrix trays provide compatibility with most semiconductor manufacturing equipment. For decades, products used with JEDEC matrix trays have been widely used globally.
Packaging
At their core, trays are simple containers. According to the JEDEC matrix tray size, they are optimized for stacking, so that each upper tray can be used as the cover of the tray underneath.
Transportation & Storage
With JEDEC matrix trays being stacked, they are convenient to store and transport. Whether in a room, or cross oceans, these trays can carry their contents securely. Moreover, they can act as carriers in many process tools and equipment.
Protection
JEDEC matrix trays protect whatever content they contain from any mechanical damage. Also, they are built using materials that offer electrical protection from ESD.

Technical Parameters:

JEDEC Matrix Trays are the perfect choice for a precise handling and protective environment in the automated environment. Their design helps to make automating processes easier and speeds up programming as components are assembled in a arranged pattern.

JEDEC Matrix Trays are widely used for electronics, optics and photonics and purely mechanical components. Companies often choose matrix trays for their pick and place automation and use in standardized equipment.

Most matrix trays are constructed from ESD-safe engineering plastics.

Applications:

Hiner-pack JEDEC TRAY SERIES IC Trays are designed to provide ultimate protection for electronic components such as IC chips. Our trays are made of MPPO, PPE, ABS, PEI, IDP, thus ensuring superior performance and durability. With a surface resistance ranging from 1.0*10e4 to 1.0*10e11Ω, these trays are stackable and available in black color. The tray weight varies from 120~200g and they are certificated by ISO 9001 SGS ROHS.

These trays come with a minimum order quantity of 500 and are packed in 80~100pcs/carton. They are available for delivery within 1~2 weeks and payment is accepted in the form of 100% prepayment. With a daily supply ability of 2000PCS, Hiner-pack is a reliable source for Apple tray making machines and electronic components IC chips protection.

Customization:

Our Hiner-pack JEDEC Tray Series is the perfect solution for IC packaging. Customize your tray to fit your exact needs with the following features:

• Brand Name: Hiner-pack
• Model Number: JEDEC TRAY SERIES
• Place of Origin: China
• Certification: ISO 9001 SGS ROHS
• Minimum Order Quantity: 500
• Price: TBC
• Packaging Details: 80~100pcs/carton
• Delivery Time: 1~2 Weeks
• Payment Terms: 100% Prepayment
• Supply Ability: 2000PCS/Day
• Size: 322.6*135.9mm
• IC Type: BGA,QFP,QFN,LGA,PGA
• Color: Black
• Height: 7.62mm
• Application: IC Packaging
• Special Features: Cardboard Box Trays, Apple Tray Making Machine, Grid Cable Tray



FAQ:

Q: What is the brand name of the Jedec IC Trays?

A: The brand name of the Jedec IC Trays is Hiner-pack.

Q: What is the model number of the Jedec IC Trays?

A: The model number of the Jedec IC Trays is JEDEC TRAY SERIES.

Q: Where are the Jedec IC Trays manufactured?

A: The Jedec IC Trays are manufactured in China.

Q: Does the Jedec IC Trays have any certification?

A: Yes, the Jedec IC Trays have ISO 9001 SGS ROHS certification.

Q: What is the minimum order quantity for the Jedec IC Trays?

A: The minimum order quantity for the Jedec IC Trays is 500.
