Product Details:
|
| Color: | Black | IC Type: | BGA,QFP,QFN,LGA,PGA |
|---|---|---|---|
| Size: | 322.6*135.9mm | Tray Shape: | Rectangular |
| Tray Weight: | 120~200g | Material: | MPPO.PPE.ABS.PEI.IDP |
| Surface Resistance: | 1.0*10e4-1.0*10e11Ω | Height: | 7.62mm |
| High Light: | IDP IC Matrix Trays,Packaging Solution IC Matrix Trays,IDP Jedec IC Trays |
||
Standard components such as < code >BGA< /code >, < code >CSP< /code >, < code >QFP< /code >, < code >TQFP< /code >, < code >QFN< /code >, < code >TSOP< /code > and < code >SOIC< /code >, are usually packaged within JEDEC matrix trays. The outline dimensions of all these trays are 12.7x5.35 inches (322.6 x 136mm). And, they are available in two types, with either 0.250-inch (6.35mm) thick, or 0.750-inch (19.05mm) thick.
The low profile trays with 0.250-inch thickness accommodate 90% of all standard components, and are the most popular among clients. The 0.750-inch trays are selected by customers for components requiring extra protection.
Standardization – JEDEC IC matrix trays provide compatibility with most semiconductor manufacturing equipment. The long-established trays are available across the world and renowned for their reliability.
Packaging – at the core, trays are just containers, and the JEDEC matrix tray outline includes elements for stacking, allowing each subsequent tray to act as a cover for the one below.
Transportation & Storage – easily stack and store JEDEC matrix trays or transport them, wherever the part needs to go. Furthermore, JEDEC matrix trays also provide an efficient way for carrying contents through a variety of manufacturing processes.
Protection – In addition to providing protection from mechanical damage, JEDEC matrix trays typically are made with materials that also provide protection from electrostatic discharge (ESD).
JEDEC Matrix Trays are specially designed to provide precision handling and protection for parts in an automated environment. With parts arranged in an organized pattern, it makes automation and programming task much easier. JEDEC Matrix Trays can be used to hold a variety of components, ranging from semiconductors and other types of electronic components, optical and photonic products, to purely mechanical parts.
Companies often choose to use JEDEC Matrix Trays for pick and place automation and for the utilization of standard process equipment. Moreover, these trays are usually crafted from ESD-safe engineering plastic, ensuring the parts remain safe.

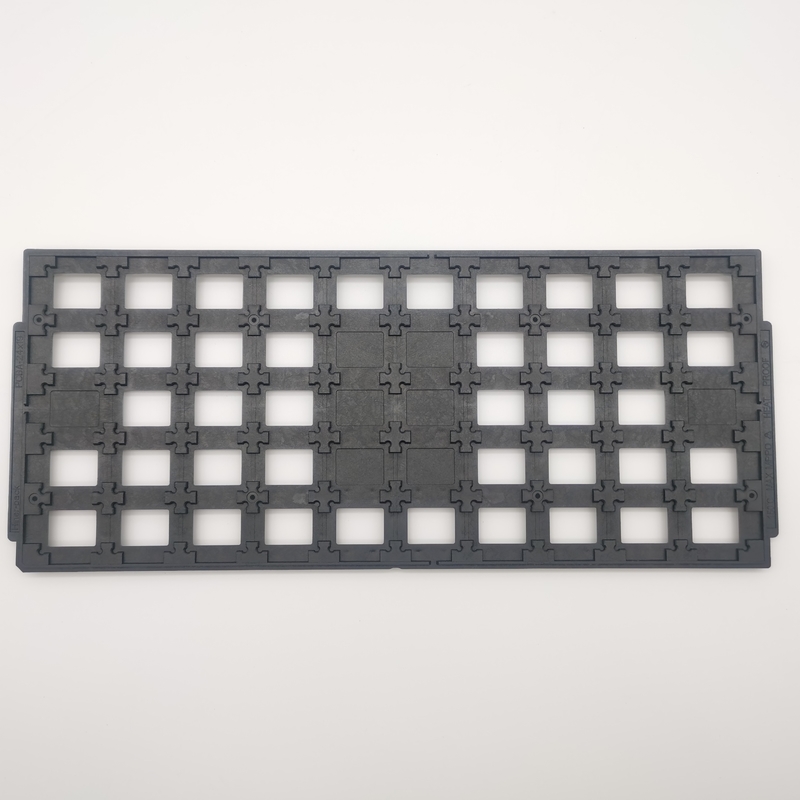

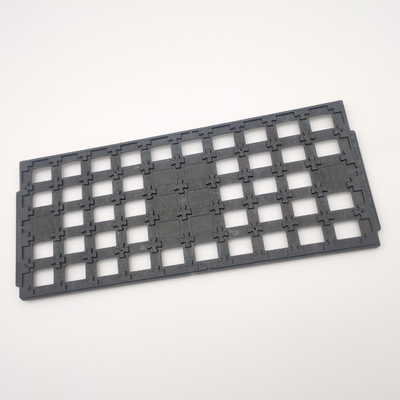

The Hiner-pack JEDEC TRAY SERIES is a high-quality tray that is perfect for a range of applications and scenarios. Our trays are manufactured according to ISO 9001 SGS ROHS standards, and are stackable, rectangular in shape, and have a black color. They are 322.6*135.9mm in size, and have a surface resistance of 1.0*10e4-1.0*10e11Ω. Our trays are perfect for apple tray making machine, grid cable tray, and core tray racking. We have a minimum order quantity of 500, and our trays are packaged in 80~100pcs/carton. We offer competitive pricing, and delivery time is usually 1~2 weeks. We accept payment via 100% Prepayment, and we have a daily supply ability of 2000PCS/Day.
Brand Name: Hiner-pack
Model Number: JEDEC TRAY SERIES
Place of Origin: China
Certification: ISO 9001 SGS ROHS
Minimum Order Quantity: 500
Price: TBC
Packaging Details: 80~100pcs/carton
Delivery Time: 1~2 Weeks
Payment Terms: 100% Prepayment
Supply Ability: 2000PCS/Day
Color: Black
Tray Features: Stackable
Size: 322.6*135.9mm
Height: 7.62mm
Tray Weight: 120~200g
Hiner-pack JEDEC TRAY SERIES are the perfect choice for storing and racking electronic components IC chips. Our trays are manufactured with ISO 9001 SGS ROHS certified quality standards. Each tray is designed with stackable features and measures 322.6*135.9mm with a height of 7.62mm and a weight of 120~200g. The minimum order quantity is 500 and the packaging details are 80~100pcs/carton. Delivery time is 1~2 Weeks and payment terms are 100% Prepayment. We guarantee a supply capacity of 2000PCS/Day. Color is black.
Q: What is Hiner-pack's Jedec IC Trays?
A: Hiner-pack's Jedec IC Trays is a type of tray with grid design for electrical components. It is mainly used to store and transport IC components. The model number is JEDEC TRAY SERIES which is manufactured in China and certified by ISO 9001 SGS ROHS. The minimum order quantity is 500 and the delivery time is 1~2 Weeks.
Q: What is the price of Hiner-pack's Jedec IC Trays?
A: The price of Hiner-pack's Jedec IC Trays is TBC.
Q: How many pieces of Jedec IC Trays can be packed in one carton?
A: Approximately 80~100 pieces of Jedec IC Trays can be packed in one carton.
Q: What is the payment terms of Hiner-pack's Jedec IC Trays?
A: The payment terms of Hiner-pack's Jedec IC Trays is 100% Prepayment.
Q: What is the supply ability of Hiner-pack's Jedec IC Trays?
A: The supply ability of Hiner-pack's Jedec IC Trays is 2000PCS/Day.
