Stackable JEDEC Tray Anti Static IC Component Packaging Trays

Stackable JEDEC Tray Anti Static IC Component Packaging Trays

Brand Name: Hiner-pack
Model Number: JEDEC TRAY SERIES
MOQ: 1000
Price: $1.5~$6(Prices Are Determined According To Different Incoterms And Quantities)
Payment Terms: T/T
Supply Ability: 2000PCS/Day
Detail Information
Place of Origin:
SHENZHEN CN
Certification:
ISO 9001 ROHS SGS
Type:
BGA IC
Property:
ESD, Non-ESD
Shape:
Rectangular
Chemical Resistance:
Yes
Stackable:
Yes
Humidity Resistance:
Up To 90% RH
Material:
PPE
Color:
Black
Packaging Details:
70~100pcs/carton(According To The Customer Demand)
Supply Ability:
2000PCS/Day
Highlight:

JEDEC IC Component Packaging Trays

,

Anti Static IC Component Packaging Trays

,

Stackable JEDEC Tray

Product Description

Description:

The microelectronics industry established standards for safe handling, transport and storage of Integrated Circuits (ICs), modules and other components. These specifications are commonly referred to as JEDEC standard matrix trays. JEDEC standard trays are constructed from molding compounds, though other materials such as aluminum are permissible. JEDEC standard trays are strong, with minimum twist, to hold and protect its contents.

Features:

•  Convenient and Practical

Pin One indicators, visual alignment indicators, and designated space for marking and engraving – years of development make JEDEC matrix trays a smart, practical tool for your manufacturing process.

•  Adaptable and Process Compatible

JEDEC matrix trays can be designed for almost any components that fit within the footprint. Material options offer ESD protection, temperature and chemical compatibility, and a wide range of properties to match your application.

•  WIP, Ship, and Storage

It’s easy to get one tray for all your needs. Build your parts, hold them on the shelf or ship them out, and then move them into final system assembly. No extra handling. No extra containers or media. Standard boxes, straps, and bags make it simple!


Technical Parameters:

Brand Hiner-pack Outline Line Size 322.6*135.9*7.62mm
Model HN24011 Cavity Size 14*18*1.67mm
Package Type IC Component Matrix QTY 6*12=72PCS
Material PPE Flatness MAX 0.76mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS

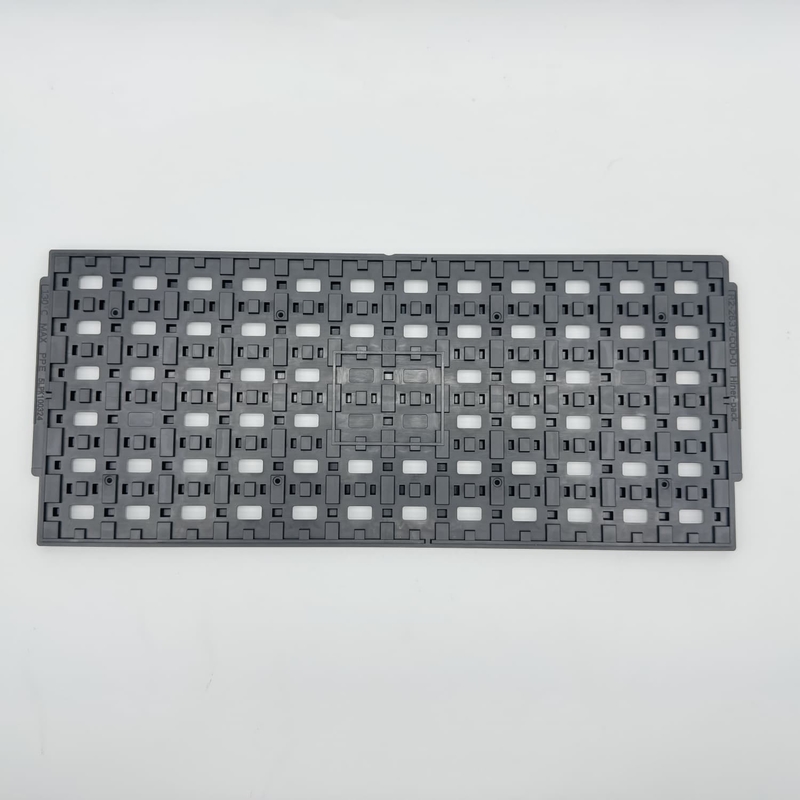

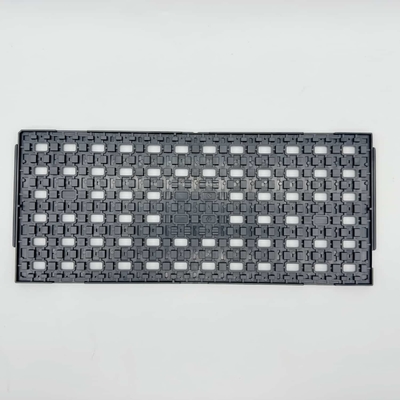

Stackable JEDEC Tray Anti Static IC Component Packaging Trays 0

FAQ:

Q: How can I get a quotation?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.

Q: How long will it take to get a response?
A:We will reply to you within 24 hours of working day.

Q: What kind of service we provide?
A:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
Q: What is your terms of delivery?
A:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.

Q: How to guarantee quality?
A:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.

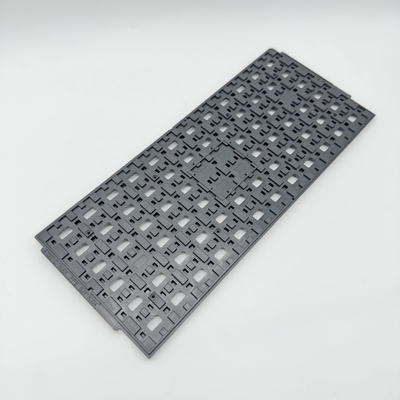

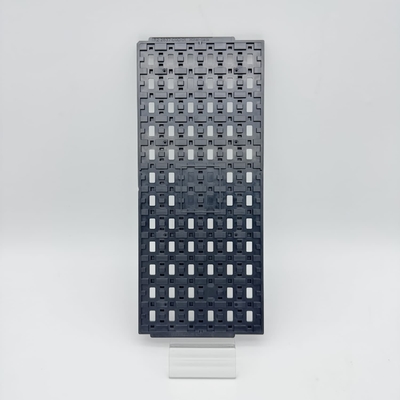

Stackable JEDEC Tray Anti Static IC Component Packaging Trays 1
