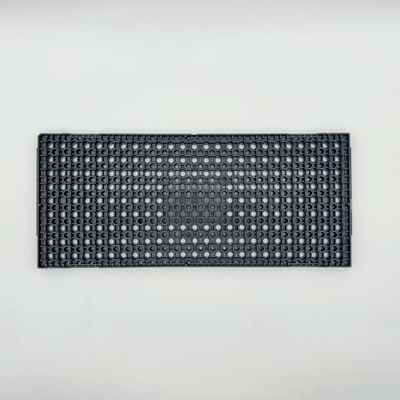

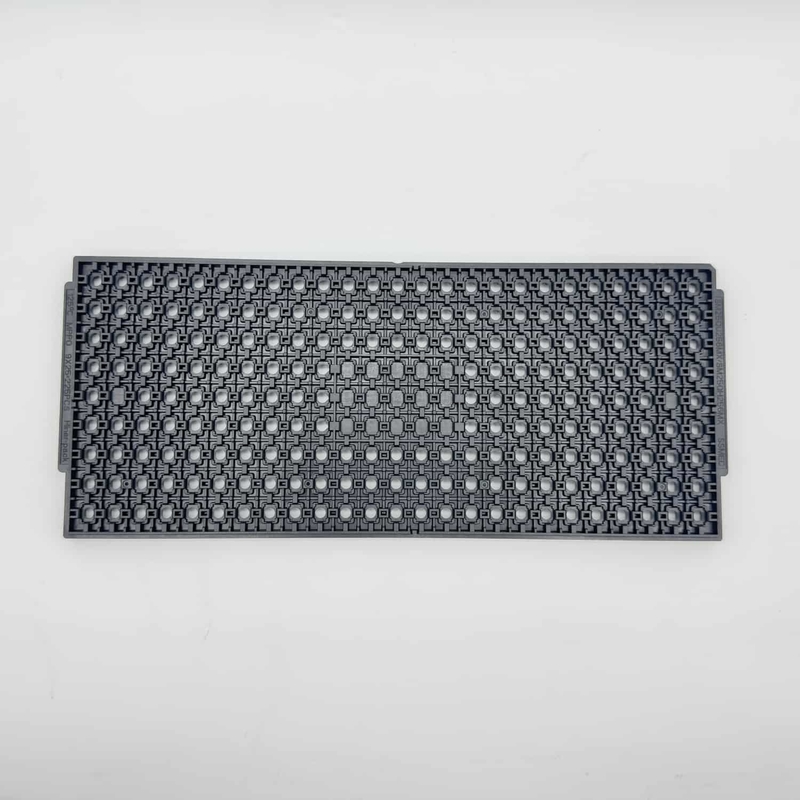

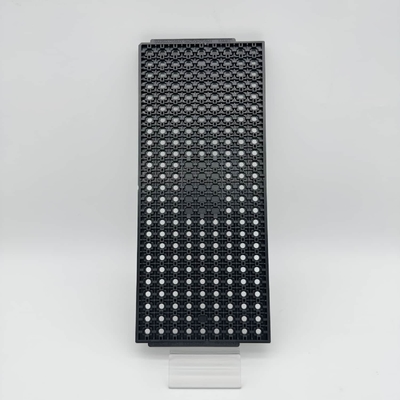

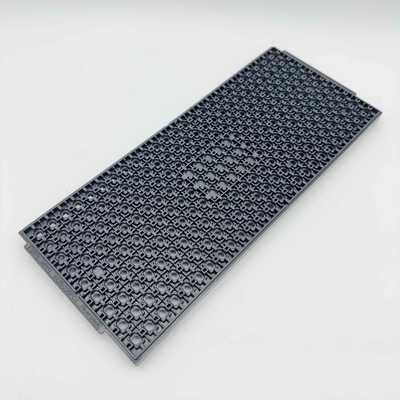

Durable IC Packaging Tray With Personalized Anti Static ESD Jedec Shippings

Name: Durable IC Packaging Tray With Personalized Anti Static ESD Jedec Shippings
Brand: Shenzhen Hiner Technology Co.,LTD
SKU: JEDEC TRAY SERIES
Price: 3.50 USD
Availability: InStock

Brand Name:	Hiner-pack
Model Number:	JEDEC TRAY SERIES
MOQ:	1000
Price:	$1.5~$6(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Certification:

ISO 9001 ROHS SGS

Color:

Black, Red, Yellow, Green, White, Etc

Processing:

Injection

Shape:

Rectangular

Stacking Height:

Customized

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Incoterms:

EXW,FOB,CIF,DDU,DDP

Clean Class:

General And Ultrasonic Cleaning

Injection Mold:

Customized Case Need (Lead Time 25~30 Days, Mold Life Span: 300,000 Times.)

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Highlight:

Personalized Anti Static IC Packaging Tray

ESD Jedec Shippings IC Packaging Tray

Durable IC Packaging Tray

Product Description

Product Description:

JEDEC does not specify the tray material but the tray must be permanently marked (usually by molded characters) with the maximum operating temperature to which the empty tray can be subjected for 48 continuous hours without violating the dimensional tolerance of the tray.

Hiner-pack manufactures most of our JEDEC trays of ESD-safe polymers but also uses a variety of custom materials based on application requirements.

Technical Parameters:

Brand	Hiner-pack	Outline Line Size	322.6135.912.19mm
Model	HN24047	Cavity Size	680.8mm
Package Type	IC Component	Matrix QTY	9*25=225PCS
Material	MPPO	Flatness	MAX 0.76mm
Color	Black	Service	Accept OEM,ODM
Resistance	1.0x10e4-1.0x10e11Ω	Certificate	ROHS

Usage	Packaging of Electronic Components,Optical device,
Feature	ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly
Material	MPPO.PPE.ABS.PEI.IDP...etc
Color	Black.Red.Yellow.Green.White and custom color
Size	Customized size, rectangle,circle shape
Mold type	Injection Mold
Design	Original sample or we can create the designs
Packing	By Carton
Sample	Sample time: after draft confirmed and payment arranged
	Sample charge: 1. Free for stock samples
	2. Custom Tray negotiated
Lead Time	5-7 Working days
Lead Time	The exact time should according to the ordered quantity

Advantages:

• Industry Standard
JEDEC matrix trays are recognized and understood. They give you instant access to equipment and accessories. JEDEC outlines have become the common language of automation.

• Precision Built In
JEDEC outlines have well established reference features and datums. The outline dimensions and tolerances take the risk out of equipment design, accelerating development time and lowering cost.

• Automation Ready
Asymmetric end tabs ensure proper orientation. Standard recesses and vacuum pickup points work well with many types of elevator and feed mechanisms. Interlocking features keep tray stacks stable.
