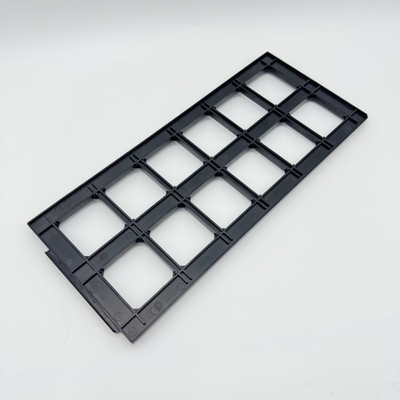

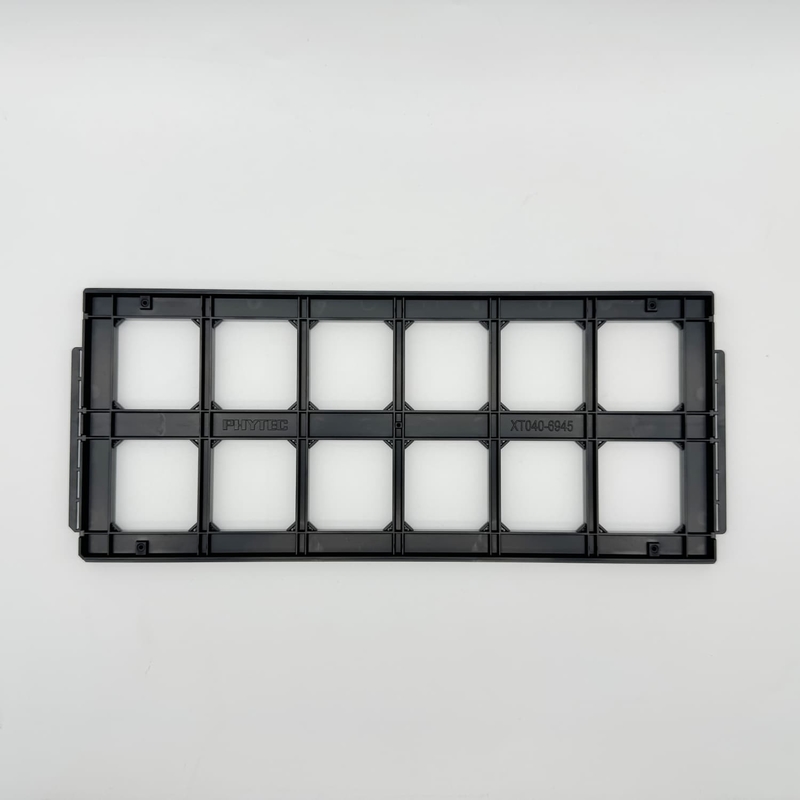

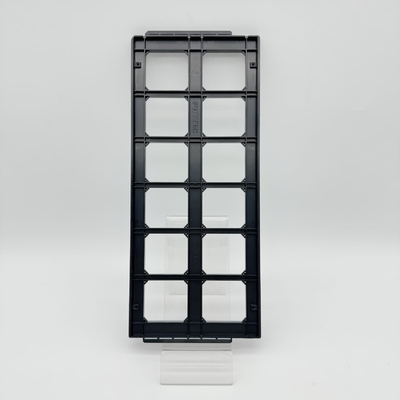

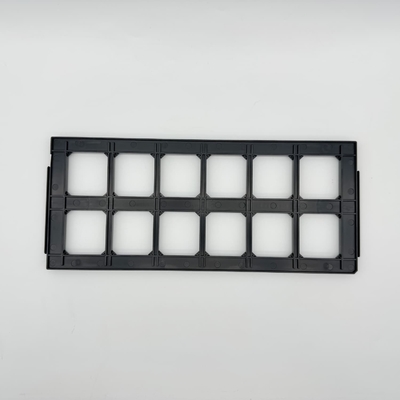

Jedec Matrix Trays Customized Packaging For Storage Handling Transport

Brand Name:	Hiner-pack
Model Number:	JEDEC TRAY SERIES
MOQ:	1000
Price:	$1.5~$6(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Certification:

ISO 9001 ROHS SGS

Chemical Resistance:

Yes

Temperature Resistance:

Up To 150°C Or More

Color:

Customized

Custom:

Support

HS Code:

39239000

Service:

Accept OEM,ODM

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Material:

MPPO, PPE, ABS, PEI, IDP, Etc

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Highlight:

Jedec Matrix Trays For Transport

Jedec Matrix Trays For Storage

Customized Packaging Jedec Matrix Trays

Product Description

Product Description:

• JEDEC trays are also known as "matrix" trays since the components are nested into pockets in fixed position rows and columns. The solar photovoltaic industry as well as the medical industry is enjoying benefits by using JEDEC trays during storage, handling and transport of devices specific to their industries.

• Matrix Trays are used primarily in automated test & assembly processes and conform to JEDEC standards. Integrated circuits and components are picked from trays for testing or assembly into printed circuit boards.

• Matrix Trays are stackable within the same device family and maker’s model. Mixing multiple manufacturers’ brands is not recommended; even within the same device family, due to small differences from brand to brand. An empty tray (without components) serves as the cover tray on the top of the stack.

Technical Parameters:

Brand	Hiner-pack	Outline Line Size	323.1413610.60mm
Model	HN24226	Cavity Size	44.5*41.5mm
Package Type	IC Component	Matrix QTY	2*6=12PCS
Material	PPE	Flatness	MAX 0.76mm
Color	Black	Service	Accept OEM,ODM
Resistance	1.0x10e4-1.0x10e11Ω	Certificate	ROHS

Jedec Matrix Trays Customized Packaging For Storage Handling Transport 0

FAQ:

Q: How can I get a quotation?

A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.

For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.

Q: How long will it take to get a response?

A:We will reply to you within 24 hours of working day.

Q: What kind of service we provide?

A:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.

Q: What is your terms of delivery?

A:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.

Q: How to guarantee quality?

A:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
