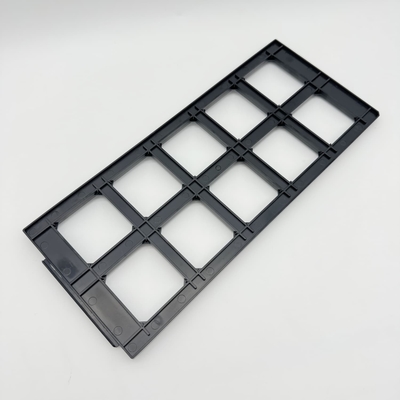

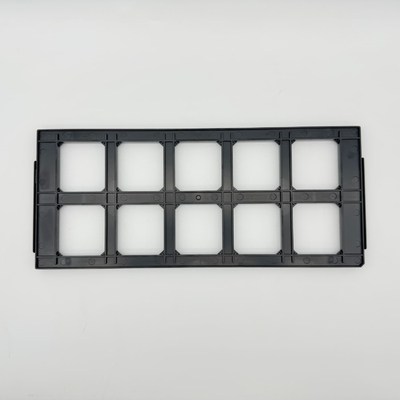

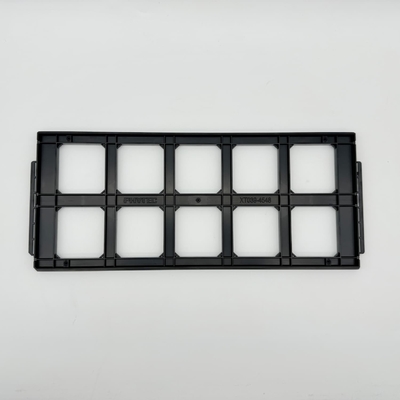

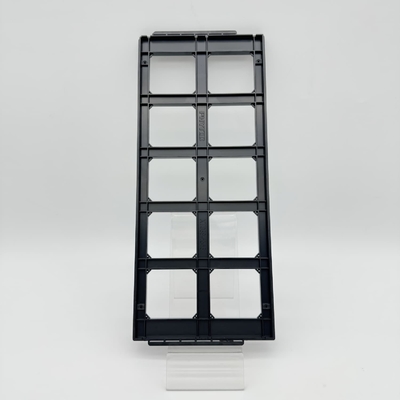

Integrated Circuit Trays with Customized Cavity Dimensions and Multiple Color Selections

Brand Name:	Hiner-pack
Model Number:	JEDEC TRAY SERIES
MOQ:	1000
Price:	$1.5~$6(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Certification:

ISO 9001 ROHS SGS

Processing:

Injection

Cavity Dimensions:

Customized

Flatness:

Less Than 0.76mm

Service:

Accept OEM,ODM

HS Code:

39239000

Resistance:

1.0x10e4-1.0x10e11Ω

Color:

Customized

Property:

ESD,Non-ESD

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Highlight:

Multiple Color Selections Integrated Circuit Trays

Customized Cavity Dimensions Integrated Circuit Trays

Customized Integrated Circuit Tray

Product Description

Description:

JEDEC (Joint Electronic Device Engineering Council – www.jedec.org) creates open standards for the microelectronics industry, ensuring product interoperability, benefiting the industry and ultimately consumers by reducing product development time and costs while increasing efficiency and productivity. JEDEC trays all are the same size, with a standardized outline, and required features. Putting parts in a JEDEC tray ensures that your parts can be processed in industry-standard automation equipment like pick and place machines, inspection, laser marking, testing, and dispensing equipment. Commercially available JEDEC tray feeders can be easily added to custom process machines. When you use JEDEC trays, you get an instant benefit from decades of experience and access to an installed base and continuing supply of automation tools.

Applications:

The number of parts a tray can hold at most is determined by factors such as the geometry of the parts, the processing needs of the application (including how parts will be loaded and unloaded, special tray features, etc.), and the limitations of the tray manufacturing process.

Typically, JEDEC trays are designed to organize parts in a structured grid of rows and columns, making it possible to identify a part's position using row and column numbers. This involves knowing the initial location considered as the "first" position along with the incremental steps for rows and columns.

Support and Services:

Brand	Hiner-pack	Outline Line Size	323.1413610.60mm
Model	HN24225	Cavity Size	48.5*45.5mm
Package Type	IC Component	Matrix QTY	2*5=10PCS
Material	PPE	Flatness	MAX 0.76mm
Color	Black	Service	Accept OEM,ODM
Resistance	1.0x10e4-1.0x10e11Ω	Certificate	ROHS

Usage	Packaging of Electronic Components,Optical device,
Feature	ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly
Material	MPPO.PPE.ABS.PEI.IDP...etc
Color	Black.Red.Yellow.Green.White and custom color
Size	Customized size, rectangle,circle shape
Mold type	Injection Mold
Design	Original sample or we can create the designs
Packing	By Carton
Sample	Sample time: after draft confirmed and payment arranged
	Sample charge: 1. Free for stock samples
	2. Custom Tray negotiated
Lead Time	5-7 Working days
Lead Time	The exact time should according to the ordered quantity
