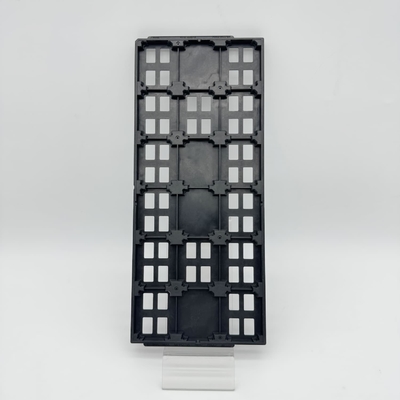

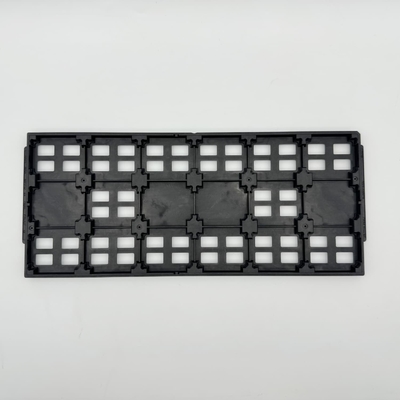

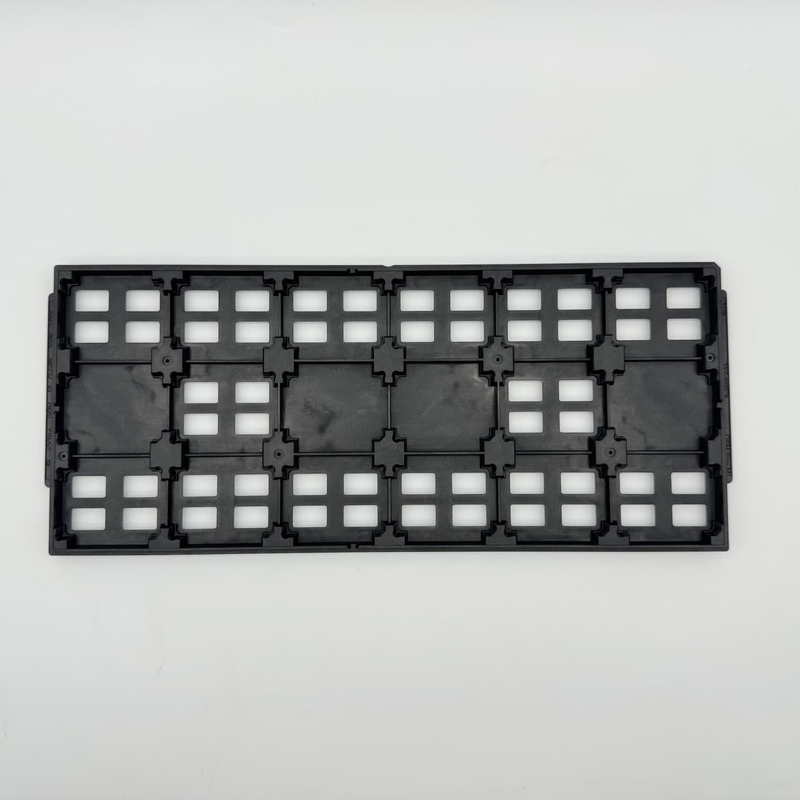

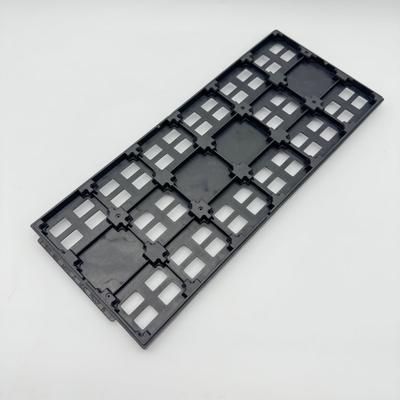

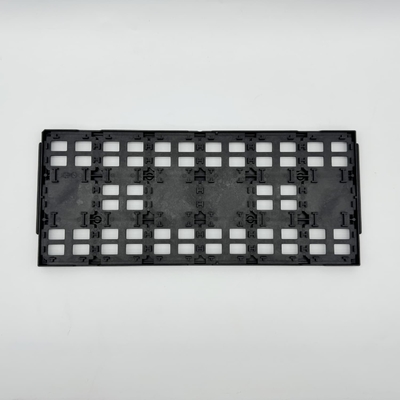

Personalized Jedec Trays Non-ESD High Temperature Resistance Up To 180°C

Brand Name:	Hiner-pack
Model Number:	JEDEC TRAY SERIES
MOQ:	1000
Price:	$1.5~$6(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Certification:

ISO 9001 ROHS SGS

Chemical Resistance:

Yes

Processing:

Injection

Flatness:

Less Than 0.76mm

HS Code:

39239000

Custom:

Support

Cavity Dimensions:

Customized

Resistance:

1.0x10e4-1.0x10e11Ω

Property:

ESD,Non-ESD

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Highlight:

180°C Personalized Jedec Trays

Non-ESD Jedec Trays

High Temperature Resistance Jedec Trays

Product Description

Product Description:

JEDEC trays are also known as "matrix" trays since the components are nested into pockets in fixed position rows and columns. The spacing (pitch) of each component pocket (cells) is defined by JEDEC standards. This allows automated pick and place machines to dimensionally locate and pick up the components from the tray and place onto a PC board. JEDEC trays are also required by industries outside of traditional electronics. The solar photovoltaic industry as well as the medical industry is enjoying benefits by using JEDEC trays during storage, handling and transport of devices specific to their industries.

JEDEC trays are available in a variety of colors, though black is the most popular color for microelectronics and IC devices. Carbon fibers or carbon powder is combined into the molding compounds to make ESD safe trays (conductive or dissipative). Anti-static, non-bakeable trays are constructed from ABS (Acrylonitrile Butadiene Styrene) in multiple colors, such as blue, red, green, yellow, cream and white.

Technical Parameters:

Brand	Hiner-pack	Outline Line Size	322.6135.912.19mm
Model	HN24051	Cavity Size	30456.35mm
Package Type	IC Component	Matrix QTY	3*6=18PCS
Material	MPPO	Flatness	MAX 0.76mm
Color	Black	Service	Accept OEM,ODM
Resistance	1.0x10e4-1.0x10e11Ω	Certificate	ROHS

Usage	Packaging of Electronic Components,Optical device,
Feature	ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly
Material	MPPO.PPE.ABS.PEI.IDP...etc
Color	Black.Red.Yellow.Green.White and custom color
Size	Customized size, rectangle,circle shape
Mold type	Injection Mold
Design	Original sample or we can create the designs
Packing	By Carton
Sample	Sample time: after draft confirmed and payment arranged
	Sample charge: 1. Free for stock samples
	2. Custom Tray negotiated
Lead Time	5-7 Working days
Lead Time	The exact time should according to the ordered quantity

Personalized Jedec Trays Non-ESD High Temperature Resistance Up To 180°C 0

Advantages:

1. Ten years experience in the ESD tray Field;
2. Adequate Supply of products;
3. Professional non-standard custom;
4. MPPO.PPE.ABS.PEI.IDP...etc material;
5. Products follow the Jedec antistatic standard;
6. The tray is permanent unitary antistatic, cut off the headstream of the static threat of the products.

Personalized Jedec Trays Non-ESD High Temperature Resistance Up To 180°C 1
