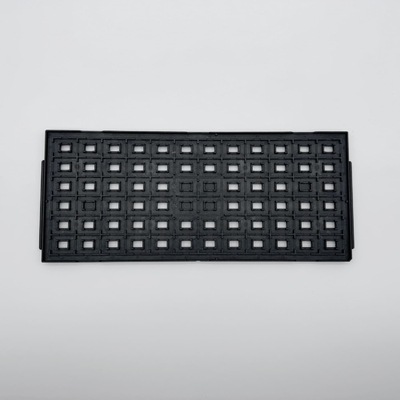

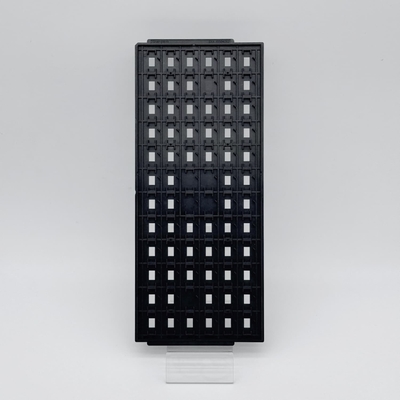

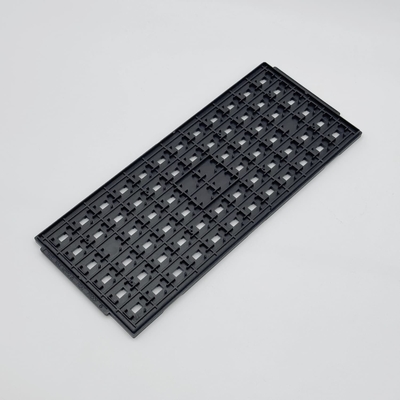

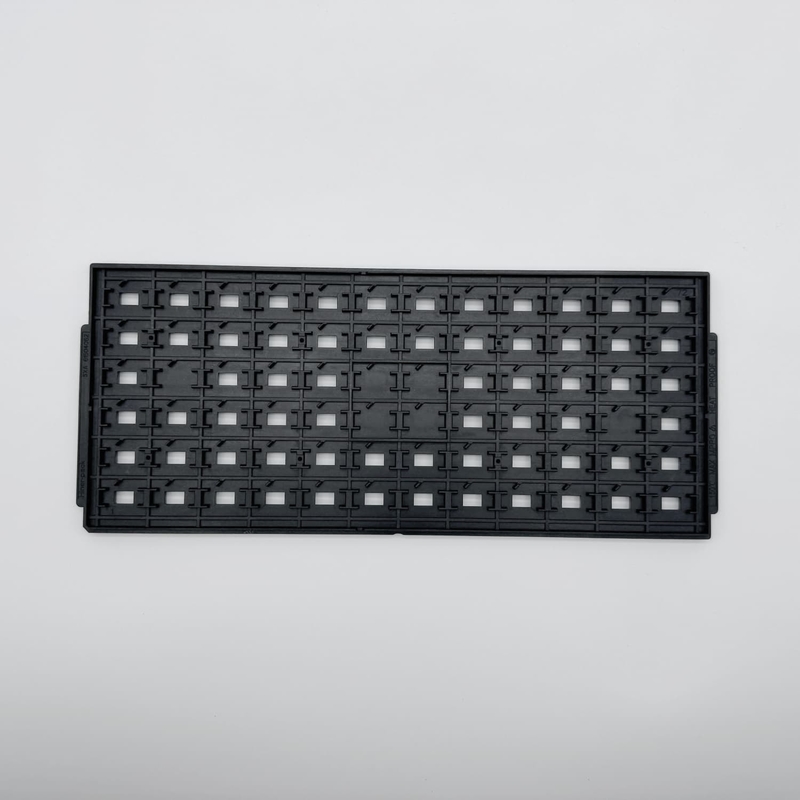

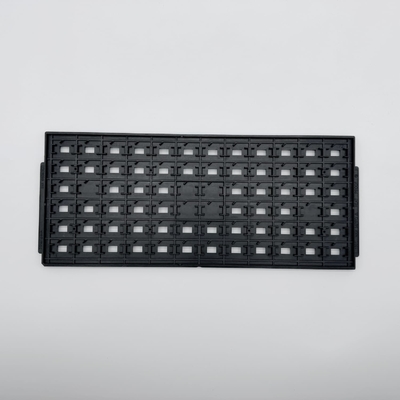

Precision Molded JEDEC Tray For Chips And Modules Custom Available

Precision Molded JEDEC Tray For Chips And Modules Custom Available

Features:

Universal Compatibility: Conforms to JEDEC standards for easy adoption across various manufacturing platforms and handling systems.

Effective ESD Control: Conductive material composition offers permanent electrostatic discharge protection for sensitive parts.

Accurate Component Placement: Evenly spaced pockets keep parts securely aligned, reducing the risk of misfeeds or handling damage.

Automation-Ready Elements: Built-in features such as pickup zones, corner chamfers, and orientation tabs support robotic and mechanical handling.

Stack-Safe Design: Stable interlocking system prevents tray movement during vertical stacking, whether in storage or transit.

Durable Performance:  Maintains structural integrity over repeated handling, temperature cycles, and long-term use.

Technical Parameters:

Applications:

The matrix tray is designed for a variety of uses, making it suitable for industries such as semiconductor packaging, module assembly, quality inspection, and product shipment. It facilitates the smooth transfer of parts between different workstations, enhances traceability throughout the production process, and assists manufacturers in ensuring that parts remain consistently oriented within automated workflows.

Its dependable performance makes it a preferred option for sectors like communications, computing, automotive electronics, and consumer devices. The matrix tray's versatility and durability make it an indispensable tool for a diverse range of applications.

Customization:

Tailored tray versions can be provided to meet diverse product or process needs:

• Modified Pocket Structure: Adapt pocket dimensions and contours to fit custom ICs, sensors, or non-standard device profiles.

• Color Material Options: Choose ESD-safe materials in different colors for process visibility, part type separation, or line control.

• Molded Identification Marks: Add permanent alphanumeric codes, customer-specific logos, or process indicators for improved tracking.

• Feature Adaptation: Include additional tabs, slots, or locator keys for compatibility with proprietary automation or specialty feeders.
