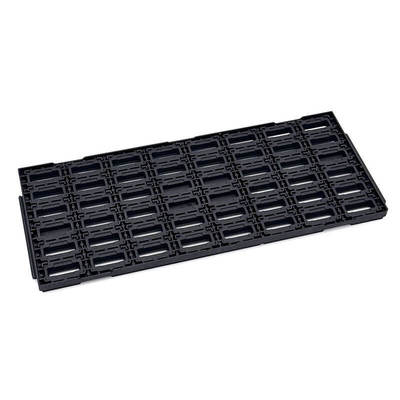

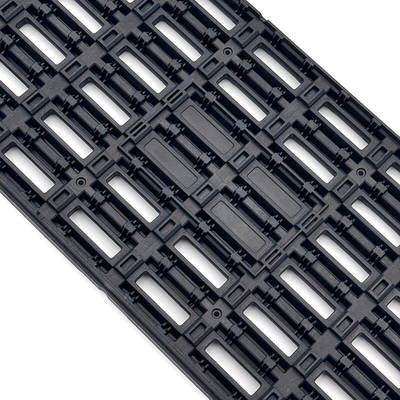

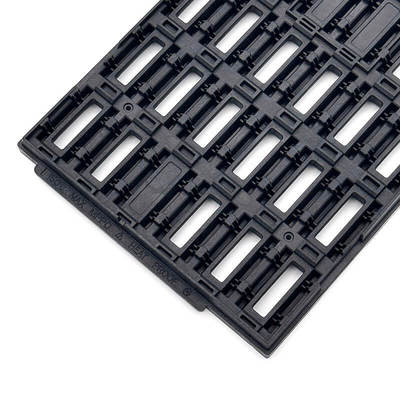

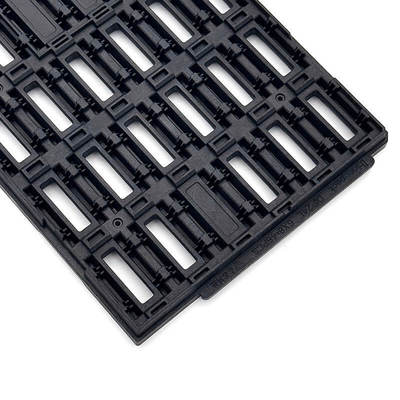

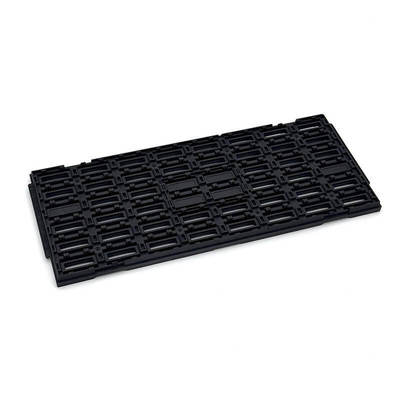

Precision JEDEC IC Trays Tailored For IC Chip Production In Semiconductor

Brand Name:	Hiner-pack
Model Number:	HN24139
MOQ:	500pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	100% Prepayment
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN CHINA

Certification:

RoHS、ISO

Molding Method:

Injection Moulding

Temperature:

80°C~180°C

Warpage:

Less Than 0.76mm

Durable:

Yes

Customized Service:

Support Standard And Non-standard

Property:

ESD, Non-ESD

Stackable:

Yes

Anti-Static:

Yes

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Product Description

Product Description:

The High Precision JEDEC Matrix Tray is engineered to deliver exceptional dimensional accuracy and stability for semiconductor packaging and component handling. Designed to meet JEDEC global standards, it offers a reliable solution for transporting, testing, and storing delicate devices within automated environments. Each pocket maintains precise geometry, ensuring components stay aligned and protected during multi-step production flows. The tray’s ESD-safe material provides consistent anti-static performance while withstanding long-term use in cleanroom and production settings.

Features & Benefits:

High Dimensional Accuracy – Maintains tight tolerances across all pockets, ensuring reliable component positioning in high-speed automation.

Global JEDEC Compatibility – Fully compliant with JEDEC standards for smooth interchangeability across equipment and supply chains.

Static Dissipative Performance – Stable ESD protection prevents electrostatic damage to sensitive devices.

Smooth Pocket Surface – Minimizes friction and particle generation during automated loading and unloading.

Structural Integrity – Reinforced frame enhances tray rigidity and prevents warping under operational stress.

Stackable Design – Interlocking edges allow secure stacking for compact storage and efficient logistics.

Technical Parameters:

Brand	Hiner-pack
Model	HN24139
Material	MPPO
Package Type	IC Component
Color	Black
Resistance	1.0x10e4-1.0x10e11Ω
Outline Line Size	322.6x135.9x12.19mm
Cavity Size	30.4x15.5x7.65mm
Matrix QTY	6*8=48PCS
Flatness	MAX 0.76mm
Service	Accept OEM, ODM
Certificate	RoHS, IOS

Applications:

This tray is designed for high-precision manufacturing environments requiring consistent alignment and handling of small to medium-sized components. Typical uses include IC assembly, semiconductor module packaging, high-reliability testing, and device storage. It performs effectively under robotic transfer systems, pick-and-place machinery, and automated conveyors, supporting stable operation in cleanroom or standard production conditions.

Customization:

The High Precision JEDEC Matrix Tray can be customized for unique production demands and specialized device geometries:

Tailored Pocket Designs – Adjust pocket shape and depth to suit varied device outlines or thicknesses.

Color Customization – Available in multiple ESD-safe color variants to support line management and batch identification.

Integrated Identification – Include molded markings or embedded codes for traceability and process control.

Automation-Ready Enhancements – Optional edge and corner modifications ensure compatibility with proprietary automation interfaces or specialized robotic systems.
