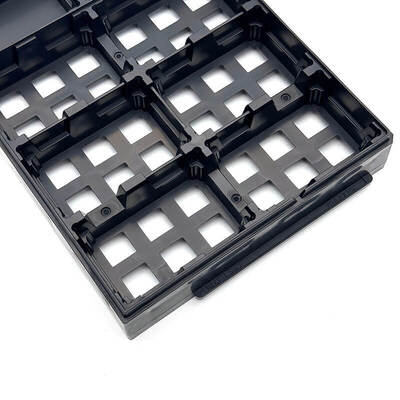

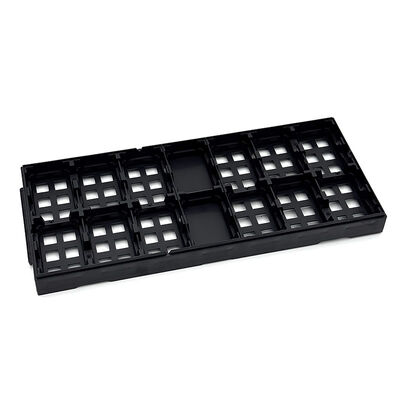

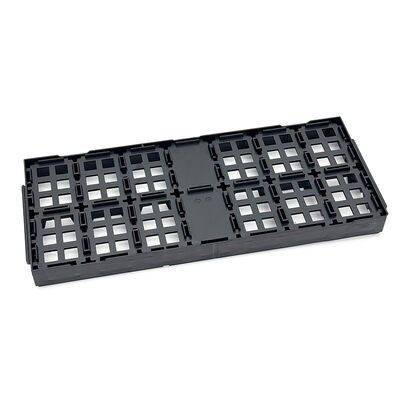

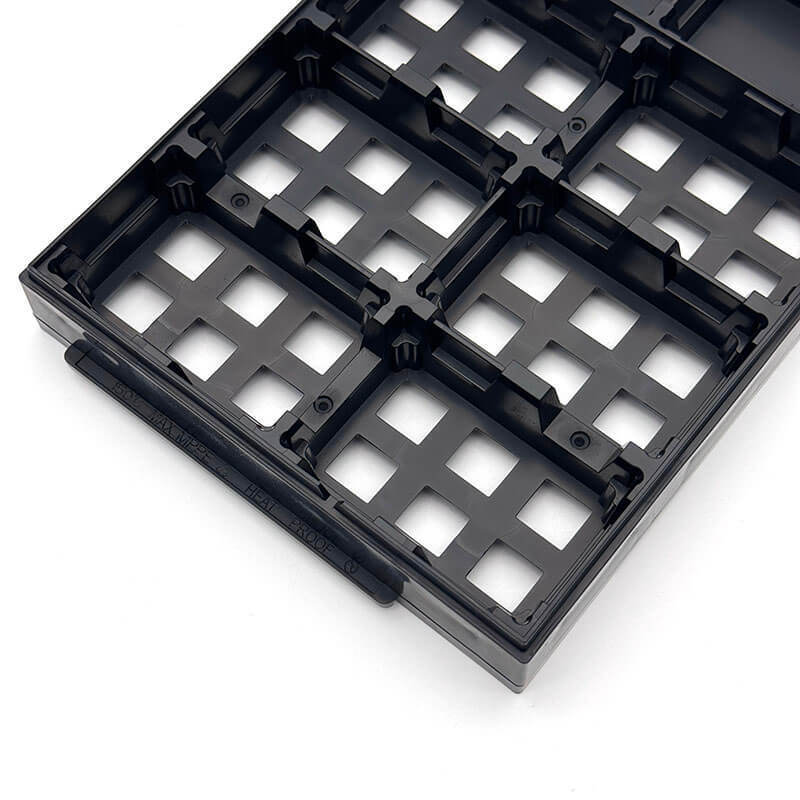

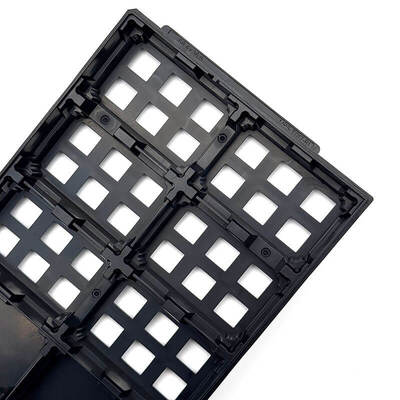

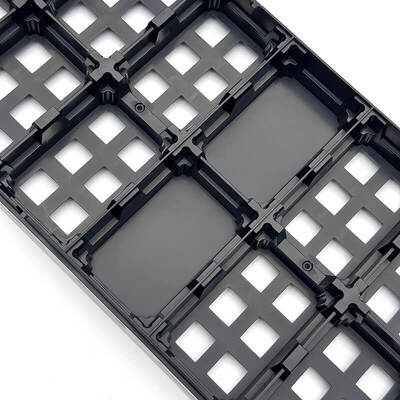

JEDEC Standard ESD Tray for Semiconductor Packaging

Name: JEDEC Standard ESD Tray for Semiconductor Packaging
Brand: Shenzhen Hiner Technology Co., Ltd.
SKU: HN24204
Price: 1.35 USD
Availability: InStock

Brand Name:	Hiner-pack
Model Number:	HN24204
MOQ:	500pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	100% Prepayment
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO

Matrix:

2×7=14PCS

Humidity Resistance:

Up To 90%

Cavity Size:

58.4×36.8×16.9 Mm

Weight Capacity:

Varies, Typically Up To 500 Grams Per Cavity

Uv Resistance:

Yes

Warpage:

Less Than 0.76mm

Reusability:

Reusable

Application:

IC Handling, Storage, And Shipping

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Product Description

Product Details

This JEDEC standard ESD tray provides reliable protection for semiconductor devices during handling, storage, and shipping. The tray is manufactured using high-quality plastic materials with controlled electrostatic properties to ensure device safety.

It is suitable for repeated use in semiconductor manufacturing and logistics environments.

Key Features/ Benefits

JEDEC-compliant tray dimensions
Uniform pocket layout for secure placement
Precise cavity dimensions: 58.4×36.8×16.9 mm
Stackable design for efficient storage
Strong mechanical structure
Long service life

Specifications

Brand		Hiner-pack
Model		HN24204
Material		PPE
Tray Type		IC tray
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		322.6×135.9×25.65 mm
Cavity Size		58.4×36.8×16.9 mm
Matrix QTY		2×7=14PCS
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Customization		Pocket size available

Applications

These trays are ideal for electronics manufacturing, assembly lines, cleanroom environments, and automated handling systems. Their versatility extends to acrylic tray displays and inventory management applications.

Semiconductor device storage
IC packaging and shipment
Production line handling
Distribution and warehousing

Packaging & Shipping/ Services

JEDEC Matrix Trays are packaged in durable, anti-static materials with secure stacking and cushioning inserts. Customized packaging solutions are available upon request. All shipments are tracked and handled by trusted carriers for reliable worldwide delivery.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Factory-direct manufacturer of JEDEC & IC trays
JEDEC compliant, automation-compatible designs
OEM & ODM customization supported
Consistent quality and stable supply
Trusted by global semiconductor customers
