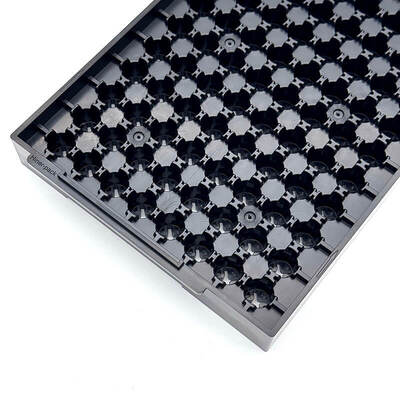

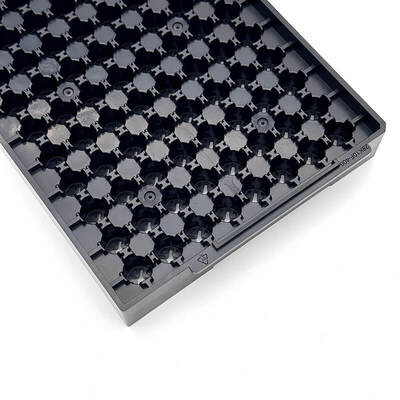

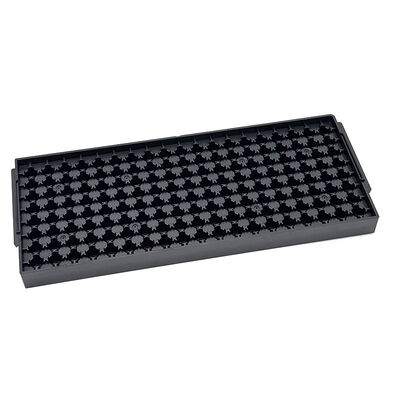

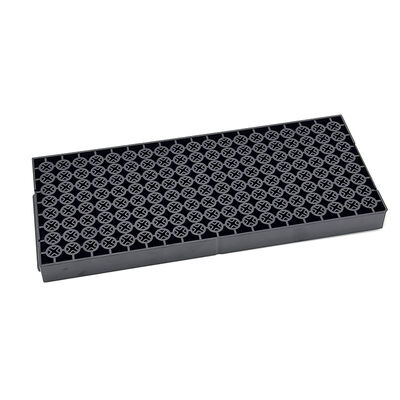

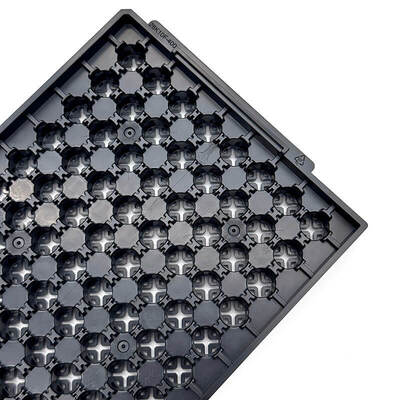

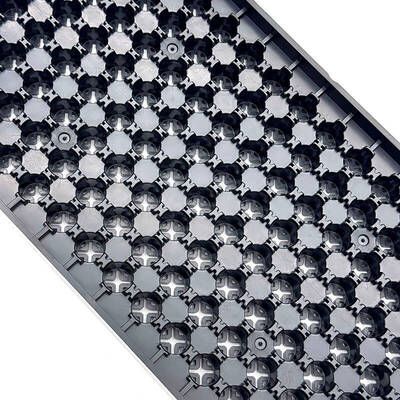

JEDEC-Compliant IC Tray with Precision Pockets

Name: JEDEC-Compliant IC Tray with Precision Pockets
Brand: Shenzhen Hiner Technology Co., Ltd.
SKU: HN24219
Price: 1.35 USD
Availability: InStock

Brand Name:	Hiner-pack
Model Number:	HN24219
MOQ:	500pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	100% Prepayment
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO

Matrix:

8×19=152PCS

Humidity Resistance:

Up To 90%

Cavity Size:

60.2*63.2*4.2mm

Weight Capacity:

Varies, Typically Up To 500 Grams Per Cavity

Uv Resistance:

Yes

Warpage:

Less Than 0.76mm

Reusability:

Reusable

Application:

IC Handling, Storage, And Shipping

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Highlight:

JEDEC-compliant IC tray

precision pocket IC tray

JEDEC matrix storage tray

Product Description

Product Details

This JEDEC-compliant IC tray features precision-molded pockets for accurate IC placement during handling and storage operations. Designed for IC packaging applications, this reusable JEDEC ESD tray offers reliable protection and compatibility with standard semiconductor workflows.

Key Features/ Benefits

Precision pocket geometry
JEDEC standard dimensions
Precise cavity dimensions: φ10.2×21.7 mm
ESD protection
Durable and reusable
Cleanroom compatible

Specifications

Brand		Hiner-pack
Model		HN24219
Material		PC
Tray Format		JEDEC
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		322.6×135.9×24.5 mm
Cavity Size		φ10.2×21.7 mm
Matrix QTY		8×19=152PCS
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Custom Options		Pocket size available

Applications

These trays are ideal for electronics manufacturing, assembly lines, cleanroom environments, and automated handling systems. Their versatility extends to acrylic tray displays and inventory management applications.

Electronics manufacturing and assembly lines
IC inspection
Semiconductor staging
Packaging operations

Packaging & Shipping/ Services

JEDEC Matrix Trays are packaged in durable, anti-static materials with secure stacking and cushioning inserts. Customized packaging solutions are available upon request. All shipments are tracked and handled by trusted carriers for reliable worldwide delivery.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Factory-direct manufacturer of JEDEC & IC trays
JEDEC compliant, automation-compatible designs
OEM & ODM customization supported
Consistent quality and stable supply
Trusted by global semiconductor customers
