4-inch Waffle Pack Tray – ESD Safe IC Handling for Automated Lines

Brand Name:	Hiner-pack
Model Number:	HN25118
MOQ:	500pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	100% Prepayment
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO

Matrix:

10×17=170PCS

Humidity Resistance:

Up To 90%

Cavity Size:

6.35x3.0x1.2mm

Weight Capacity:

Varies, Typically Up To 500 Grams Per Cavity

Uv Resistance:

Yes

Warpage:

Less Than 0.76mm

Reusability:

Reusable

Application:

IC Handling, Storage, And Shipping

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Product Description

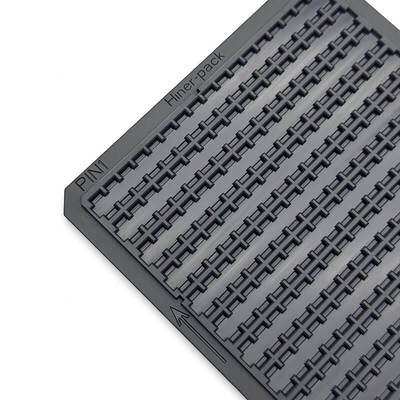

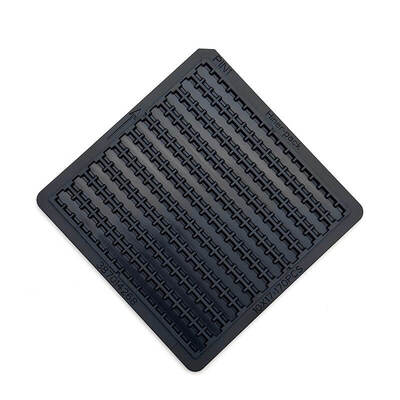

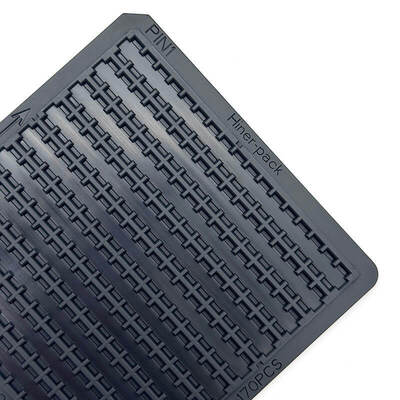

4-inch Waffle Pack Tray – ESD Safe IC Handling for Automated Lines

This 4-inch waffle pack tray provides secure, electrostatic discharge-protected handling for integrated circuits. Its rigid structure ensures consistency for automated pick-and-place systems and conveyor lines. With a standard 4-inch footprint, the tray is ideal for high-volume manufacturing and logistics.

Key Features/ Benefits

ESD safe material reduces static risk
Compatible with automated handling systems
Standard 4-inch waffle matrix layout
Stackable and reusable
Precision pocket geometry

Specifications

Brand		Hiner-pack
Model		HN25118
Material		ESD-safe thermoplastic PC
Tray Type		4-inch waffle pack
Color		Black
Surface Resistivity		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		101.6x101.6x5.1 mm
Pocket Size		6.35x3.0x1.2mm
Matrix QTY		10×17=170PCS
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Certifications		RoHS, ISO

Applications

Automated assembly lines
IC staging & handling
Semiconductor storage

Customization:

The tray’s flexible design supports a wide range of customized configurations to meet specific production challenges:

• Tailored Pocket Layouts: Adjust pocket size, count, or spacing to match non-standard part dimensions or shapes.

• Color Coding Options: Use ESD-safe materials in selected colors for identifying product types, workstations, or production phases.

• In-Mold Marking: Add customer-specific identifiers or tracking features during manufacturing for clear and permanent identification.

• Specialized Alignment Features: Modify edges or add tool-specific indexing tabs to optimize performance in proprietary handling systems.
