4-inch Anti-Static Reusable Waffle Pack Tray for IC Transport and Storage

Brand Name:	Hiner-pack
Model Number:	HN25126
MOQ:	500pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	100% Prepayment
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO

Matrix:

5×2-1=9PCS

Humidity Resistance:

Up To 90%

Cavity Size:

13.1x33.9x0.32mm

Weight Capacity:

Varies, Typically Up To 500 Grams Per Cavity

Uv Resistance:

Yes

Warpage:

Less Than 0.76mm

Reusability:

Yes

Application:

IC Handling, Storage, And Shipping

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Highlight:

Anti-Static Waffle Pack Tray

4-inch IC Tray

Reusable Chip Tray

Product Description

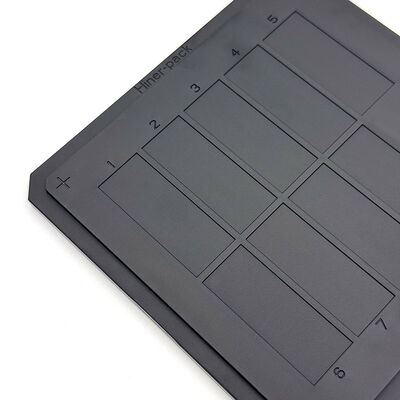

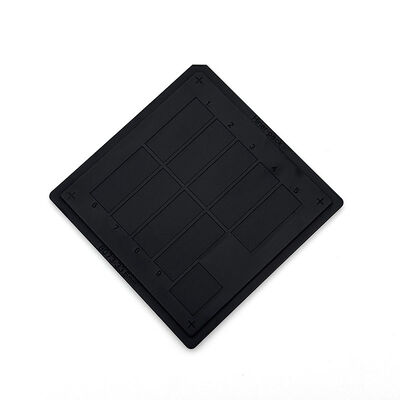

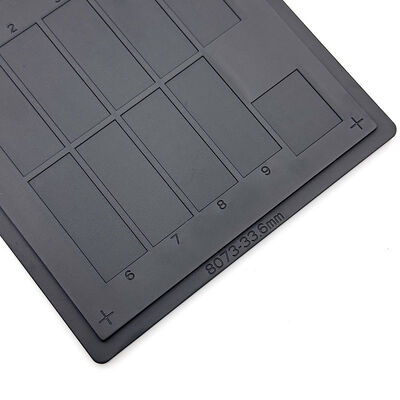

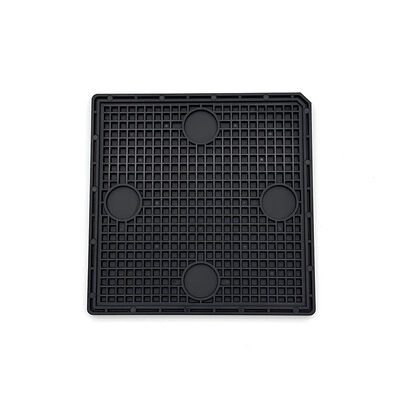

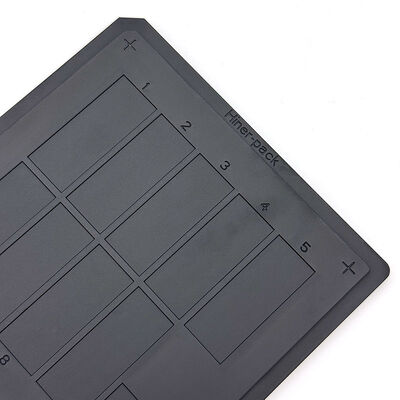

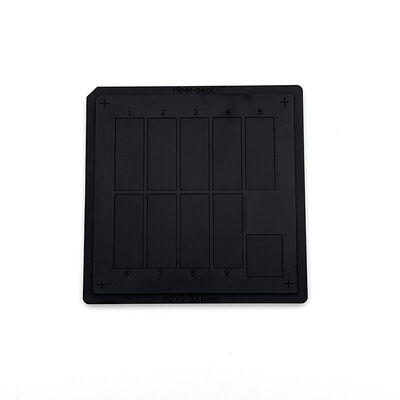

4-inch Anti-Static Waffle Pack Tray for IC Transport & Storage

This anti-static waffle pack tray features a 4-inch footprint and precision pocket structure to protect sensitive IC devices during transport and storage. The static dissipative material protects against electrostatic discharge.

Key Features/ Benefits

Static dissipative material
Consistent pocket support
Durable reuse capability
Standard machine compatibility

Specifications

Brand		Hiner-pack
Model		HN25126
Material		ESD safe plastic
Tray Type		4-inch waffle pack
Color		Black
Surface Resistivity		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		101.6x101.6x5.6 mm
Pocket Size		13.1x33.9x0.32mm
Matrix QTY		5×2-1=9PCS
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Certifications		RoHS, ISO

Applications

IC transport
Warehouse storage
Buffer handling

Customization:

The tray’s flexible design supports a wide range of customized configurations to meet specific production challenges:

• Tailored Pocket Layouts: Adjust pocket size, count, or spacing to match non-standard part dimensions or shapes.

• Color Coding Options: Use ESD-safe materials in selected colors for identifying product types, workstations, or production phases.

• In-Mold Marking: Add customer-specific identifiers or tracking features during manufacturing for clear and permanent identification.

• Specialized Alignment Features: Modify edges or add tool-specific indexing tabs to optimize performance in proprietary handling systems.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Factory-direct manufacturer of JEDEC & IC trays
JEDEC compliant, automation-compatible designs
OEM & ODM customization supported
Consistent quality and stable supply
Trusted by global semiconductor customers
