4-inch Waffle Pack Lid / Cover – Anti-Static Protective Cover for IC Waffle Trays

Brand Name:	Hiner-pack
Model Number:	HN25133
MOQ:	500pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	100% Prepayment
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO

Matrix:

5×2-1=9PCS

Humidity Resistance:

Up To 90%

Weight Capacity:

Varies, Typically Up To 500 Grams Per Cavity

Uv Resistance:

Yes

Warpage:

Less Than 0.76mm

Reusability:

Yes

Application:

IC Handling, Storage, And Shipping

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Product Description

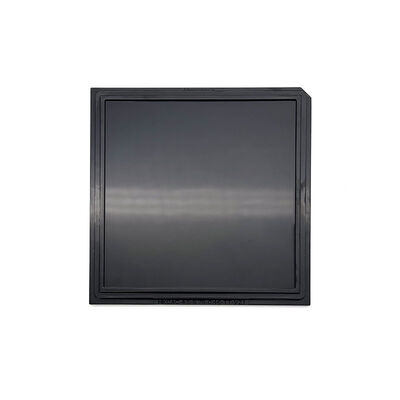

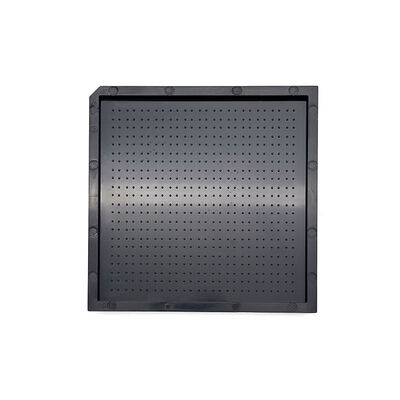

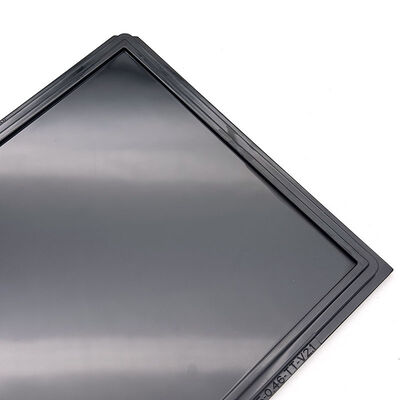

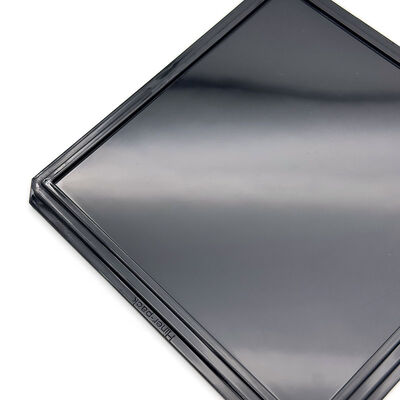

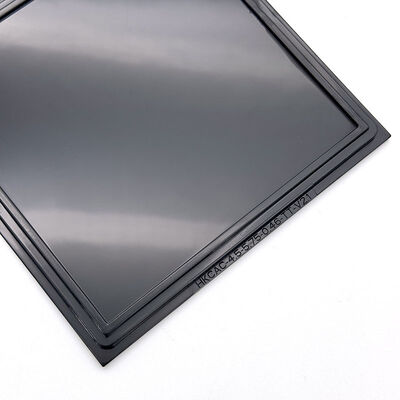

4-inch Waffle Pack Lid / Cover – Anti-Static Protective Cover for IC Waffle Trays

The 4-inch waffle pack lid / cover is designed to securely protect semiconductor devices stored in waffle pack trays. It works together with standard 4-inch waffle pack trays to prevent device movement, contamination, and electrostatic damage during handling, storage, and transportation.

Manufactured from ESD-safe materials, the lid provides reliable electrostatic discharge protection while maintaining excellent dimensional stability. The cover fits precisely with standard waffle trays, ensuring stable stacking and secure closure during logistics and automated handling processes.

This waffle pack cover is widely used in semiconductor manufacturing, IC packaging, testing, and logistics, where reliable protection of sensitive electronic components is critical.

Key Features/ Benefits

ESD-safe material protects sensitive IC devices from electrostatic discharge
Precise fit designed for standard 4-inch waffle pack trays
Secure device retention prevents components from shifting during transport
Stackable design suitable for automated production lines
Reusable and durable for repeated use in semiconductor handling environments
Lightweight yet rigid structure ensuring stable protection

Specifications

Brand		Hiner-pack
Model		HN25133
Material		ESD-safe thermoplastic
Tray Type		4-inch waffle pack
Color		Transparent / Black / Customized
Surface Resistivity		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		101.6x101.6x5.6 mm
Reusability		Reusable
Application Environment		Semiconductor cleanroom / electronics manufacturing
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Certifications		RoHS, ISO

Applications

The 4-inch waffle pack lid is widely used for:

Semiconductor IC storage
IC packaging and assembly processes
Automated pick-and-place production lines
Semiconductor logistics and shipping
Device testing and inspection handling
Cleanroom semiconductor environments

It is suitable for protecting a wide range of IC packages such as QFN, BGA, QFP, SOP, and other semiconductor devices.

Advantages:

Using a waffle pack lid together with a waffle tray significantly improves device protection and operational efficiency. The cover helps maintain component alignment, reduces handling risks, and ensures safe transportation of sensitive semiconductor products.

The design is compatible with standard semiconductor packaging workflows, making it an essential accessory for IC handling systems.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Factory-direct manufacturer of JEDEC & IC trays
JEDEC compliant, automation-compatible designs
OEM & ODM customization supported
Consistent quality and stable supply
Trusted by global semiconductor customers
