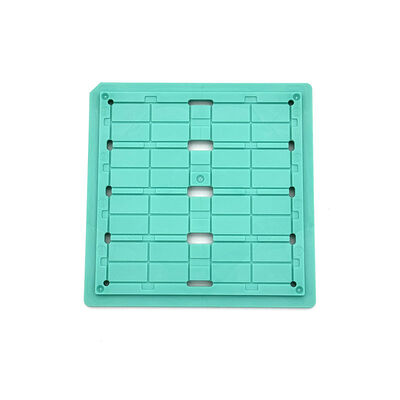

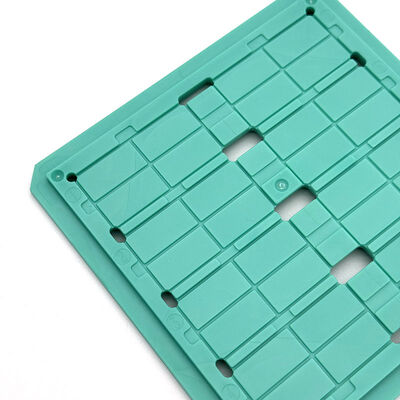

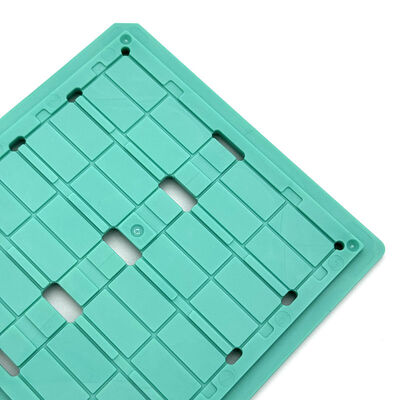

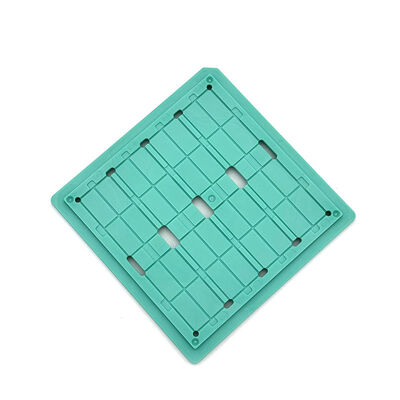

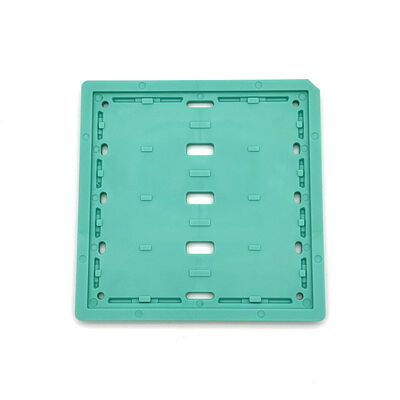

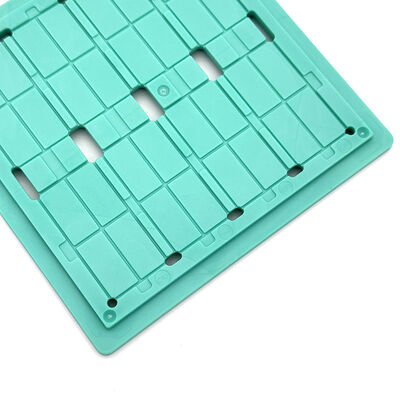

4-inch Anti-Static Reusable Waffle Pack Tray For IC And Semiconductor Handling

Name: 4-inch Anti-Static Reusable Waffle Pack Tray For IC And Semiconductor Handling
Brand: Shenzhen Hiner Technology Co., Ltd.
SKU: HN25135
Price: 1.35 USD
Availability: InStock

Brand Name:	Hiner-pack
Model Number:	HN25135
MOQ:	500pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	100% Prepayment
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO

Matrix:

2x4=8PCS

Pocket Size:

17.6x35.3x0.1 Mm

Humidity Resistance:

Up To 90%

Weight Capacity:

Varies, Typically Up To 500 Grams Per Cavity

Uv Resistance:

Yes

Warpage:

Less Than 0.76mm

Reusability:

Yes

Application:

IC Handling, Storage, And Shipping

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Highlight:

4-inch Waffle Pack Tray

Anti-Static IC Waffle Tray

Reusable Semiconductor Tray

Product Description

4-inch Waffle Pack Lid / Cover – Anti-Static Protective Cover for IC Waffle Trays

Optimized for IC test and QA environments, this 4-inch waffle pack tray offers precise pocket alignment and robust static control. Compatible with various devices under test and inspection systems.

Key Features/ Benefits

High dimensional precision
ESD control
Cleanroom compatible
Reusable

Specifications

Brand		Hiner-pack
Model		HN25135
Material		anti-static plastic
Tray Format		4-inch waffle layout
Color		Green / Black / Customized
Surface Resistivity		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		101.7x101.7x8 mm
Reusability		Reusable
Pocket Size		17.6x35.3x0.1 mm
Matrix		2x4=8PCS
Service		Accept OEM, ODM
Certifications		RoHS, ISO

Applications

The 4-inch waffle pack lid is widely used for:

IC test benches
QA inspection
Prototype handling

It is suitable for protecting a wide range of IC packages such as QFN, BGA, QFP, SOP, and other semiconductor devices.

Advantages:

Using a waffle pack lid together with a waffle tray significantly improves device protection and operational efficiency. The cover helps maintain component alignment, reduces handling risks, and ensures safe transportation of sensitive semiconductor products.

The design is compatible with standard semiconductor packaging workflows, making it an essential accessory for IC handling systems.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Factory-direct manufacturer of JEDEC & IC trays
JEDEC compliant, automation-compatible designs
OEM & ODM customization supported
Consistent quality and stable supply
Trusted by global semiconductor customers
