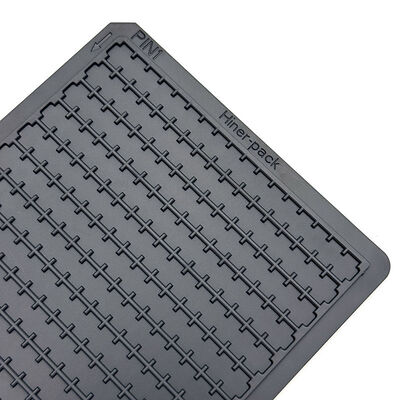

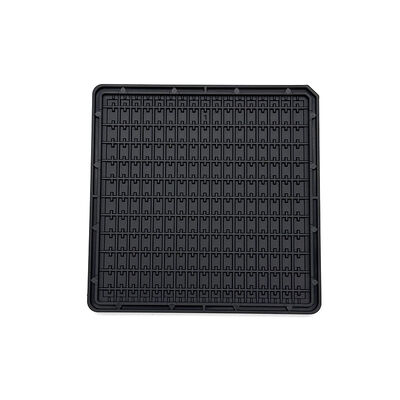

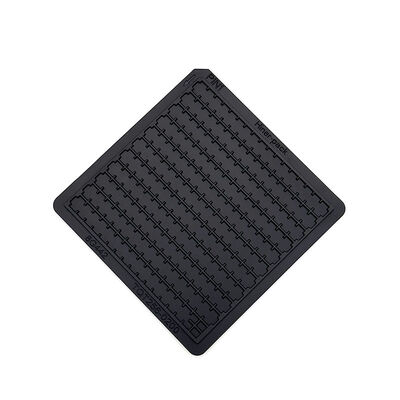

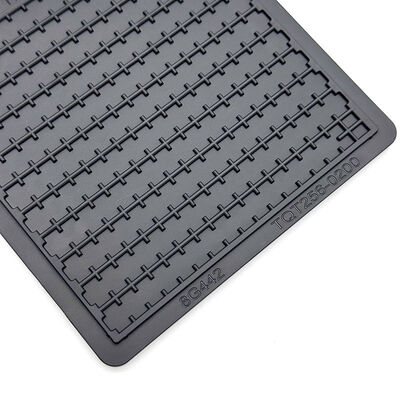

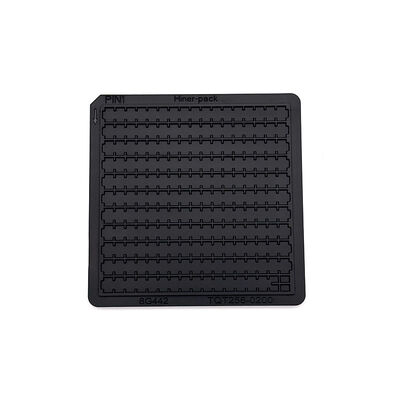

Lightweight 4-inch ESD Safe Waffle Pack Tray For IC And Semiconductor Handling

Name: Lightweight 4-inch ESD Safe Waffle Pack Tray For IC And Semiconductor Handling
Brand: Shenzhen Hiner Technology Co., Ltd.
SKU: HN25176
Price: 1.35 USD
Availability: InStock

Brand Name:	Hiner-pack
Model Number:	HN25176
MOQ:	500pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	100% Prepayment
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO

Matrix:

17X11-2＝185PCS

Humidity Resistance:

Up To 90%

Cavity Size:

6.2x3.4x1.23mm

Weight Capacity:

Varies, Typically Up To 500 Grams Per Cavity

Uv Resistance:

Yes

Warpage:

Less Than 0.76mm

Reusability:

Yes

Application:

IC Handling, Storage, And Shipping

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Highlight:

lightweight 4-inch waffle tray

waffle pack chip tray

4-inch waffle pack tray

Product Description

Lightweight 4-inch Waffle Pack Tray

Lightweight 4-inch waffle pack tray designed for quick and easy manual handling while maintaining ESD protection.

Key Features/ Benefits

Lightweight design
ESD safe
Easy handling
Broad package compatibility

Specifications

Brand		Hiner-pack
Model		HN25176
Material		Electrostatic dissipative plastic
Compatibility		Class 1000 / ISO 5 environments
Color		Black
Surface Resistivity		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		101.6x101.6x5.5 mm
Pocket Size		6.2x3.4x1.23mm
Matrix QTY		17X11-2＝185PCS
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Certifications		RoHS, ISO

Applications

Manual test benches
Quick staging
Light transport

Customization:

The tray’s flexible design supports a wide range of customized configurations to meet specific production challenges:

• Tailored Pocket Layouts: Adjust pocket size, count, or spacing to match non-standard part dimensions or shapes.

• Color Coding Options: Use ESD-safe materials in selected colors for identifying product types, workstations, or production phases.

• In-Mold Marking: Add customer-specific identifiers or tracking features during manufacturing for clear and permanent identification.

• Specialized Alignment Features: Modify edges or add tool-specific indexing tabs to optimize performance in proprietary handling systems.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Factory-direct manufacturer of JEDEC & IC trays
JEDEC compliant, automation-compatible designs
OEM & ODM customization supported
Consistent quality and stable supply
Trusted by global semiconductor customers
