Custom Stackable JEDEC IC Trays For ESD Protection In Semi Factories

Brand Name:	Hiner-pack
Model Number:	HN24221
MOQ:	500 pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, ISO

Tray Weight:

Varies, Typically Up To 500 Grams Per Cavity

Color:

Usually Black Or Dark Gray For ESD Protection

Quality Assurance:

Delivery Guarantee, Reliable Quality

Cavity Size:

19.0x6.0x2.2 Mm

Incoterms:

EXW, FOB, CIF, DDU, DDP

Mold Type:

Injection

Reusable:

Yes

Tray Shape:

Rectangular

Clean Class:

General And Ultrasonic Cleaning

Ic Type:

BGA,QFP,QFN,LGA,PGA

Packing Level:

Transport Package

Flatness:

Less Than 0.76mm

Capacity:

11x12=132 PCS

Packaging Details:

CARTON, PALLET

Supply Ability:

2000PCS/Day

Highlight:

ESD safe JEDEC IC tray

JEDEC tray for IC testing

IC packaging JEDEC tray

Product Description

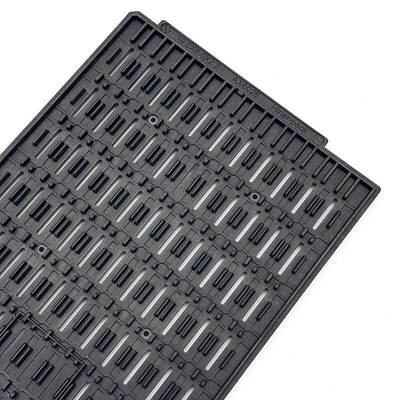

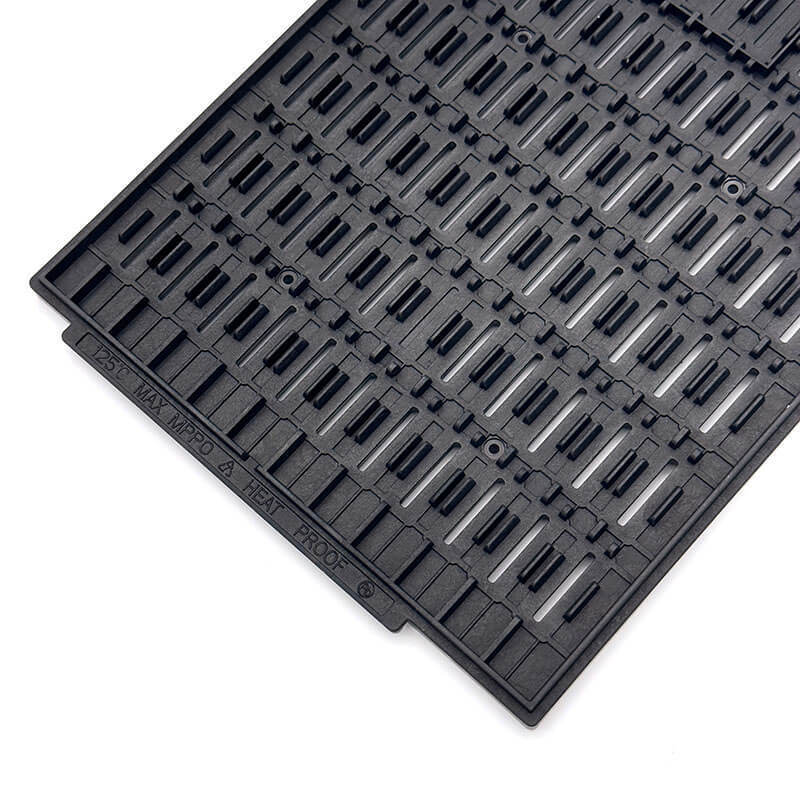

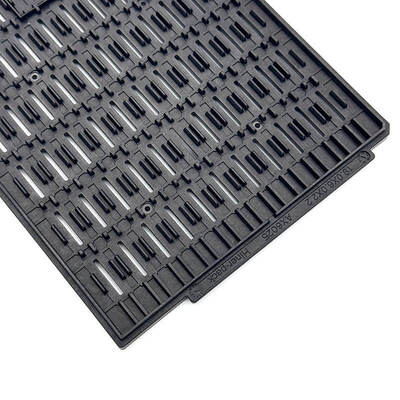

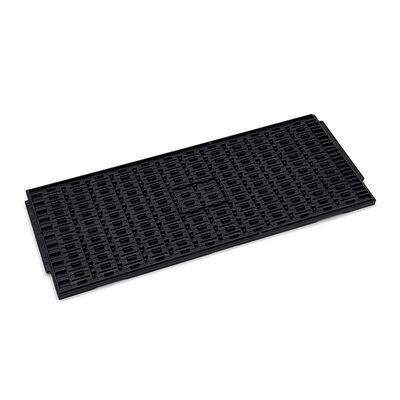

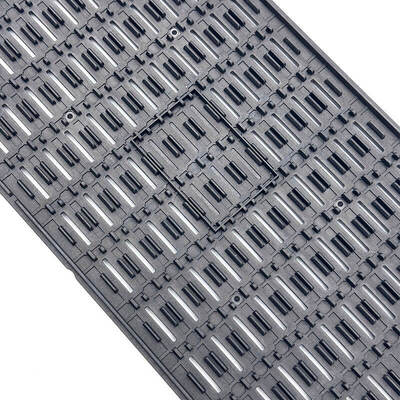

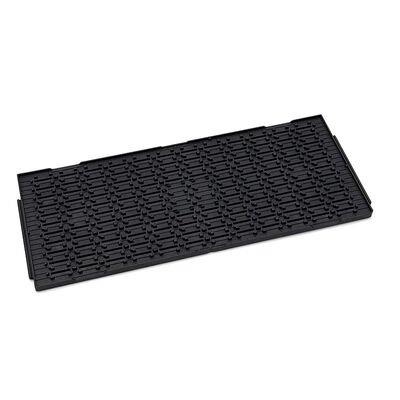

Custom Stackable JEDEC IC Trays For ESD Protection In Semi Factories

Worried about static damage to your sensitive IC chips? This custom JEDEC tray is specially designed for static-sensitive semiconductor devices. It provides steady and reliable ESD protection for chips on semi factory production lines.

Want to save more workshop storage space? This JEDEC tray comes with a stable stackable structure. It can be stacked neatly and safely, which greatly improves your overall space utilization efficiency.

Looking for durable conductive chip trays? This JEDEC tray is made of high-performance conductive MPPO material. It fully protects sensitive IC components during handling, storage and automated testing processes.

Key Features/ Benefits

Stackable IC Tray
ESD Protection Tray
High Precision & Low Warpage
Strong & Durable Structure
Anti-static Semiconductor Tray

Specifications

Brand		Hiner-pack
Model		HN24221
Material		MPPO
Package Type		JEDEC
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		322.6×135.9×7.62 mm
Cavity Size		19.0x6.0x2.2 mm
Matrix QTY		11x12=132 PCS
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

JEDEC trays deliver complete reliable protection for ESD-sensitive semiconductor IC chips. They are widely used in the whole chain of IC manufacturing, packaging, assembly, testing, storage and logistics transportation.

FBGA / BGA / QFN / SOP IC packaging
Semiconductor assembly & testing
Cleanroom handling environments
IC shipping & logistics

Packaging & Shipping/ Services

JEDEC Matrix Trays are packaged in durable, anti-static materials with secure stacking and cushioning inserts. Customized packaging solutions are available upon request. All shipments are tracked and handled by trusted carriers for reliable worldwide delivery.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / waffle pack trays
In-house mold design capability
Fast prototype development
Professional engineering team
Stable supply for global semiconductor customers
