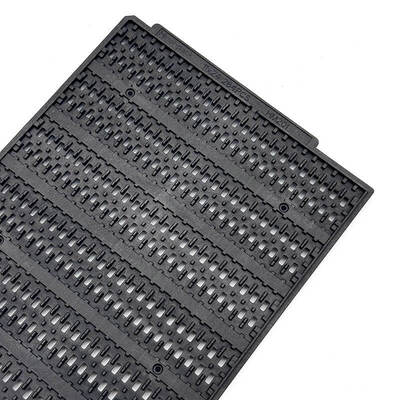

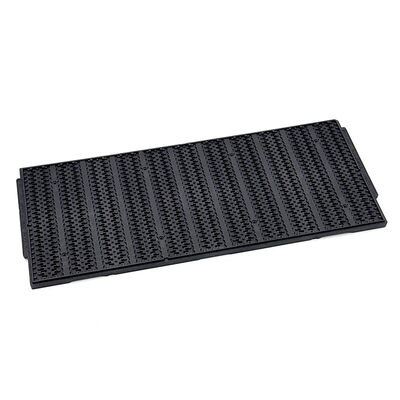

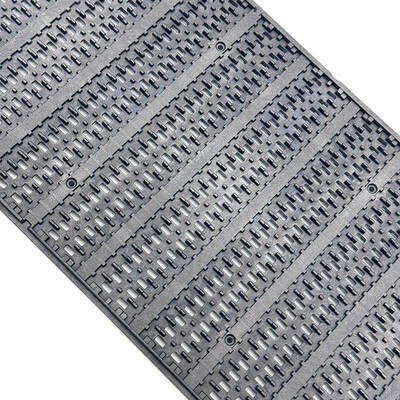

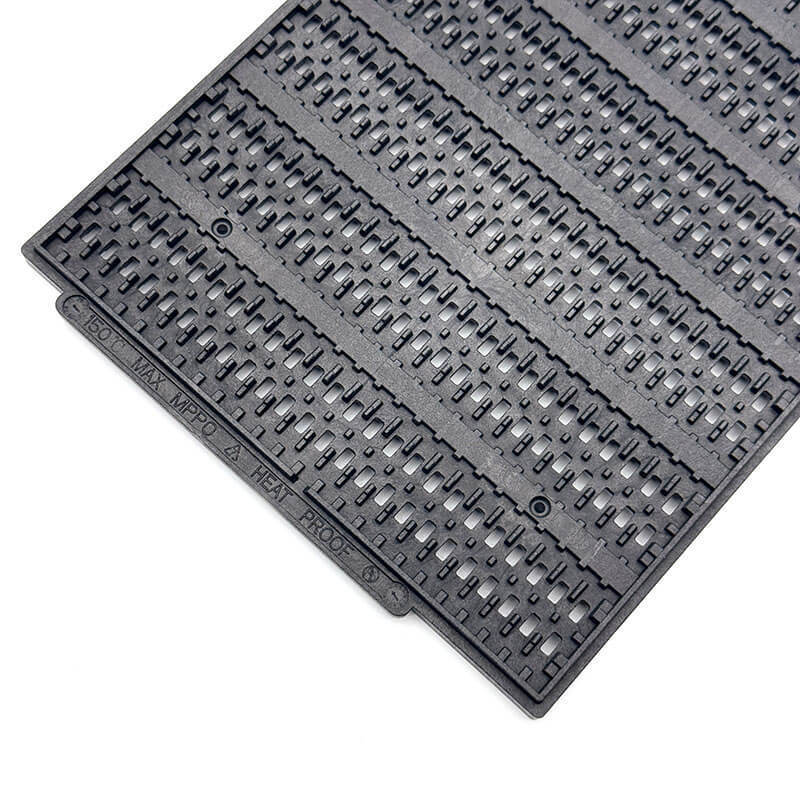

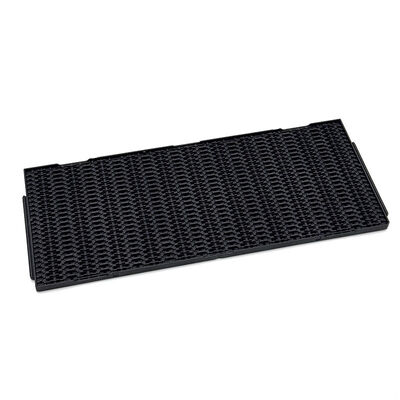

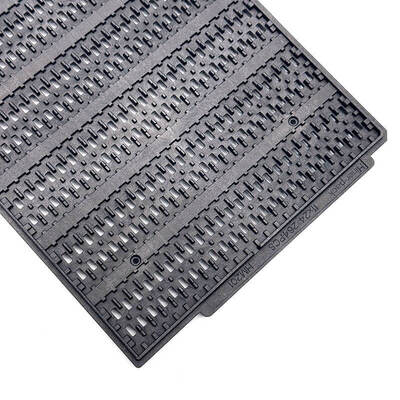

Specialized JEDEC IC Trays For Wafer Level Packaging & Clean IC Protection

Brand Name:	Hiner-pack
Model Number:	HN24227
MOQ:	500 pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, ISO

Tray Weight:

Varies, Typically Up To 500 Grams Per Cavity

Color:

Usually Black Or Dark Gray For ESD Protection

Quality Assurance:

Delivery Guarantee, Reliable Quality

Cavity Size:

20.36x3.3x1.89 Mm

Incoterms:

EXW, FOB, CIF, DDU, DDP

Mold Type:

Injection

Reusable:

Yes

Tray Shape:

Rectangular

Clean Class:

General And Ultrasonic Cleaning

Ic Type:

BGA,QFP,QFN,LGA,PGA

Packing Level:

Transport Package

Flatness:

Less Than 0.76mm

Capacity:

11x14=264 PCS

Packaging Details:

CARTON, PALLET

Supply Ability:

2000PCS/Day

Highlight:

JEDEC wafer tray for cleanroom

IC packaging JEDEC tray

wafer level packaging tray

Product Description

Specialized JEDEC IC Trays For Wafer Level Packaging & Clean IC Protection

Specialized JEDEC IC Trays perfectly fit semiconductor wafer level packaging production. They adapt well to high-standard cleanroom environments, and effectively reduce dust contamination to protect chip integrity.

Ultra-low particle generation performance keeps inner working conditions clean. They maintain stable performance for IC components during whole wafer processing procedures.

Reliable ESD anti-static protection is equipped for daily use. Custom cavity designs are also available, making them ideal choices for cleanroom wafer level packaging work.

Key Features/ Benefits

Ultra Low Particle Generation
Cleanroom Wafer Level Compatibility
Stable ESD Anti-Static Protection
Custom Cavity Pocket
Design Reliable IC Chip Protection

Specifications

Brand		Hiner-pack
Model		HN24227
Material		PPE
Package Type		JEDEC
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		322.6×135.9×10.6 mm
Cavity Size		20.36x3.3x1.89 mm
Matrix QTY		11x14=264 PCS
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

JEDEC trays offer complete chip protection throughout semiconductor manufacturing and transportation processes. They are highly suitable for ESD-sensitive semiconductor devices used in strict cleanroom environments.

JEDEC trays are widely applied to wafer-level packaging processing, cleanroom chip handling operations and daily production in semiconductor manufacturing factories.

Wafer-level packaging

Ultra Low Particle Generation
Cleanroom Wafer Level Compatibility
Stable ESD Anti-Static Protection
Custom Cavity Pocket Design
High Reliable Chip Protection

Packaging & Shipping/ Services

JEDEC Matrix Trays are packaged in durable, anti-static materials with secure stacking and cushioning inserts. Customized packaging solutions are available upon request. All shipments are tracked and handled by trusted carriers for reliable worldwide delivery.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / waffle pack trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
