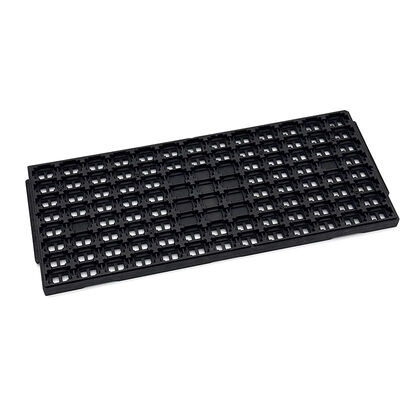

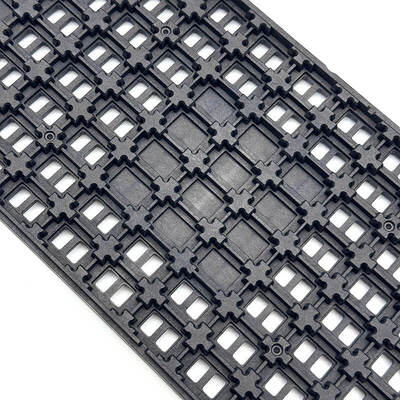

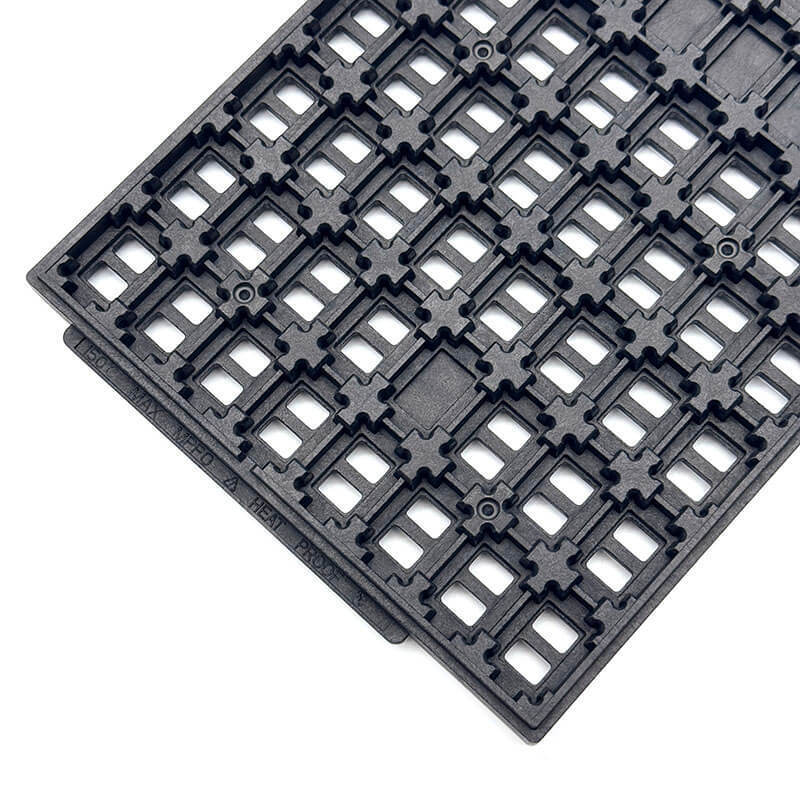

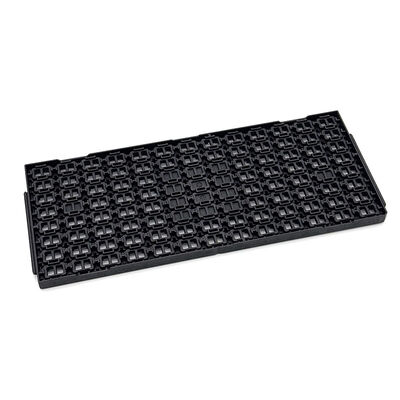

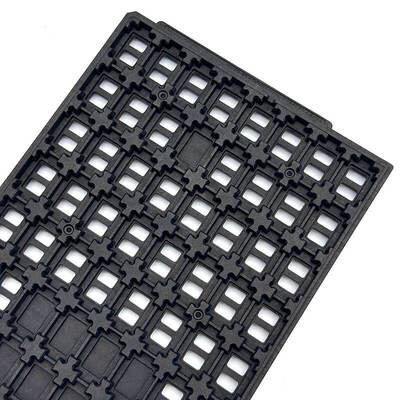

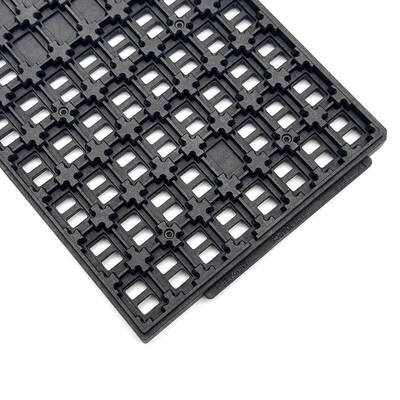

High-precision JEDEC trays protect ICs from contamination and damage

Brand Name:	Hiner-pack
Model Number:	HN24234
MOQ:	500 pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, ISO

Tray Weight:

Varies, Typically Up To 500 Grams Per Cavity

Color:

Usually Black Or Dark Gray For ESD Protection

Quality Assurance:

Delivery Guarantee, Reliable Quality

Cavity Size:

17x10.5x5.17 Mm

Incoterms:

EXW, FOB, CIF, DDU, DDP

Mold Type:

Injection

Reusable:

Yes

Tray Shape:

Rectangular

Clean Class:

General And Ultrasonic Cleaning

Ic Type:

BGA,QFP,QFN,LGA,PGA

Packing Level:

Transport Package

Flatness:

Less Than 0.76mm

Capacity:

8x13=104 PCS

Packaging Details:

CARTON, PALLET

Supply Ability:

2000PCS/Day

Highlight:

BGA JEDEC tray with V groove

CSP IC tray for precision protection

JEDEC IC tray with V groove

Product Description

High-precision JEDEC trays protect ICs from contamination and damage

Designed for high-level semiconductor cleanroom environments, these JEDEC trays are engineered to meet strict contamination control requirements, minimizing particle buildup and ensuring full IC integrity from production to delivery.

Built with high-precision cavities and a secure V-groove structure, they prevent chip movement, scratches, and mechanical damage, even during high-volume manufacturing, handling, and long-distance transport.

Ideal for fine-pitch ICs, BGA, and CSP packages, these trays deliver reliable protection, reduce yield loss risks, and support consistent quality in sensitive semiconductor applications.

Key Features/ Benefits

Anti-static
ESD-safe
Contamination-free
Low-particle
High-precision

Specifications

Brand		Hiner-pack
Model		HN24234
Material		MPPO
Package Type		JEDEC
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		322.6×135.9×12.19 mm
Cavity Size		17x10.5x5.17 mm
Matrix QTY		8x13=104 PCS
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

JEDEC trays are widely used for IC protection during manufacturing and transport, especially for ESD-sensitive devices.They are especially suitable for handling and storing ESD-sensitive components, where even minor particle buildup or scratches can impact device performance and yield.

Semiconductor manufacturing & assembly
BGA / CSP packages
Fine pitch IC
Safe component transport and storage

Packaging & Shipping/ Services

Our JEDEC matrix trays are carefully packaged to ensure they arrive in perfect condition, ready for use in your cleanroom and production environments. Each set is securely wrapped in durable, anti-static materials, with protective stacking layers and cushioning inserts to prevent scratches, contamination, and damage during transit.

For global delivery, we work with trusted logistics partners to provide reliable, tracked shipping services worldwide. Whether you need standard lead-time delivery or expedited shipments, we ensure your order is handled with care and delivered on schedule, so you can keep your production lines running without delays.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / waffle pack trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
