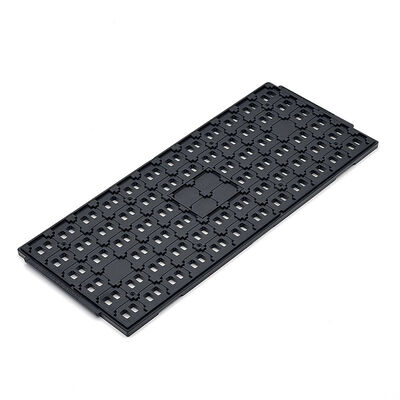

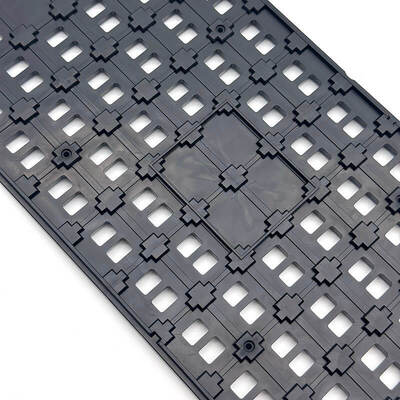

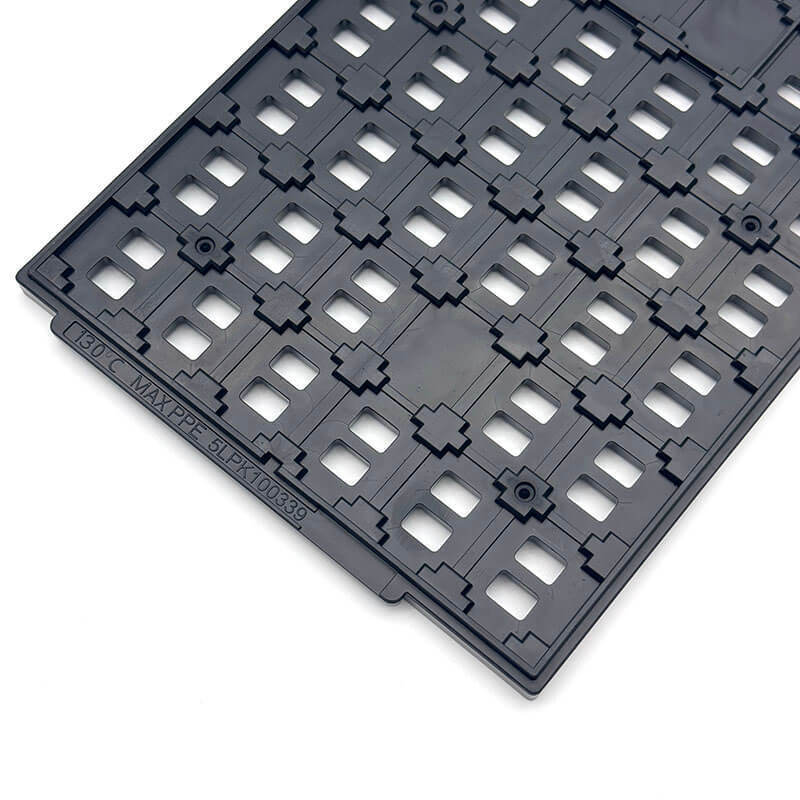

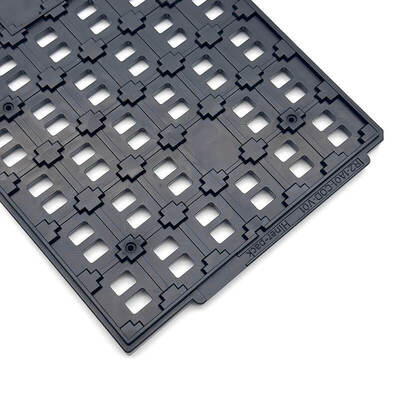

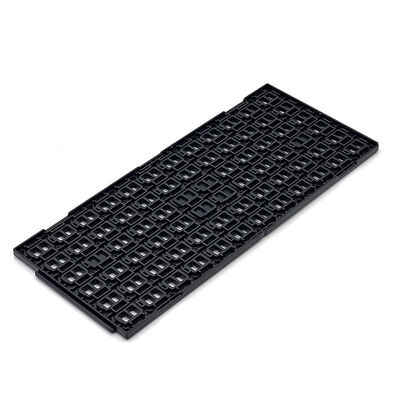

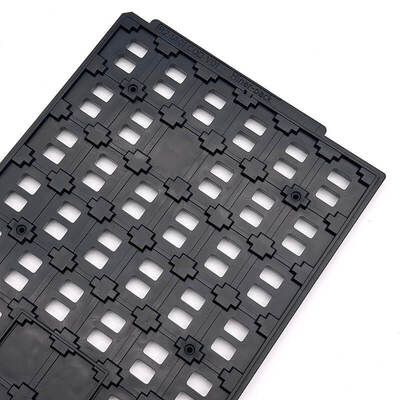

Durable JEDEC IC Trays for Wafer Safety and Clean Environments

Brand Name:	Hiner-pack
Model Number:	HN25015
MOQ:	500 pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, ISO

Tray Weight:

Varies, Typically Up To 500 Grams Per Cavity

Color:

Black

Quality Assurance:

Delivery Guarantee, Reliable Quality

Cavity Size:

322.6×135.9×8.35 Mm

Incoterms:

EXW, FOB, CIF, DDU, DDP

Mold Type:

Injection

Reusable:

Yes

Tray Shape:

Rectangular

Clean Class:

General And Ultrasonic Cleaning

Ic Type:

BGA,QFP,QFN,LGA,PGA

Packing Level:

Transport Package

Flatness:

Less Than 0.76mm

Capacity:

12X6=72 PCS

Packaging Details:

CARTON, PALLET

Supply Ability:

2000PCS/Day

Product Description

Durable JEDEC IC Trays for Wafer Safety and Clean Environments

Shield delicate semiconductor wafers in clean production environments. Provide reliable structural integrity to prevent component damage. Resist high temperatures up to 130°C for stable industrial performance. Seeking trusted tray solutions for secure wafer handling?

Fit automated production lines and cleanroom operations perfectly. Perform steadily in wafer transfer and storage procedures. Adapt to diverse semiconductor manufacturing workflows smoothly.

Support fully customized cavity sizes and layout designs. Comply with industry standards for clean production. Deliver tailored solutions that meet unique semiconductor manufacturing requirements.

Key Features/ Benefits

Sturdy structural integrity
Effective dust prevention
Clean production compatibility
Reliable wafer protection
Custom cavity & layout design

Specifications

Brand		Hiner-pack
Model		HN25015
Material		PPE
Package Type		JEDEC
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		322.6×135.9×8.35 mm
Cavity Size		13×20.5×1.26 mm
Matrix QTY		12X6=72 PCS
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

Serve semiconductor wafer handling, high-temperature assembly, cleanroom production, and component storage operations. Adapt to automated manufacturing lines, cleanroom Class 100/1000 environments, and precision assembly system

Also utilized in inter-factory wafer transfer, third-party testing services, and finished device inventory management. Cater to integrated device manufacturers, semiconductor foundries, and clean production facilities.

Customized Services

Provide tailored customization for JEDEC IC trays. Work closely with clients to define cavity pitch, pocket depth, and structural reinforcements for specific wafer types. Develop high-temperature resistant PPE material variants to meet 130°C process needs. Validate prototypes through vibration and temperature cycling tests, delivering personalized tray solutions that enhance clean production efficiency and protect wafers throughout manufacturing.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / waffle pack trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
